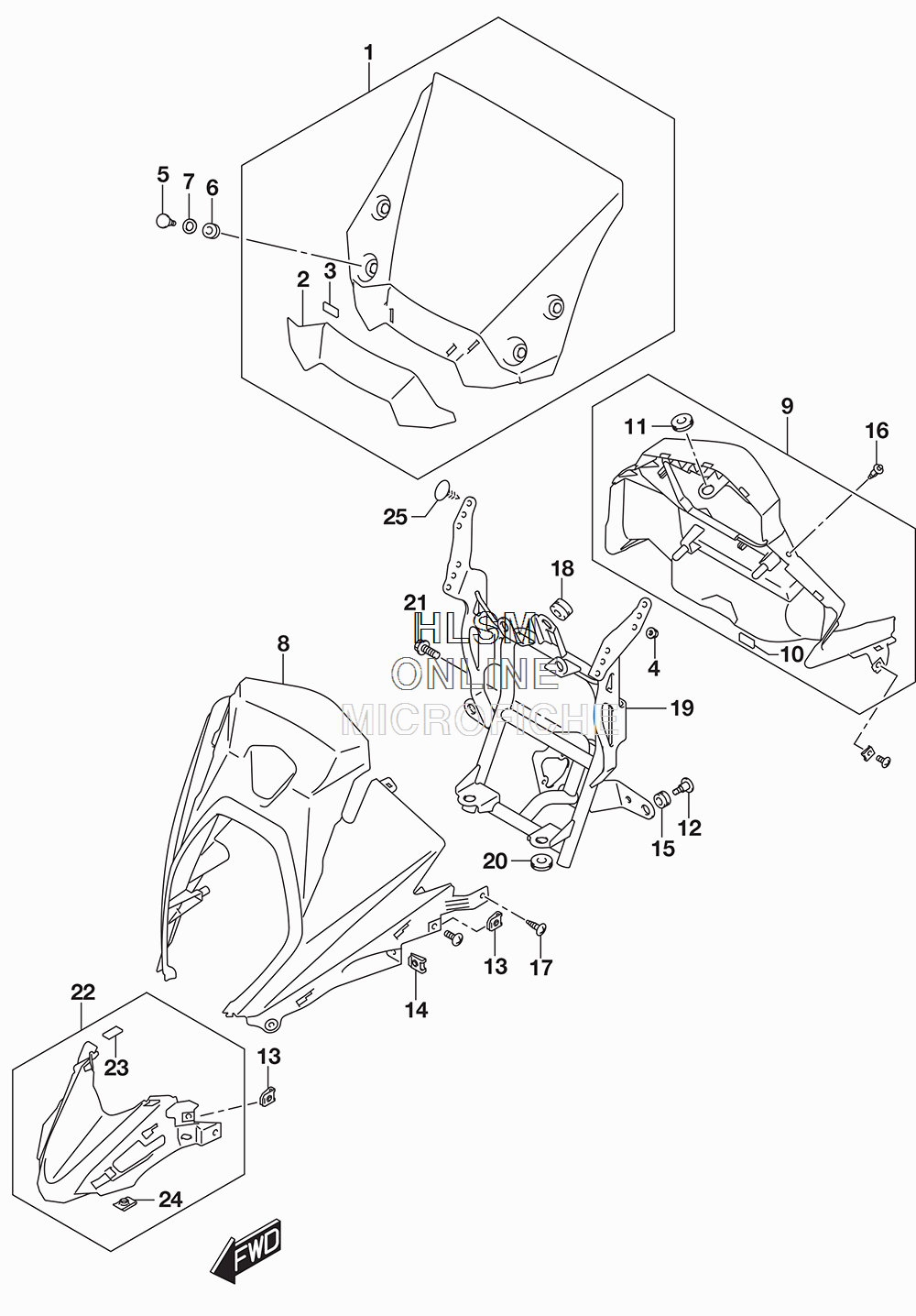

COWLING BODY для Suzuki V-STORM 650XT [DL650XA] - 2017 года выпуска
-
№АртикулНазвание
-
148410-28K00 WINDSCREENWINDSCREEN
-
248412-28K00 ...COVER, WINDSCREEN...COVER, WINDSCREEN
-
373415-70A00 ...CUSHION, WINDSCREEN...CUSHION, WINDSCREEN
-
448414-31J00 CAP, WINDSCREEN SCREWCAP, WINDSCREEN SCREW
-
509139-06211 SCREWSCREW
-
609320-09016 CUSHIONCUSHION
-
708322-0110B WASHERWASHER
-
894411-28K00 COWLING, BODYCOWLING, BODY
-
994630-28K00 PANEL, METERPANEL, METER
-
1073415-70A00 ...CUSHION, PANEL METER NO.2...CUSHION, PANEL METER NO.2
-
1109320-08028 ...CUSHION...CUSHION
-
1209139-06126 SCREW (6X20)SCREW (6X20)
-
1309148-05038 NUTNUT
-
1409148-06020 NUTNUT
-
1509320-09016 CUSHIONCUSHION
-
1609409-06314-5PK CLIP (BLACK)CLIP (BLACK)
-
1703541-0512A SCREWSCREW
-
1834189-08J00 CUSHION, BRACE & MTRCUSHION, BRACE & MTR
-
1994510-28K00 BRACE, COWLINGBRACE, COWLING
-
2009320-08028 CUSHIONCUSHION
-
2101550-0820A BOLTBOLT
-
2294402-28K00-YKV COWLING, BODY LOWER (BLACK)COWLING, BODY LOWER (BLACK)
-
2373415-70A00 ...CUSHION, BODY COWL LOWER...CUSHION, BODY COWL LOWER
-
2409148-05052 ...NUT...NUT
-
2509409-10304 CLIPCLIP
