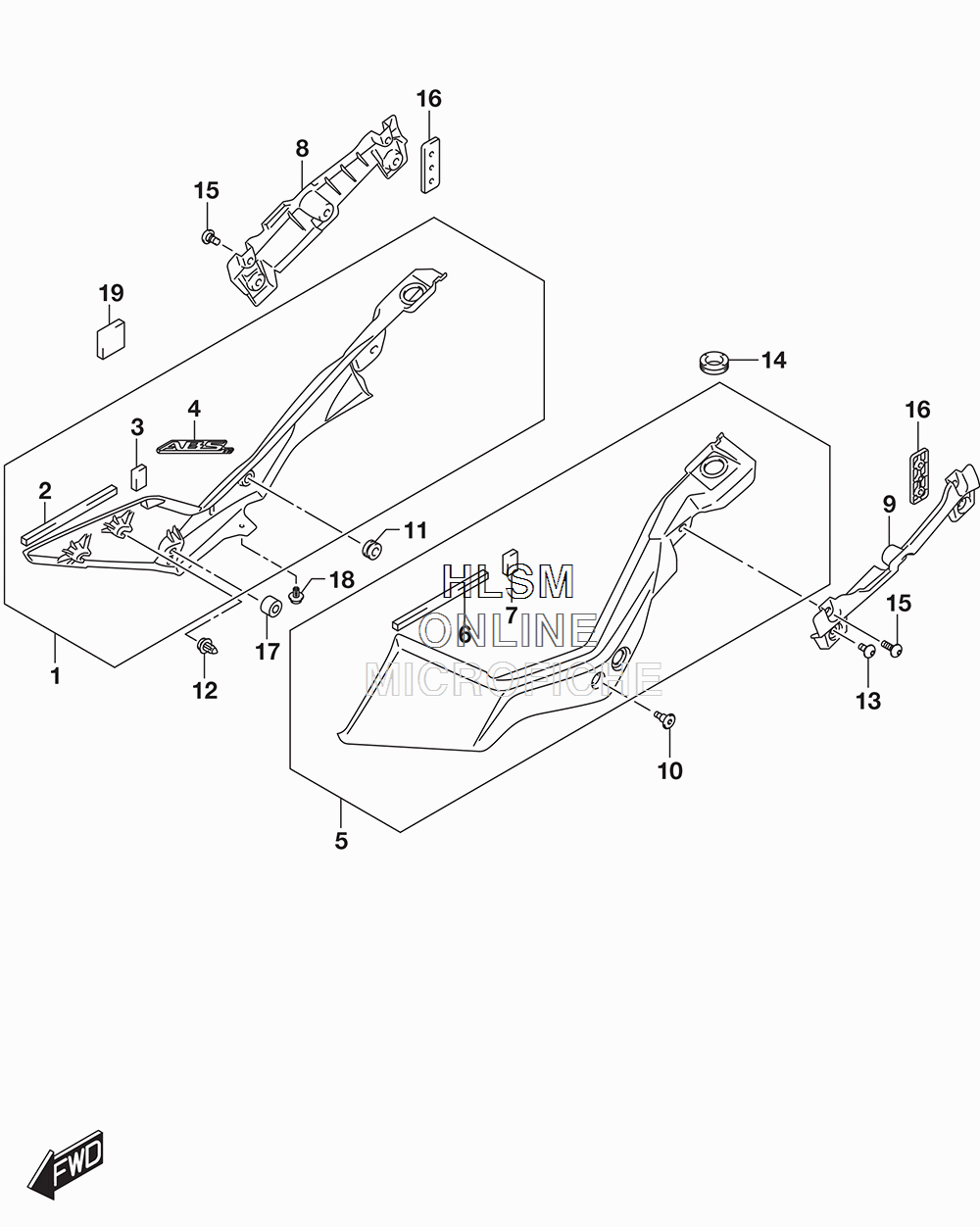

SIDE COVER для Suzuki V-STORM 650XT [DL650XA] - 2017 года выпуска
-
№АртикулНазвание
-
147110-28K00-GWM COVER, FRAME RIGHT HAND (GRAY/BLACK)COVER, FRAME RIGHT HAND (GRAY/BLACK)
-
247121-28K00 ...CUSHION, FRAME COVER FRONT FRONT...CUSHION, FRAME COVER FRONT FRONT
-
347122-28K00 ...CUSHION, FRAME COVER FRONT REAR...CUSHION, FRAME COVER FRONT REAR
-
468131-28K00-GWM ...EMBLEM,"ABS" (GRAY/BLACK)...EMBLEM,"ABS" (GRAY/BLACK)
-
547210-28K00 COVER, FRAME LEFT HANDCOVER, FRAME LEFT HAND
-
647121-28K00 ...CUSHION, FRAME COVER FRONT FONT...CUSHION, FRAME COVER FRONT FONT
-
747122-28K00 ...CUSHION, FRAME COVER FRONT REAR...CUSHION, FRAME COVER FRONT REAR
-
847411-31J10 COVER, FRAME REAR RIGHT HANDCOVER, FRAME REAR RIGHT HAND
-
947511-31J10 COVER, FRAME REAR LEFT HANDCOVER, FRAME REAR LEFT HAND
-
1009139-06211 SCREWSCREW
-
1109320-09016 CUSHIONCUSHION
-
1209409-10313 CLIPCLIP
-
1347913-31J00 SCREWSCREW
-
1409320-20010 CUSHIONCUSHION
-
1509139-06120 SCREW (6X16)SCREW (6X16)
-
1647510-28K00 SPACER, FRAME COVERSPACER, FRAME COVER
-
1709321-10001 CUSHIONCUSHION
-
1809409-06328 CLIPCLIP
-
1947123-28K00 CUSHION, FRAME COVERCUSHION, FRAME COVER
