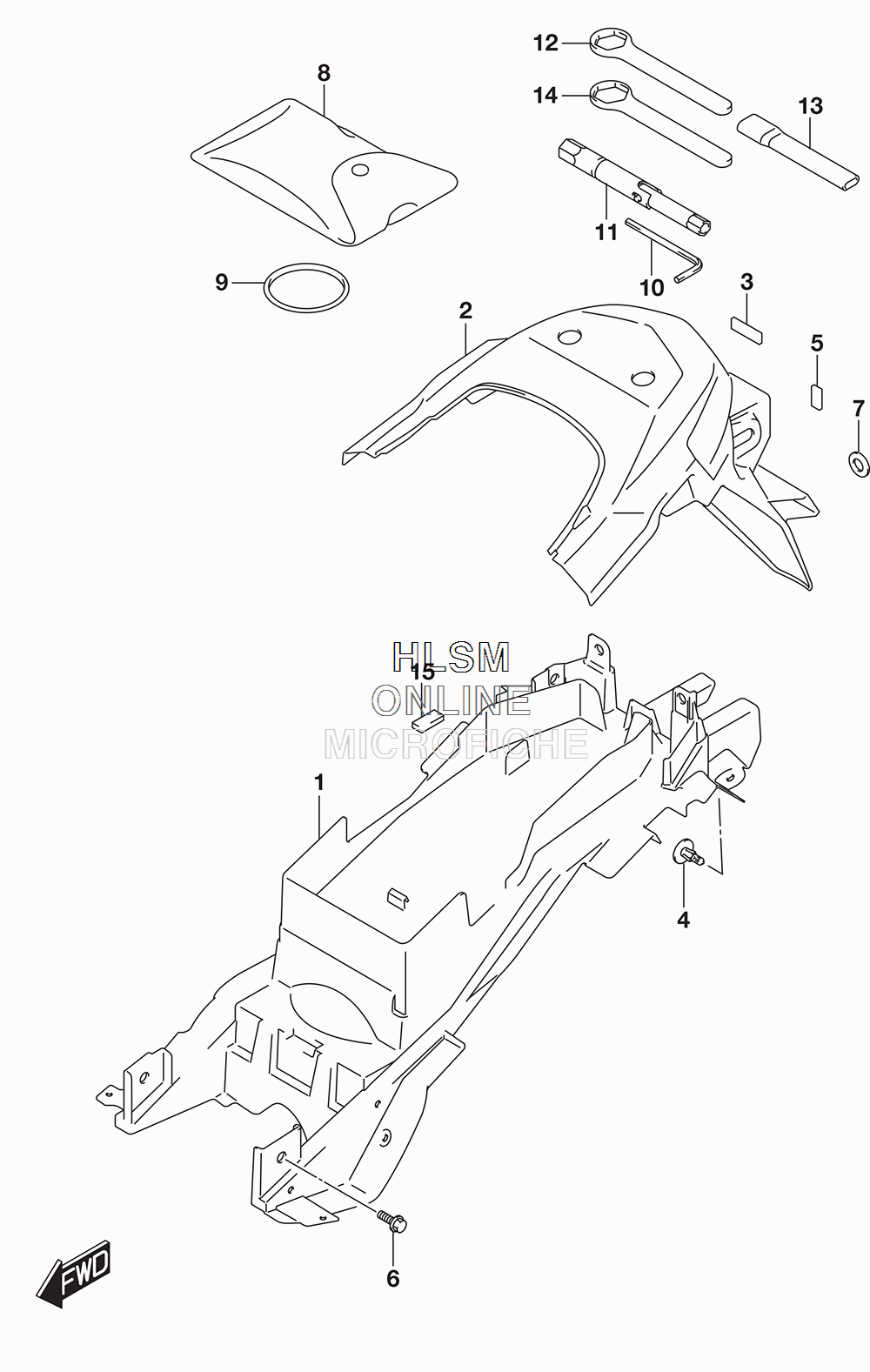

FENDER - REAR для Suzuki V-STORM 650XT [DL650XA] - 2017 года выпуска
-
№АртикулНазвание
-
163111-28K00 FENDER, REAR FRONTFENDER, REAR FRONT
-
263112-28K00 FENDER, REAR REARFENDER, REAR REAR
-
333652-47F00 CUSHION, REAR FENDERCUSHION, REAR FENDER
-
494479-35F00 CLIP, REAR FENDERCLIP, REAR FENDER
-
594612-31F00 CUSHION, FENDER REAR REARCUSHION, FENDER REAR REAR
-
609116-06181 BOLT (6X13)BOLT (6X13)
-
708322-0106B WASHERWASHER
-
809800-21055 TOOL ASSYTOOL ASSY
-
909280-63003 O RING (D:3.5,ID:62.6)O RING (D:3.5,ID:62.6)
-
1009816-00059 HEXAGON SPANNER, 5HEXAGON SPANNER, 5
-
1109816-00149 BOX, SPANNERBOX, SPANNER
-
1209817-00035 RING SPANNER (22)RING SPANNER (22)
-
1309817-00037 HANDLE, RING SPANNERHANDLE, RING SPANNER
-
1409817-00039 RING, SPANNER (24)RING, SPANNER (24)
-
1594633-31J00 CUSHIONCUSHION
