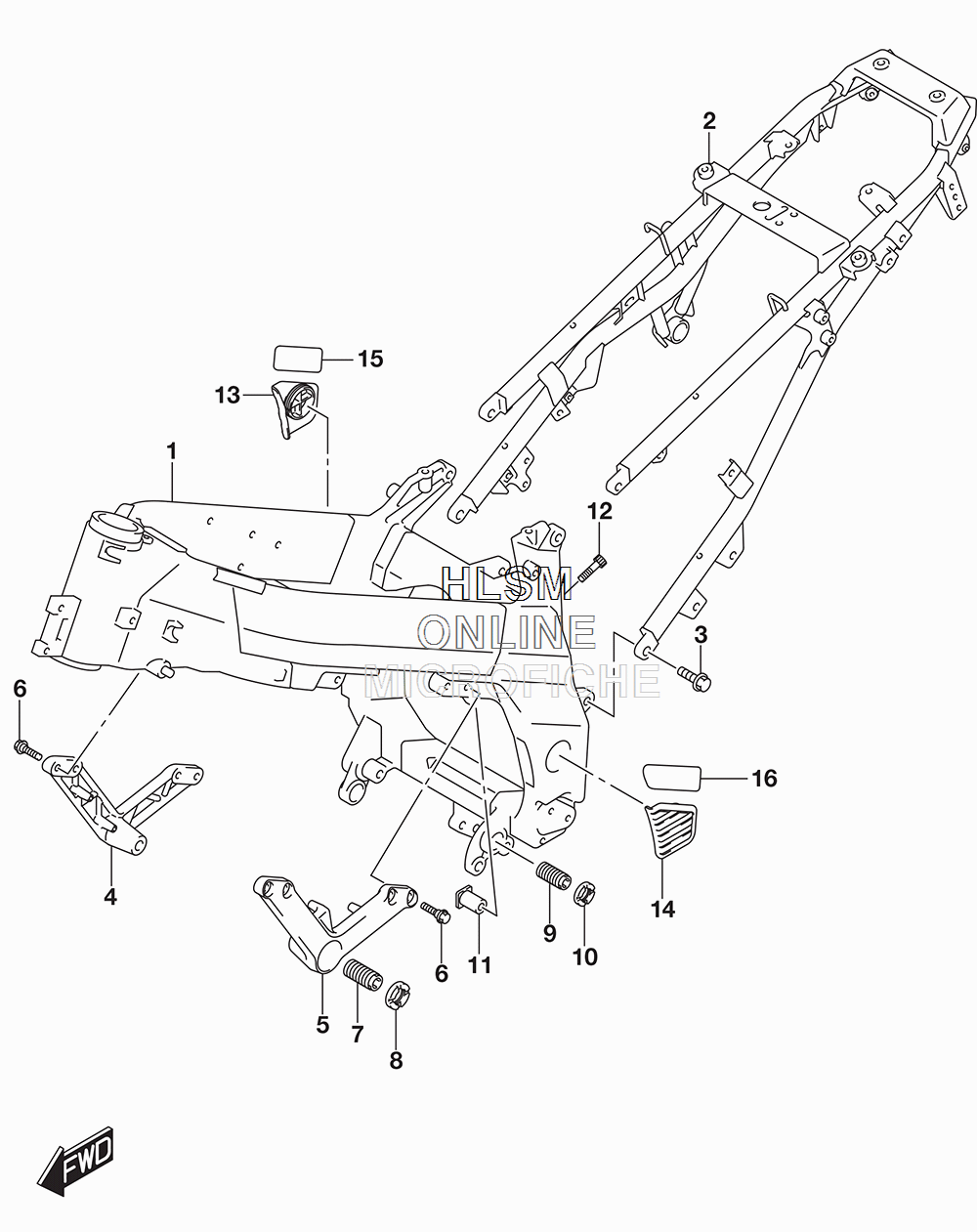

FRAME для Suzuki V-STORM 650XT [DL650XA] - 2017 года выпуска
-
№АртикулНазвание
-
141100-27G90-YAP FRAME (BLACK)FRAME (BLACK)
-
241200-28K00 RAIL, SEATRAIL, SEAT
-
309103-10379 BOLT (10X30)BOLT (10X30)
-
441911-06G90-YAP BRACKET, MOUNT RIGHT HAND (BLACK)BRACKET, MOUNT RIGHT HAND (BLACK)
-
541912-06G90-YAP BRACKET, MOUNT LEFT HAND (BLACK)BRACKET, MOUNT LEFT HAND (BLACK)
-
609106-08193 BOLT (8X30)BOLT (8X30)
-
741923-16G00 BOLT, ADJUSTER CENTERBOLT, ADJUSTER CENTER
-
841922-19F20 NUT, ADJUSTER CENTERNUT, ADJUSTER CENTER
-
941921-16G00 BOLT, ADJUSTER LOWERBOLT, ADJUSTER LOWER
-
1041922-33E20 NUT, ADJUSTER LOWERNUT, ADJUSTER LOWER
-
1141941-19F01 SPACER, ADJUSTER UPPERSPACER, ADJUSTER UPPER
-
1209106-08168 BOLT (8X38)BOLT (8X38)
-
1343585-27G10 COVER, PIVOT RIGHT HANDCOVER, PIVOT RIGHT HAND
-
1443595-27G00 COVER, PIVOT LEFT HANDCOVER, PIVOT LEFT HAND
-
1543585-28K00 TAPE, FRAME PIVOT, RIGHT HANDTAPE, FRAME PIVOT, RIGHT HAND
-
1643595-28K00 TAPE, FRAME PIVOT, LEFT HANDTAPE, FRAME PIVOT, LEFT HAND
