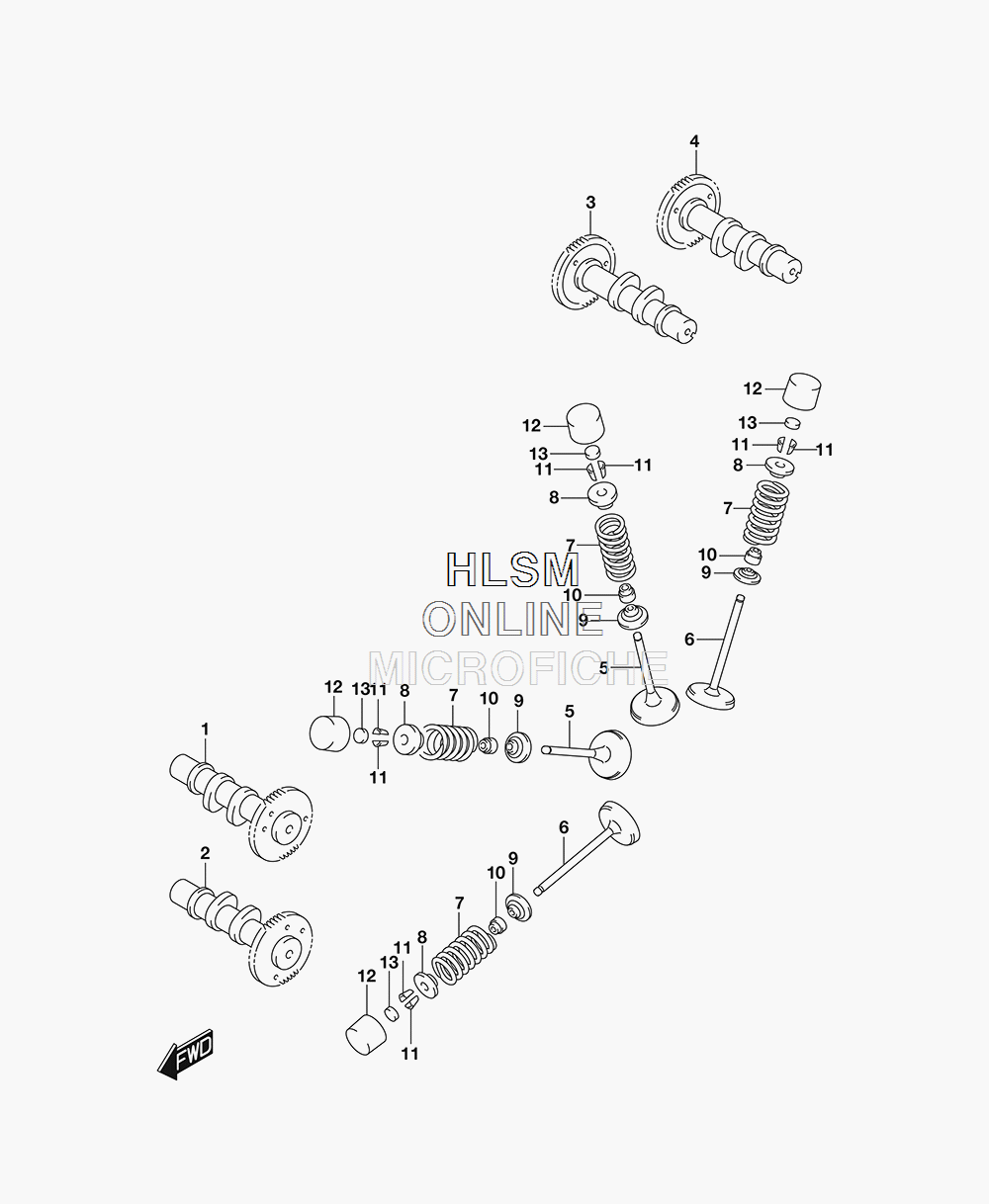

CAMSHAFT W/ VALVES для Suzuki DL650A V-STORM 650 - 2018 года выпуска
-
№АртикулНазвание
-
112710-11J00 CAMSHAFT, INTAKE FRONT (NT:36)CAMSHAFT, INTAKE FRONT (NT:36)
-
212720-44H00 CAMSHAFT, EXHAUST FRONT (NT:36)CAMSHAFT, EXHAUST FRONT (NT:36)
-
312730-11J00 CAMSHAFT, INTAKE REAR (NT:36)CAMSHAFT, INTAKE REAR (NT:36)
-
412740-44H00 CAMSHAFT, EXHAUST REAR (NT:36)CAMSHAFT, EXHAUST REAR (NT:36)
-
512911-18K00 VALVE, INTAKEVALVE, INTAKE
-
612912-18K00 VALVE, EXHAUSTVALVE, EXHAUST
-
712921-44H00 SPRING, VALVESPRING, VALVE
-
812931-17E01 RETAINER, VALVE SPRINGRETAINER, VALVE SPRING
-
912933-17E00 SEAT, VALVE SPRINGSEAT, VALVE SPRING
-
1009289-04002 OIL SEAL (4.5X10X8)OIL SEAL (4.5X10X8)
-
1112932-32C00 COTTER, VALVECOTTER, VALVE
-
1212891-17E00 TAPPETTAPPET
-
13-112892-05C00-120 SHIM, TAPPET (T:1.20)SHIM, TAPPET (T:1.20)
-
13-212892-05C00-125 SHIM, TAPPET (T:1.25)SHIM, TAPPET (T:1.25)
-
13-312892-05C00-130 SHIM, TAPPET (T:1.30)SHIM, TAPPET (T:1.30)
-
13-412892-05C00-135 SHIM, TAPPET (T:1.35)SHIM, TAPPET (T:1.35)
-
13-512892-05C00-140 SHIM, TAPPET (T:1.40)SHIM, TAPPET (T:1.40)
-
13-612892-05C00-145 SHIM, TAPPET (T:1.45)SHIM, TAPPET (T:1.45)
-
13-712892-05C00-150 SHIM, TAPPET (T:1.50)SHIM, TAPPET (T:1.50)
-
13-812892-05C00-155 SHIM, TAPPET (T:1.55)SHIM, TAPPET (T:1.55)
-
13-912892-05C00-160 SHIM, TAPPET (T:1.60)SHIM, TAPPET (T:1.60)
-
13-1012892-05C00-165 SHIM, TAPPET (T:1.65)SHIM, TAPPET (T:1.65)
-
13-1112892-05C00-170 SHIM, TAPPET (T:1.70)SHIM, TAPPET (T:1.70)
-
13-1212892-05C00-175 SHIM, TAPPET (T:1.75, GOLD)SHIM, TAPPET (T:1.75, GOLD)
-
13-1312892-05C00-180 SHIM, TAPPET (T:1.80)SHIM, TAPPET (T:1.80)
-
13-1412892-05C00-185 SHIM, TAPPET (T:1.85)SHIM, TAPPET (T:1.85)
-
13-1512892-05C00-190 SHIM, TAPPET (T:1.90)SHIM, TAPPET (T:1.90)
-
13-1612892-05C00-195 SHIM, TAPPET (T:1.95, BLUE)SHIM, TAPPET (T:1.95, BLUE)
-
13-1712892-05C00-200 SHIM, TAPPET (T:2.00)SHIM, TAPPET (T:2.00)
-
13-1812892-05C00-205 SHIM, TAPPET (T:2.05)SHIM, TAPPET (T:2.05)
-
13-1912892-05C00-210 SHIM, TAPPET (T:2.10)SHIM, TAPPET (T:2.10)
-
13-2012892-05C00-215 SHIM, TAPPET (T:2.15)SHIM, TAPPET (T:2.15)
-
13-2112892-05C00-220 SHIM, TAPPET (T:2.20)SHIM, TAPPET (T:2.20)
-
1412800-05830 SHIM SET, TAPPET (5PCS. EACH) (NOT ILLUSTRATED) (OPT)SHIM SET, TAPPET (5PCS. EACH) (NOT ILLUSTRATED) (OPT)
-
1599000-69491 ...CASE, TAPPET SHIM (NOT ILLUSTRATED) (OPT)...CASE, TAPPET SHIM (NOT ILLUSTRATED) (OPT)
