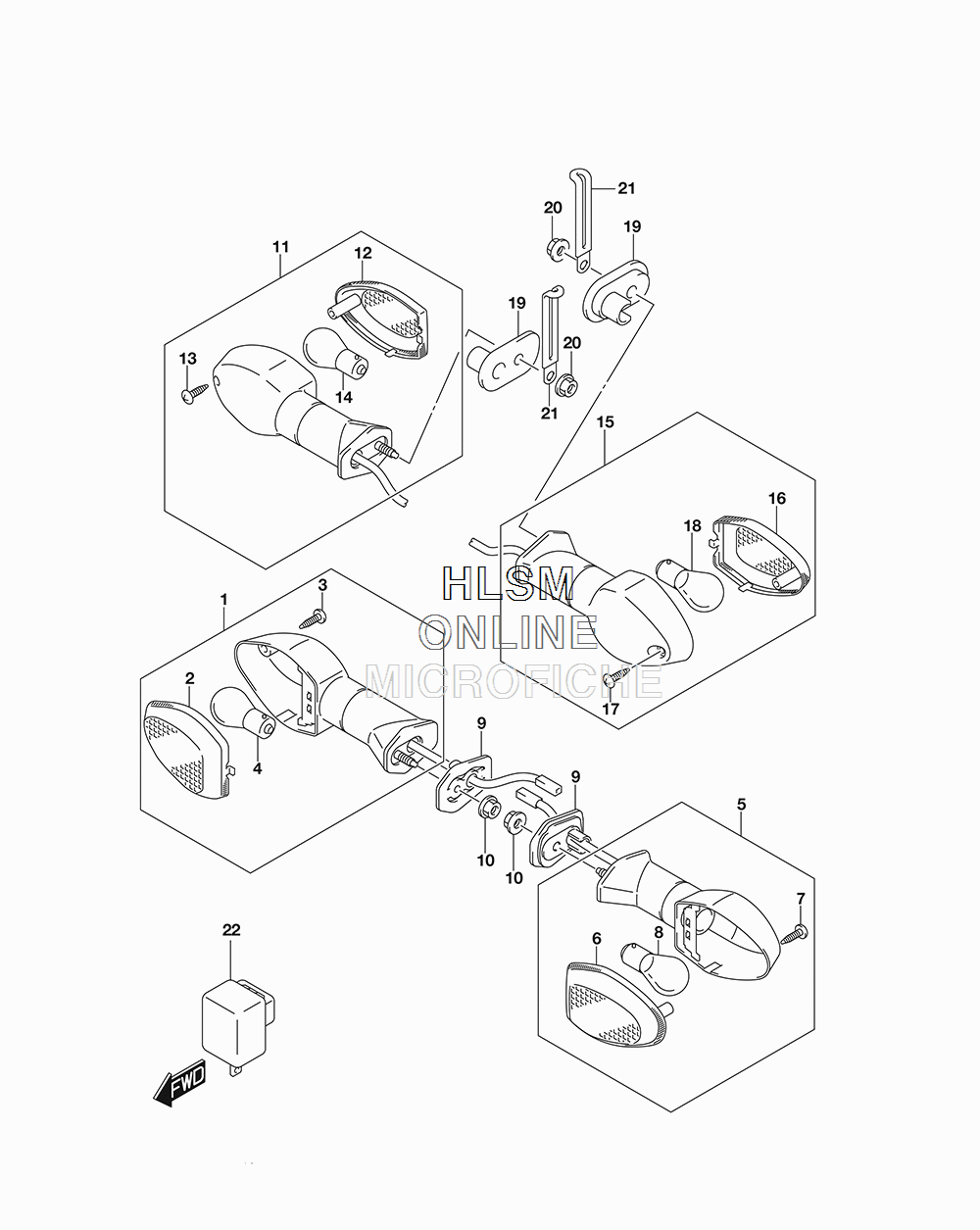

TURNSIGNAL ASSY. для Suzuki DL650A V-STORM 650 - 2018 года выпуска
-
№АртикулНазвание
-
135601-08JA0 LAMP ASSY, FR TURNSIGNAL (RH)LAMP ASSY, FR TURNSIGNAL (RH)
-
235612-08JA0 ...LENS...LENS
-
303211-0414B ...SCREW...SCREW
-
409471-12186 ...BULB (12V21W)...BULB (12V21W)
-
535602-08JA0 LAMP ASSY, FR TURNSIGNAL (LH)LAMP ASSY, FR TURNSIGNAL (LH)
-
635632-08JA0 ...LENS...LENS
-
703211-0414B ...SCREW...SCREW
-
809471-12186 ...BULB (12V21W)...BULB (12V21W)
-
935629-18G00 PLATE, FRONT TURNSIGNALPLATE, FRONT TURNSIGNAL
-
1008316-1005A NUTNUT
-
1135603-08JA0 LAMP ASSY, RR TURNSIGNAL (RH)LAMP ASSY, RR TURNSIGNAL (RH)
-
1235632-08JA0 ...LENS...LENS
-
1303211-0414B ...SCREW...SCREW
-
1409471-12186 ...BULB (12V21W)...BULB (12V21W)
-
1535604-08JA0 LAMP ASSY, RR TURNSIGNAL (LH)LAMP ASSY, RR TURNSIGNAL (LH)
-
1635612-08JA0 ...LENS...LENS
-
1703211-0414B ...SCREW...SCREW
-
1809471-12186 ...BULB (12V21W)...BULB (12V21W)
-
1935629-31F40 PLATE, TURNSIGNALPLATE, TURNSIGNAL
-
2008316-1005A NUTNUT
-
2109404-06429 CLAMP (L:45)CLAMP (L:45)
-
2238610-06F00 RELAY ASSY, TURNSIGNALRELAY ASSY, TURNSIGNAL
