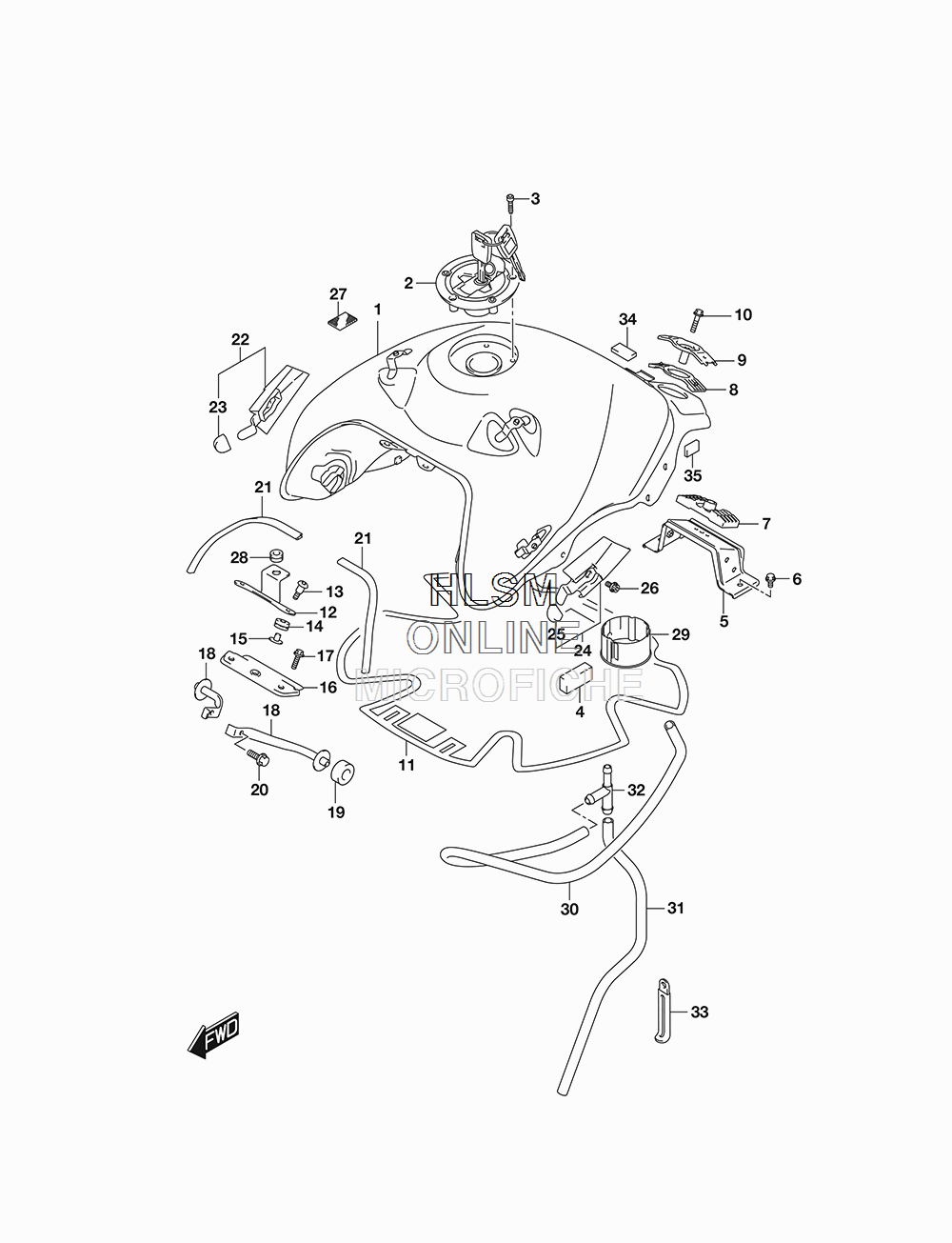

FUEL TANK (CALIF.) для Suzuki DL650A V-STORM 650 - 2018 года выпуска
-
№АртикулНазвание
-
1-144100-28K00-YVB TANK ASSY, FUEL (YVB - BLACK FOR - YVB)TANK ASSY, FUEL (YVB - BLACK FOR - YVB)
-
1-244100-28K00-YWW TANK ASSY, FUEL (YWW - WHITE FOR - YWW)TANK ASSY, FUEL (YWW - WHITE FOR - YWW)
-
1-344100-28K00-YU1 TANK ASSY, FUEL (YU1 - YELLOW FOR - YU1)TANK ASSY, FUEL (YU1 - YELLOW FOR - YU1)
-
244200-17820 CAP SET, FUEL TANK FILLERCAP SET, FUEL TANK FILLER
-
344244-11J00 BOLT, FUEL TANK FILLER CAPBOLT, FUEL TANK FILLER CAP
-
444541-28K00 CUSHION, FUEL TANK SIDECUSHION, FUEL TANK SIDE
-
544550-06G10 BRACKET, FUEL TANK REARBRACKET, FUEL TANK REAR
-
601550-0816A BOLTBOLT
-
744545-06G00 CUSHION, FUEL TANK REAR LOWERCUSHION, FUEL TANK REAR LOWER
-
844542-06G00 CUSHION, FUEL TANK REAR UPPERCUSHION, FUEL TANK REAR UPPER
-
944530-06G00 BRACKET, FUEL TANK REAR UPPERBRACKET, FUEL TANK REAR UPPER
-
1001550-0835A BOLTBOLT
-
1144194-11J00 SHIELD, FUEL TANK CENTERSHIELD, FUEL TANK CENTER
-
1244154-11J00 BRACKET, FRONT COVERBRACKET, FRONT COVER
-
1309139-06192 SCREW (6X25)SCREW (6X25)
-
1444511-16G00 CUSHION, FUEL TANK, FRCUSHION, FUEL TANK, FR
-
1544512-16G00 SPACER, FUEL TANK, FRSPACER, FUEL TANK, FR
-
1644520-11J00 BRACKET, FUEL TANK FRONTBRACKET, FUEL TANK FRONT
-
1701550-0620B BOLTBOLT
-
1844560-11J00 BRACKET, FRONT SIDEBRACKET, FRONT SIDE
-
1944542-11J00 CUSHION, FRONT SIDE BRKTCUSHION, FRONT SIDE BRKT
-
2001550-0612A BOLTBOLT
-
2168241-11J01 MOLDING, FUEL TANKMOLDING, FUEL TANK
-
2244130-28K00 BRACKET, FUEL TANK COVER (RH)BRACKET, FUEL TANK COVER (RH)
-
2309329-18001 ...CUSHION...CUSHION
-
2444140-28K00 BRACKET, FUEL TANK COVER (LH)BRACKET, FUEL TANK COVER (LH)
-
2509329-18001 ...CUSHION...CUSHION
-
2607120-0610A BOLTBOLT
-
2744572-37H00 FASTENER, COWLING (20X15X0.8)FASTENER, COWLING (20X15X0.8)
-
2809320-06504 CUSHIONCUSHION
-
2944121-28K00 VESSEL, FUEL TANK INNERVESSEL, FUEL TANK INNER
-
3044423-28K00 HOSE, FUEL TANK DRAIN NO.1HOSE, FUEL TANK DRAIN NO.1
-
3144423-11J30 HOSE, FUEL TANK DRAIN NO.2HOSE, FUEL TANK DRAIN NO.2
-
3209367-08005 3 WAY3 WAY
-
3309404-06433 CLAMP (L:80)CLAMP (L:80)
-
3445516-01H00 CUSHION, SEAT TAIL COVER LOWER RRCUSHION, SEAT TAIL COVER LOWER RR
-
3547122-28K00 CUSHION, FRAME COVER FRONT RRCUSHION, FRAME COVER FRONT RR
