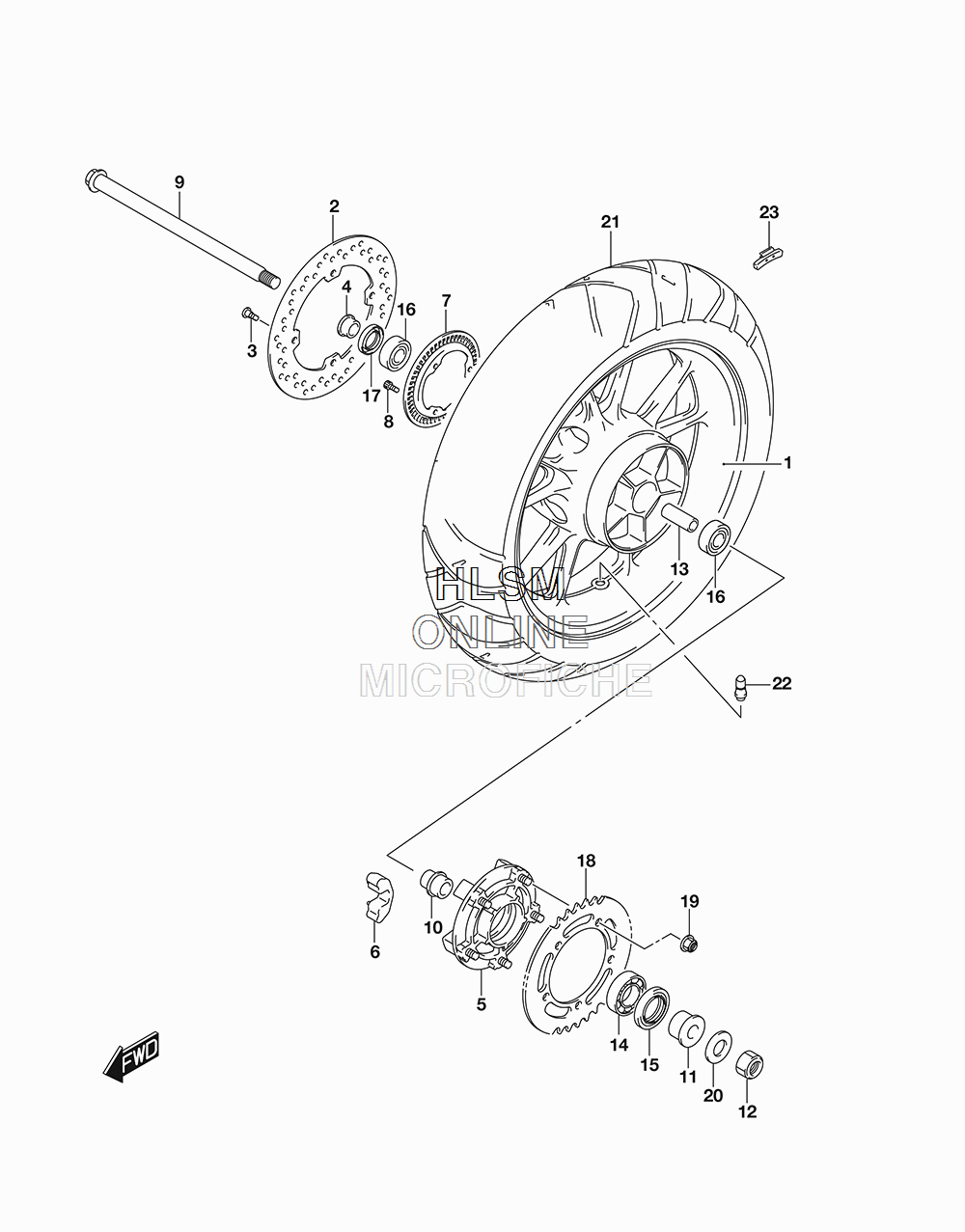

WHEEL - REAR для Suzuki DL650A V-STORM 650 - 2018 года выпуска
-
№АртикулНазвание
-
164111-28K00-019 WHEEL, REAR (17M/CXMT4.00) (019 - BLACK)WHEEL, REAR (17M/CXMT4.00) (019 - BLACK)
-
269211-06G10 DISC, RR BRAKEDISC, RR BRAKE
-
309106-08160 BOLT (8X21)BOLT (8X21)
-
464741-10F00 SPACER, REAR AXLE (RH)SPACER, REAR AXLE (RH)
-
564610-35F40 DRUM, REAR SPROCKETDRUM, REAR SPROCKET
-
664651-35F10 ABSORBER, REAR HUB SHOCKABSORBER, REAR HUB SHOCK
-
754162-28K00 RING, SPEED SENSOR (50T)RING, SPEED SENSOR (50T)
-
807130-0512A BOLTBOLT
-
964711-03F00 AXLE, REARAXLE, REAR
-
1064733-06G00 RETAINER, REAR SPROCKET DRUMRETAINER, REAR SPROCKET DRUM
-
1164751-27G00 SPACER, REAR AXLE (LH)SPACER, REAR AXLE (LH)
-
1209159-18007 NUTNUT
-
1309180-20112 SPACER (20.8X27.2X124)SPACER (20.8X27.2X124)
-
1409262-32022 BEARING (32X65X17)BEARING (32X65X17)
-
1509285-39001 OIL SEAL (39X65X7)OIL SEAL (39X65X7)
-
1608123-62047 BEARING (20X47X14)BEARING (20X47X14)
-
1709285-28001 OIL SEAL (28X47X7)OIL SEAL (28X47X7)
-
1864511-27G00 SPROCKET, REAR (47T-525)SPROCKET, REAR (47T-525)
-
1908319-3110A NUTNUT
-
2009160-19025 WASHER (19X32X3.2)WASHER (19X32X3.2)
-
2165110-28K00 TIRE, REAR (BATTLAX ADVENTURE A40R F)TIRE, REAR (BATTLAX ADVENTURE A40R F)
-
2243130-24A00 VALVE ASSY, WHEEL RIM (TR412)VALVE ASSY, WHEEL RIM (TR412)
-
23-155411-22H00 BALANCER, WHEEL NO.1 (10G)BALANCER, WHEEL NO.1 (10G)
-
23-255412-22H00 BALANCER, WHEEL NO.2 (20G)BALANCER, WHEEL NO.2 (20G)
-
23-355413-22H00 BALANCER, WHEEL NO.3 (30G)BALANCER, WHEEL NO.3 (30G)
