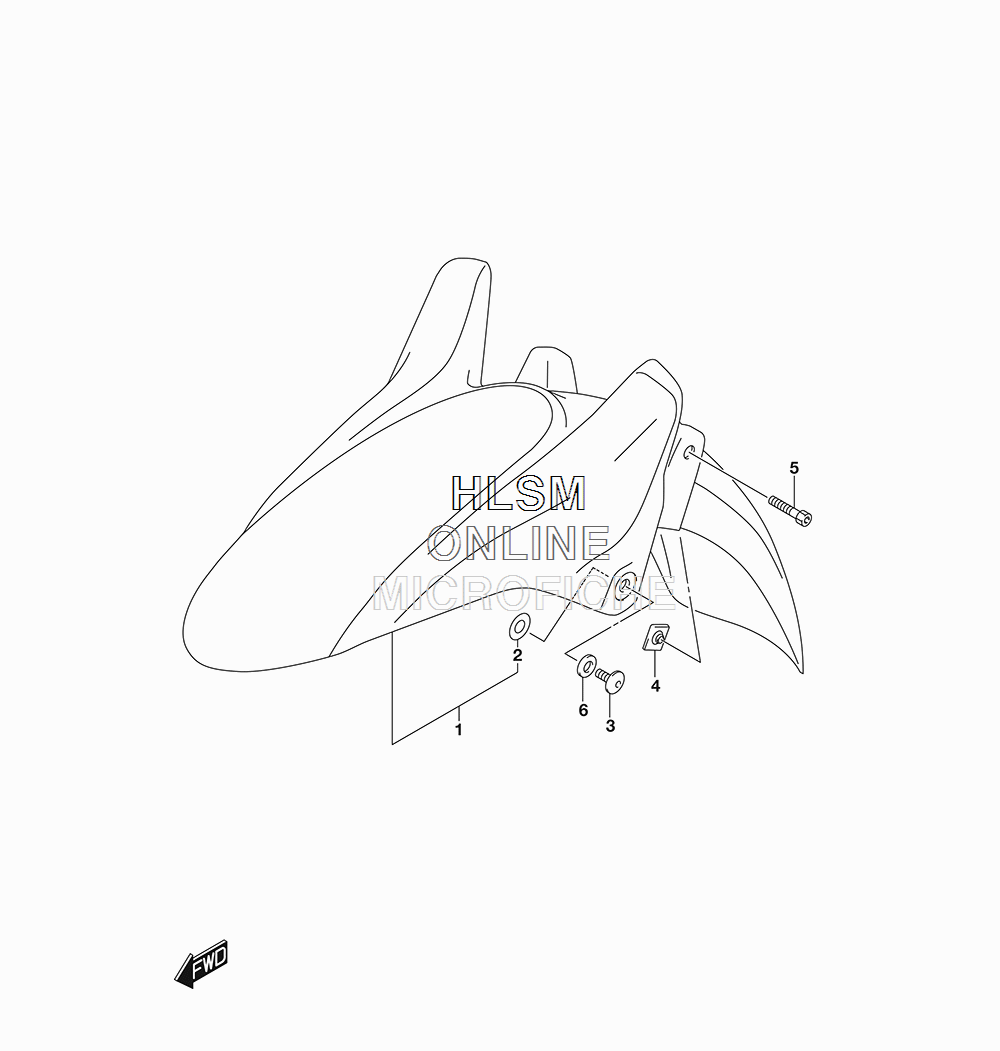

FENDER - FRONT для Suzuki DL650A V-STORM 650 - 2018 года выпуска
-
№АртикулНазвание
-
153110-28K00-291 FENDER, FR (291 - BLACK)FENDER, FR (291 - BLACK)
-
253121-28K00 ...TAPE, FR FENDER...TAPE, FR FENDER
-
345241-17K10 BOLTBOLT
-
453122-06G00 NUT, FRONT FENDERNUT, FRONT FENDER
-
509106-06122 BOLT (6X30)BOLT (6X30)
-
653121-33E00 WASHER, FR FENDER, FRONT NO.2WASHER, FR FENDER, FRONT NO.2
