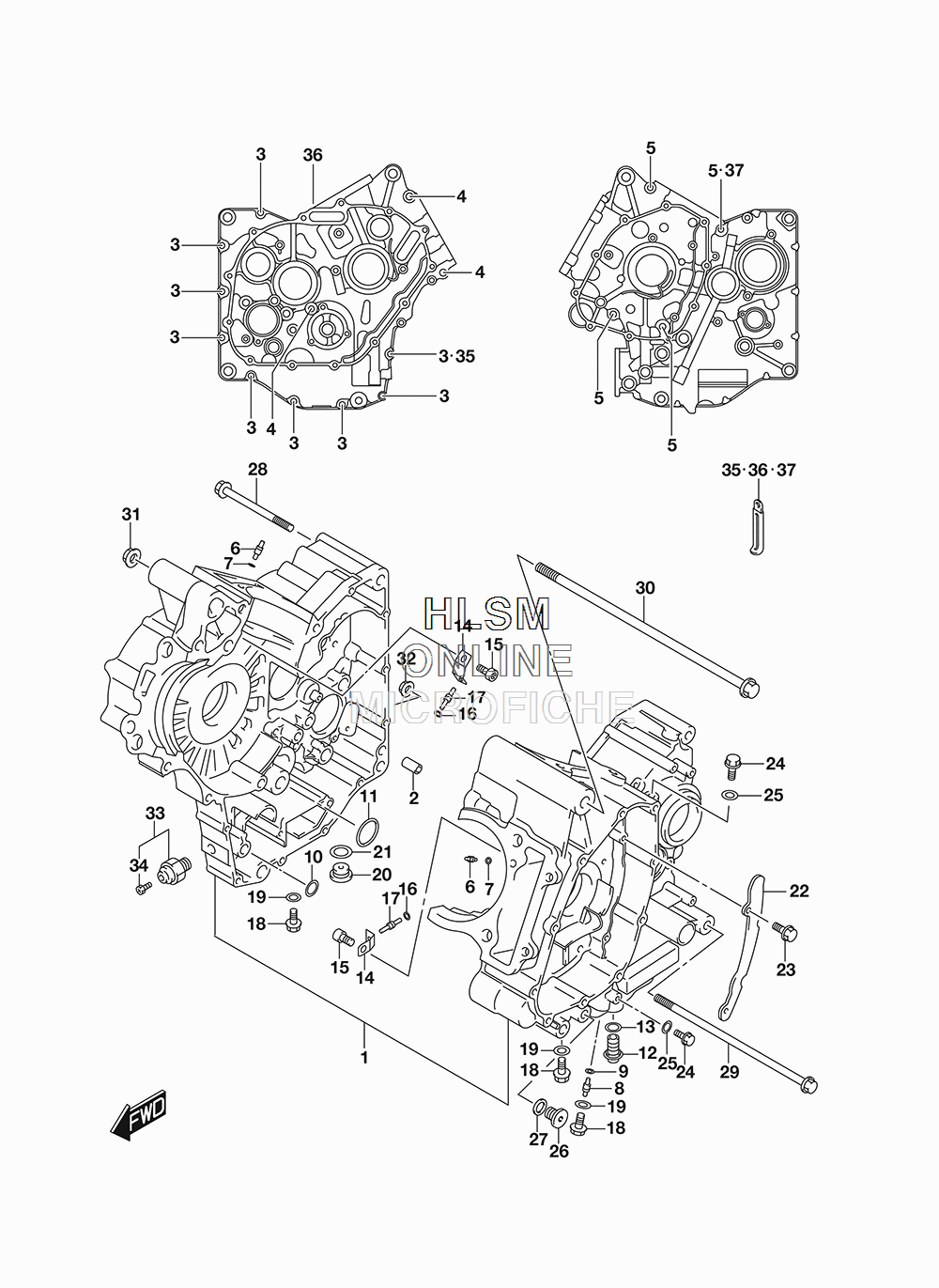

CRANKCASE для Suzuki DL650A V-STORM 650 - 2018 года выпуска
-
№АртикулНазвание
-
111301-27871 CRANKCASE SETCRANKCASE SET
-
209206-11007 ...PIN (8.4X11X20)...PIN (8.4X11X20)
-
301547-0650A BOLTBOLT
-
407120-0855A BOLTBOLT
-
507120-0880A BOLTBOLT
-
609493-28010 JET AIR (#14)JET AIR (#14)
-
709280-04004 O RING (D:1.2, ID:4)O RING (D:1.2, ID:4)
-
809493-36004 JET, OIL GALY (#18)JET, OIL GALY (#18)
-
909280-04004 O RING (D:1.2, ID:4)O RING (D:1.2, ID:4)
-
1009280-13007 O RING (D:1.9, ID:12.5)O RING (D:1.9, ID:12.5)
-
1109280-15007 O RING (D:2.4, ID:15.8)O RING (D:2.4, ID:15.8)
-
1209247-12011 PLUG (12X20)PLUG (12X20)
-
1309168-12002 GASKET (12.1X16.2X3.7)GASKET (12.1X16.2X3.7)
-
1416438-19F00 PLATE, PISTON COOLING JETPLATE, PISTON COOLING JET
-
1509106-06075 BOLT (6X12)BOLT (6X12)
-
1609280-04004 O RING (D:1.2, ID:4)O RING (D:1.2, ID:4)
-
1709493-26007 JET (#130)JET (#130)
-
1801550-0812A BOLTBOLT
-
1909168-08016 GASKET (8.2X14X1)GASKET (8.2X14X1)
-
2009248-16012 PLUG (16X8)PLUG (16X8)
-
2109168-16002 GASKET (16X22X2)GASKET (16X22X2)
-
2211323-19F00 PLATE, OIL SEPARATORPLATE, OIL SEPARATOR
-
2301547-0612A BOLTBOLT
-
2401547-0610A BOLTBOLT
-
2509168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
-
2609247-12006 PLUG (12X10)PLUG (12X10)
-
2709168-12017 GASKET (12X17X1)GASKET (12X17X1)
-
2809103-10205 BOLT (10X225)BOLT (10X225)
-
2909103-10347 BOLT (10X275)BOLT (10X275)
-
3009103-12054 BOLT (12X310)BOLT (12X310)
-
3109159-12056 NUTNUT
-
3208319-3110A NUTNUT
-
3337820-33D10 SWITCH ASSY, OIL PRESSURESWITCH ASSY, OIL PRESSURE
-
3437822-33D00 ...BOLT, OIL PRESSURE SWITCH...BOLT, OIL PRESSURE SWITCH
-
3509404-06429 CLAMP (L:45)CLAMP (L:45)
-
3609404-06433 CLAMP (L:80)CLAMP (L:80)
-
3709404-08419 CLAMP (L:80)CLAMP (L:80)
