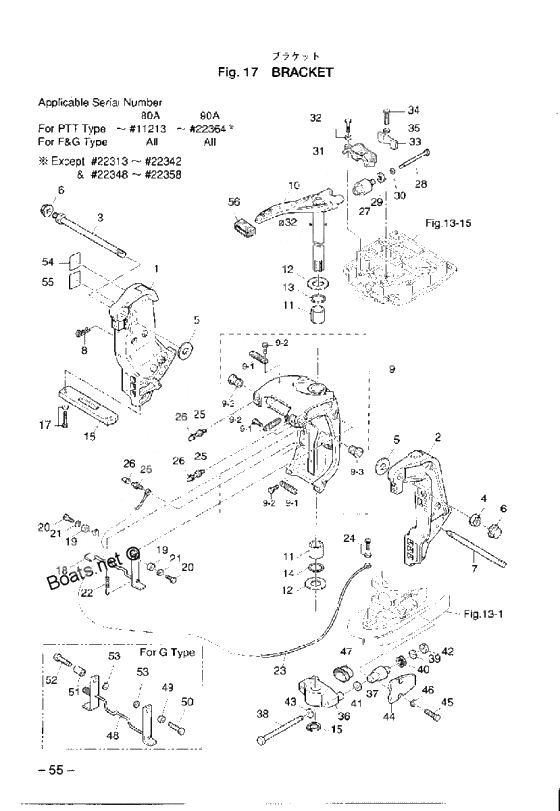

Bracket для Tohatsu M90A - 2002 года выпуска
-
№АртикулНазвание
-
003B7-62116-0 WasherWasher
-
00353-61315-0 WasherWasher
-
353-61315-1 WasherWasher
-
003B7-62415-0 O-RingO-Ring
-
00910-43061-0 BoltBolt
-
003EOS62112-0 Stern bracket r
GRAYStern bracket r
GRAY -
00332-66308-0 Washer, fuel tankWasher, fuel tank
-
00353-61336-0 Damper RubberDamper Rubber
-
003B7-61335-0 WasherWasher
-
00346-62127-0 Cap,Bracket BoltCap,Bracket Bolt
-
003B7-61324-0 Nut
P1.5Nut
P1.5 -
00945103-3200 C-RingC-Ring
-
00353-62133-0 BoltBolt
-
003B7-62113-1 Stern bracket l
BLUEStern bracket l
BLUE -
003B7-61411-0 Mount bracketMount bracket
-
003B7-62010-0 Steering shaft ass'ySteering shaft ass'y
-
003B7-60218-0 AnodeAnode
-
003B7-61341-0 Cap, upper mount rubberCap, upper mount rubber
-
003B7-62121-0 Thrust RodThrust Rod
-
00344-67177-0 МасленкаМасленка
-
00940-13120-0 WasherWasher
-
003B7S62113-1 Stern bracket l
GRAYStern bracket l
GRAY -
00353-61302-0 Lower Mount RubberLower Mount Rubber
-
003B7-62010-1 Steering shaft ass'y
BLUESteering shaft ass'y
BLUE -
00941303-0600 New partNew part
-
00916103-0835 BoltBolt
-
003B7-62129-0 Pin, Thrust RodPin, Thrust Rod
-
003B7-61342-0 Cap, lower mount rubber
BLUECap, lower mount rubber
BLUE -
003B7-61301-0 Upper Mount RobberUpper Mount Robber
-
00930-13120-0 Nut, p1.75Nut, p1.75
-
003B7-62191-0 Bracket Bolt Ass'y
BLUEBracket Bolt Ass'y
BLUE -
00353-61321-0 Bolt, mount rubber lowerBolt, mount rubber lower
-
003B7S62010-1 Steering shaft ass'y
GRAYSteering shaft ass'y
GRAY -
003B7-62095-0 Damper Rubber
(L)Damper Rubber
(L) -
00941303-0800 Spring WasherSpring Washer
-
003B7-62312-1 Swivel bracket ass'ySwivel bracket ass'y
-
00NB7-61322-0 Cap, lower mount rubber
GRAYCap, lower mount rubber
GRAY -
003B7-61307-0 Bolt upper mount rubberBolt upper mount rubber
-
003C7-60218-0 Anode, Stern BracketAnode, Stern Bracket
-
00NB7-62191-0 Bracket Bolt Ass'y
GRATBracket Bolt Ass'y
GRAT -
00353-61321-2 BoltBolt
-
353-61321-3 BoltBolt
-
003B7-62417-0 BushingBushing
-
003B7-62096-0 Damper Rubber B
(XL)Damper Rubber B
(XL) -
003B7-61339-0 Damper, Mount Rubber UpperDamper, Mount Rubber Upper
-
003B7-62312-2 Swivel bracket ass'y
BLUESwivel bracket ass'y
BLUE -
00910114-0825 BoltBolt
-
003B7-61307-1 Bolt, upper mount rubberBolt, upper mount rubber
-
00346-62124-0 Bracket Nut(Nylon)Bracket Nut(Nylon)
-
00353-61334-0 WasherWasher
-
003B7-62423-0 Thrust PlateThrust Plate
-
003B7-62396-0 Ground WireGround Wire
-
003B7-62112-1 Stern bracket r
BLUEStern bracket r
BLUE -
00910114-0625 BoltBolt
-
003C7S62313-1 Swivel bracket ass'y
GRAYSwivel bracket ass'y
GRAY -
00940203-0800 WasherWasher
-
00353-61338-0 Damper rubber 21-34-5Damper rubber 21-34-5
-
013C7-62126-0 BushingBushing
-
13E0S62112-0 Stern bracket rStern bracket r
-
23E0S62113-0 Stern bracket lStern bracket l
-
33B7-62191-0 Bracket Bolt Ass'yBracket Bolt Ass'y
-
4346-62124-0 Bracket Nut(Nylon)Bracket Nut(Nylon)
-
53B7-62116-0 WasherWasher
-
6346-62127-0 Cap,Bracket Bolt
for F TypeCap,Bracket Bolt
for F Type -
73B7-62121-0 Thrust RodThrust Rod
-
83B7-62129-1 Pin, Thrust RodPin, Thrust Rod
-
93C7S62313-1 Swivel bracket ass'y
for PTT TypeSwivel bracket ass'y
for PTT Type -
9-1309-06972-0 Clamp,6.5-47.5PClamp,6.5-47.5P
-
9-2910103-0610 BoltBolt
-
9-33C7-62126-0 BushingBushing
-
103B7S62010-1 Steering shaft ass'ySteering shaft ass'y
-
103C8S62010-2 Steering shaft ass'ySteering shaft ass'y
-
113B7-62417-0 BushingBushing
-
123B7-62423-0 Thrust PlateThrust Plate
-
133B7-62414-0 Seal Ring, Steering ShaftSeal Ring, Steering Shaft
-
143B7-62415-0 O-RingO-Ring
-
15945103-3200 C-RingC-Ring
-
163C7-60218-1 AnodeAnode
-
3C7-60218-2 AnodeAnode
-
17910103-6630 BoltBolt
-
193B7-62457-0 Collar, 10.5-13.8-7.6
for PTT TypeCollar, 10.5-13.8-7.6
for PTT Type -
223B7-62473-0 Spring Tilt Stopper
for PTT TypeSpring Tilt Stopper
for PTT Type -
233B7-62396-0 Ground WireGround Wire
-
25344-67177-0 МасленкаМасленка
-
26344-67178-0 Cap grease nippleCap grease nipple
-
273B7-61301-0 Upper Mount RobberUpper Mount Robber
-
283B7-61307-1 Bolt, upper mount rubberBolt, upper mount rubber
-
293C7-61338-0 Damper RubberDamper Rubber
-
303B7-61335-0 WasherWasher
-
313B7S61341-1 Cap, mount rubber upper
80A #11176-, 90A #20995-Cap, mount rubber upper
80A #11176-, 90A #20995- -
32910103-6835 BoltBolt
-
333B7-61339-0 Damper, Mount Rubber UpperDamper, Mount Rubber Upper
-
34910103-0625 BoltBolt
-
353C8-66308-0 New partNew part
-
363B7-61411-0 Mount bracketMount bracket
-
37353-61302-0 Lower Mount RubberLower Mount Rubber
-
38353-61321-2 BoltBolt
-
353-61321-3 BoltBolt
-
39353-61334-0 WasherWasher
-
41353-61315-0 WasherWasher
-
353-61315-1 WasherWasher
-
423B7-61324-0 NutNut
-
443B7S61342-0 Cap lower mount rubberCap lower mount rubber
-
46940203-0800 WasherWasher
-
47353-61336-0 Damper RubberDamper Rubber
-
483B7S77615-1 Tilt stopper manual tilt
for G TypeTilt stopper manual tilt
for G Type -
513B7-77612-0 Collar 10.5-13.8-14.5
for G TypeCollar 10.5-13.8-14.5
for G Type -
563B7-62096-0 Damper Rubber B
L=40mm, for Transom XLDamper Rubber B
L=40mm, for Transom XL -
563B7-62095-0 Damper Rubber
L=20mm, for Transom LDamper Rubber
L=20mm, for Transom L
