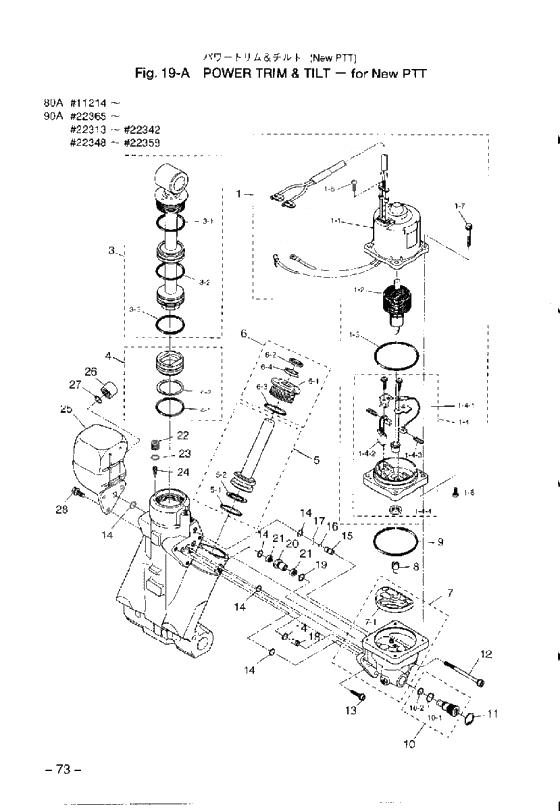

Power trim & tilt (for new ptt) для Tohatsu M90A - 2002 года выпуска
-
№АртикулНазвание
-
13E0-77180-0 Motor Ass'yMotor Ass'y
-
1-13E0-77195-0 Yoke Ass'yYoke Ass'y
-
1-23E0-77190-0 Armature assy - not for saleArmature assy - not for sale
-
1-43E0-77192-0 Bracket Ass'yBracket Ass'y
-
1-4-13E0-77183-0 Brush - not for sale
Not for SaleBrush - not for sale
Not for Sale -
1-4-23E0-77191-0 Circuit breaker- - no longer available
Not for SaleCircuit breaker- - no longer available
Not for Sale -
1-4-33E0-77184-0 Spring brush - not for sale
Not for SaleSpring brush - not for sale
Not for Sale -
1-4-43E0-77193-0 Oil seal - not for sale
Not for SaleOil seal - not for sale
Not for Sale -
1-53E0-77189-0 Screw - not for saleScrew - not for sale
-
1-63E0-77194-0 Screw - not for saleScrew - not for sale
-
1-73E0-77199-0 BoltBolt
-
33E0-77365-0 Piston Rod A'ssy TiltPiston Rod A'ssy Tilt
-
3-13E0-77383-0 O-RingO-Ring
-
3-23E0-77384-0 O-RingO-Ring
-
53E0-77390-0 Piston,trim Ass'yPiston,trim Ass'y
-
63E0-77395-0 Rod Guide Sub-ass'y TrimRod Guide Sub-ass'y Trim
-
6-13E0-77396-0 Rod guide sub assy trimRod guide sub assy trim
-
3E0-77395-0 Rod guide sub assy trimRod guide sub assy trim
-
6-23E0-77397-0 Water seal - not for saleWater seal - not for sale
-
6-33E0-77398-0 O-RingO-Ring
-
6-43E0-77399-0 Packing rod - not availablePacking rod - not available
-
73E0-77430-0 PumpPump
-
7-13E0-77434-0 Filter BFilter B
-
83E0-77163-0 Coupling PumpCoupling Pump
-
103B7-77176-0 Manual ValveManual Valve
-
10-23E0-77177-0 O-RingO-Ring
-
123E0-77431-0 BoltBolt
-
133E0-77432-0 BoltBolt
-
143B7-77167-0 O????O????
-
153E0-77557-0 OrificeOrifice
-
163E0-77558-0 BallBall
-
173E0-77559-0 PinPin
-
183E0-77479-0 OrificeOrifice
-
203E0-77453-0 Valve SeatValve Seat
-
213E0-77456-0 FilterFilter
-
223E0-77472-0 PlugPlug
-
243E0-77475-0 FilterFilter
-
253B7-77452-0 O-RingO-Ring
-
263B7-77168-0 CapCap
-
273B7-77169-0 O-RingO-Ring
-
283E0-77159-0 BoltBolt
