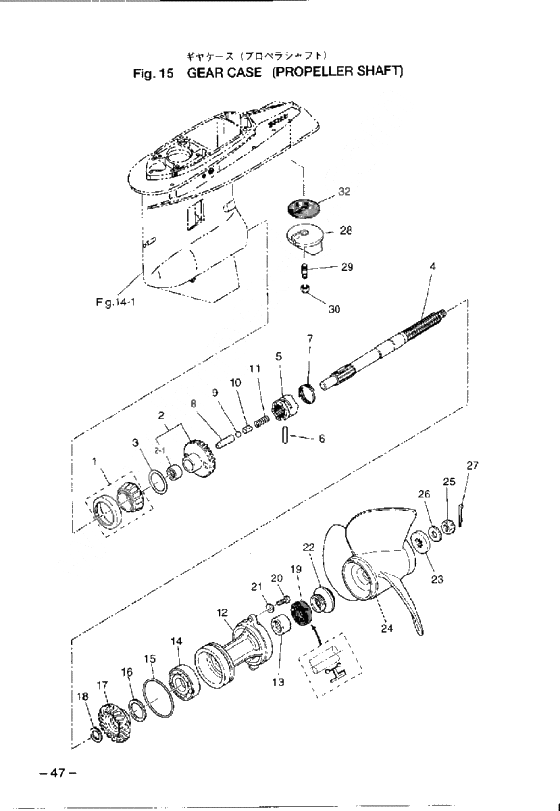

Gear case (propeller shaft) для Tohatsu M90A - 2002 года выпуска
-
№АртикулНазвание
-
003B7-64222-0 Spring Holder, ClutchSpring Holder, Clutch
-
003B7-64231-0 Thrust holder, propellerThrust holder, propeller
-
003B7-64012-0 Shim
AR T=0.1,0.15Shim
AR T=0.1,0.15 -
003B7-64033-0 Shim
AR T=0.1,0.15Shim
AR T=0.1,0.15 -
00941303-0800 Spring WasherSpring Washer
-
00346-64221-0 Spring ClutchSpring Clutch
-
003B7-64231-1 Thrust holder, propellerThrust holder, propeller
-
003B7-64211-0 Propeller ShaftPropeller Shaft
-
003B7-64093-0 Bevel Gear CBevel Gear C
-
00940-13080-0 WasherWasher
-
003B7-60000-0 Gear case ass'yGear case ass'y
-
003B7-60101-0 Housing, Propeller Shaft
BLUEHousing, Propeller Shaft
BLUE -
00345-64124-0 WasherWasher
-
003B7-64215-0 ClutchClutch
-
003B7-64039-0 Washer set, t=2.8,3.0,3.2
AR T=2.8,3.0,3.2Washer set, t=2.8,3.0,3.2
AR T=2.8,3.0,3.2 -
003B7-60000-1 Gear case ass'y
BLUEGear case ass'y
BLUE -
003B7S60101-1 Housing propeller shaft
GRAYHousing propeller shaft
GRAY -
00353-64121-0 Nut PropellerNut Propeller
-
003B7-64218-0 Clutch PinClutch Pin
-
003B7-60111-0 Oil seal, 30-50-12Oil seal, 30-50-12
-
003B7-60211-0 Needle Bearing, 30-40-30Needle Bearing, 30-40-30
-
00951-53032-5 Split PinSplit Pin
-
003B7-64219-0 Snap, Clutch PinSnap, Clutch Pin
-
00910114-0830 BoltBolt
-
003B7-64010-0 Bevel Gear A Ass'yBevel Gear A Ass'y
-
009601-0-6208 Ball bearing, 6208Ball bearing, 6208
-
003B7-60217-0 Trim TabTrim Tab
-
009650-2-1609 Steel ball, 9/16Steel ball, 9/16
-
00940203-0800 WasherWasher
-
003B7-60215-0 Bearing, 30209Bearing, 30209
-
003B7-60103-0 O-RingO-Ring
-
003B7-60219-0 Packing, Trim TabPacking, Trim Tab
-
013B7-60102-0 Needle bearing, 25.4-33.3-31.8Needle bearing, 25.4-33.3-31.8
-
13C7-60215-0 Bearing, 30209Bearing, 30209
-
23D8-64010-0 Bevel Gear A Ass'y
80A #11181-, 90A #21080-Bevel Gear A Ass'y
80A #11181-, 90A #21080- -
2-13B7-64011-0 Needle Bearing, 25-32-26Needle Bearing, 25-32-26
-
33B7-64016-0 Shim, 47-57-0.1Shim, 47-57-0.1
-
33B7-64015-0 Shim, 47-57-0.15Shim, 47-57-0.15
-
43B7-64211-0 Propeller ShaftPropeller Shaft
-
53C7-64215-0 Clutch
80A #11181-, 90A #21080-Clutch
80A #11181-, 90A #21080- -
63B7-64218-0 Clutch PinClutch Pin
-
73B7-64219-1 Snap, Clutch Pin
for R & L RotationSnap, Clutch Pin
for R & L Rotation -
83B7-64223-0 Push rod, clutchPush rod, clutch
-
9965002-1609 BallBall
-
103B7-64222-0 Spring Holder, ClutchSpring Holder, Clutch
-
11346-64221-0 Spring ClutchSpring Clutch
-
123B7S60101-1 Housing propeller shaftHousing propeller shaft
-
133B7-60211-0 Needle Bearing, 30-40-30Needle Bearing, 30-40-30
-
149601-0-6208 Ball bearing, 6208Ball bearing, 6208
-
153B7-60103-0 O-RingO-Ring
-
163B7-64036-0 Shim , 42-50-0.15Shim , 42-50-0.15
-
163B7-64037-0 Shim, 42-50-0.1Shim, 42-50-0.1
-
173C7-64093-0 Bevel Gear C
80A #11181-, 90A #21080-Bevel Gear C
80A #11181-, 90A #21080- -
183B7-64032-0 Washer, t=3.2Washer, t=3.2
-
183B7-64034-0 Washer, t=3.0Washer, t=3.0
-
183B7-64035-0 Washer, t=3.0Washer, t=3.0
-
193B7-60111-0 Oil seal, 30-50-12Oil seal, 30-50-12
-
203C7-60108-0 Bolt 8-30 precoatedBolt 8-30 precoated
-
21940203-0800 WasherWasher
-
223B7-64231-1 Thrust holder, propellerThrust holder, propeller
-
233B7-64233-0 Stopper PropellerStopper Propeller
-
243B7-64532-1 Prop m-15 70c 90a 115a2 120a2 140a2 (13.75 x 15 pitch)Prop m-15 70c 90a 115a2 120a2 140a2 (13.75 x 15 pitch)
-
3N4B64532-1 Prop m-15 70c 90a 115a2 120a2 140a2 (13.75 x 15 pitch)Prop m-15 70c 90a 115a2 120a2 140a2 (13.75 x 15 pitch)
-
243C7-64536-0 Prop m-15 70c 90a 115a2 120a2 140a2 (13.75 x 15 pitch)
or A17 3B7-64536-1Prop m-15 70c 90a 115a2 120a2 140a2 (13.75 x 15 pitch)
or A17 3B7-64536-1 -
3N4B64532-1 Prop m-15 70c 90a 115a2 120a2 140a2 (13.75 x 15 pitch)Prop m-15 70c 90a 115a2 120a2 140a2 (13.75 x 15 pitch)
-
243C7-64541-0 Prop m-17 70c 90a 115a2 120a2 140a2 (13.25 x 17 pitch)
or A19 3B7-64541-1Prop m-17 70c 90a 115a2 120a2 140a2 (13.25 x 17 pitch)
or A19 3B7-64541-1 -
243C7-64549-0 Prop m-19 70c 90a 115a2 120a2 140a2 (13.0 x 19 pitch)
or A23 3B7-64549-0Prop m-19 70c 90a 115a2 120a2 140a2 (13.0 x 19 pitch)
or A23 3B7-64549-0 -
3N4W64541-1 Prop m-19 70c 90a 115a2 120a2 140a2 (13.0 x 19 pitch)Prop m-19 70c 90a 115a2 120a2 140a2 (13.0 x 19 pitch)
-
243C7-64554-0 Propeller v2100(3x330x521)
or A25 3B7-64554-0Propeller v2100(3x330x521)
or A25 3B7-64554-0 -
243B7-64523-1 Prop m-11 70c 90a 115a2 120a2 140a2 (14.0 x 11 pitch)Prop m-11 70c 90a 115a2 120a2 140a2 (14.0 x 11 pitch)
-
3N4B64523-1 Prop m-11 70c 90a 115a2 120a2 140a2 (14.0 x 11 pitch)Prop m-11 70c 90a 115a2 120a2 140a2 (14.0 x 11 pitch)
-
243B7-64527-1 Prop m-13 70c 90a 115a2 120a2 140a2 (14.0 x 13 pitch)Prop m-13 70c 90a 115a2 120a2 140a2 (14.0 x 13 pitch)
-
3N4B64527-1 Prop m-13 70c 90a 115a2 120a2 140a2 (14.0 x 13 pitch)Prop m-13 70c 90a 115a2 120a2 140a2 (14.0 x 13 pitch)
-
25353-64121-0 Nut PropellerNut Propeller
-
26345-64124-0 WasherWasher
-
27951503-0325 Split PinSplit Pin
-
283B7-60217-1 Trim TabTrim Tab
-
30930403-0800 Nylon Nut
80A #11202-, 90A #21576-Nylon Nut
80A #11202-, 90A #21576- -
323B7-60219-0 Packing, Trim TabPacking, Trim Tab
