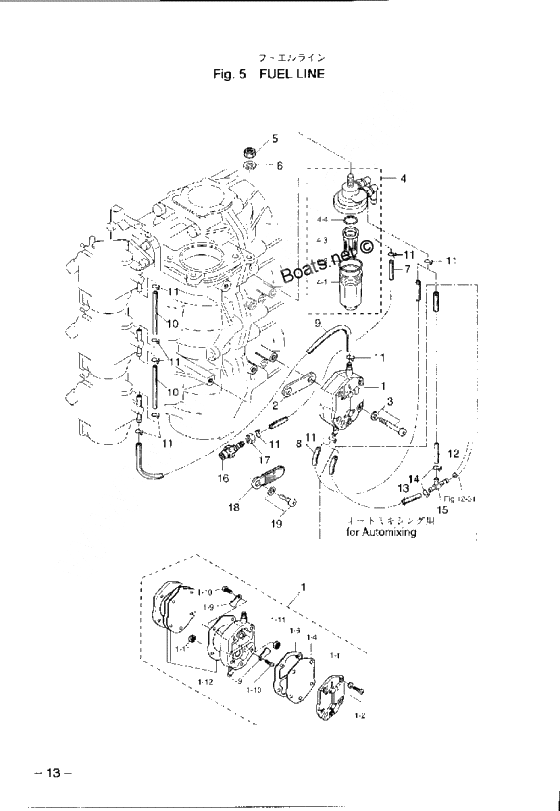

Fuel line для Tohatsu M90A - 2002 года выпуска
-
№АртикулНазвание
-
1356-04000-1 New partNew part
-
1-1334-04004-0 Fuel CoverFuel Cover
-
1-10921722-0306 Stud BoltStud Bolt
-
1-11930222-0300 NutNut
-
1-12356-04030-0 New partNew part
-
1-2922512-6528 Stud BoltStud Bolt
-
1-4334-04005-0 New partNew part
-
1-6334-04007-0 Gasket B DiaphragmGasket B Diaphragm
-
1-9356-04044-0 Check ValveCheck Valve
-
2346-04901-0 Gasket fuel pumpGasket fuel pump
-
3921503-6640 Stud BoltStud Bolt
-
43B7-02230-0 New partNew part
-
4-13B7-02237-0 CupCup
-
4-23B7-02235-0 O-Ring AO-Ring A
-
4-33B7-02234-0 FilterFilter
-
4-43B7-02236-0 O???? bO???? b
-
6941303-0800 Spring WasherSpring Washer
-
11338-02215-0 ClipClip
-
153C8-09075-0 Check Valve CompleteCheck Valve Complete
-
163B2-70260-1 New partNew part
-
17931103-1000 NutNut
-
18309-06972-0 Clamp,6.5-47.5PClamp,6.5-47.5P
-
19921503-6612 Stud BoltStud Bolt
