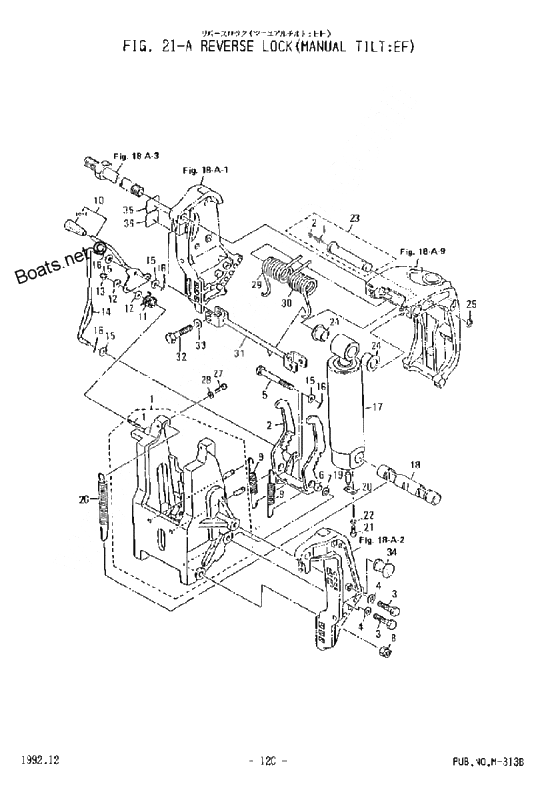

Reverse lock (manual tilt ef) для Tohatsu M90A - 2002 года выпуска
-
№АртикулНазвание
-
00353-83719-0 WasherWasher
-
00353-62141-0 Spring r tilt assistantSpring r tilt assistant
-
003B7-66343-2 Handle ass'y, reverse lockHandle ass'y, reverse lock
-
00941303-0600 New partNew part
-
003B7-77605-0 Bracket ass'y, manual tiltBracket ass'y, manual tilt
-
00951503-0212 Split PinSplit Pin
-
00353-62142-0 Spring l tilt assistantSpring l tilt assistant
-
003B7-77072-1 Cylinder pin set upper - no longer availableCylinder pin set upper - no longer available
-
3B7-77072-2 Cylinder pin set upper - no longer availableCylinder pin set upper - no longer available
-
003B7-66322-2 Reverse LockReverse Lock
-
003B7-77601-0 Shock absorberShock absorber
-
003B7-62143-0 Shaft, tilt assistant sub-springShaft, tilt assistant sub-spring
-
003B7-66323-1 Spring, reverse lock linkSpring, reverse lock link
-
00910103-1045 New partNew part
-
003B7-77607-0 Shaft lower shock absorberShaft lower shock absorber
-
00331-63507-0 Grommet, 12-17.5Grommet, 12-17.5
-
00332-66308-0 Washer, fuel tankWasher, fuel tank
-
00945103-1800 C-RingC-Ring
-
003B7-77604-0 Bolt, 10-75Bolt, 10-75
-
003B7-77608-0 Pin, shock absorberPin, shock absorber
-
003B7-72047-0 Label, reverse lockLabel, reverse lock
-
00930403-0600 Nylon NutNylon Nut
-
003B7-62141-0 Spring, tilt assistantSpring, tilt assistant
-
00930403-1000 Nylon NutNylon Nut
-
003B7-77609-0 Plate, lower shaft pinPlate, lower shaft pin
-
003B7-72048-0 Label, reverse lock cautionLabel, reverse lock caution
-
003B7-66312-1 Link, Reverse LockLink, Reverse Lock
-
00910114-0625 BoltBolt
-
00346-66332-0 Spring (L) Reverse LockSpring (L) Reverse Lock
-
00910121-0612 BoltBolt
-
013B7-66333-0 Grip, reverse lockGrip, reverse lock
-
01344-67177-0 МасленкаМасленка
