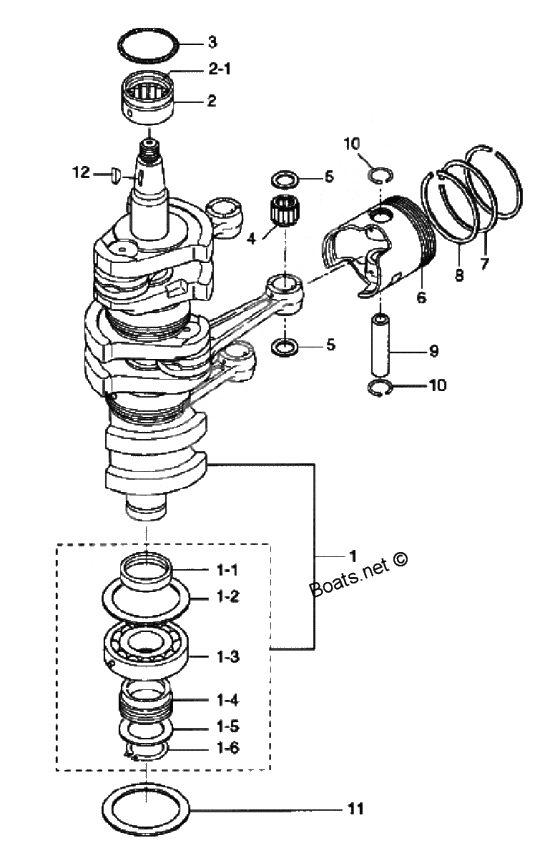

Piston & crank shaft для Tohatsu M90A - 2002 года выпуска
-
№АртикулНазвание
-
003B7-00015-0 2-е поршневое кольцо
OPTIONAL2-е поршневое кольцо
OPTIONAL -
003B7-00004-1 Piston 0.5mm o/s
OPTIONALPiston 0.5mm o/s
OPTIONAL -
00353-00108-0 O-RingO-Ring
-
00360-00021-0 Палец поршняПалец поршня
-
003B7-00011-0 1-е поршневое кольцо1-е поршневое кольцо
-
00353-00042-0 Small end bearingSmall end bearing
-
00353-00024-0 ClipClip
-
00360-00014-0 Поршневые кольца
OPTIONALПоршневые кольца
OPTIONAL -
00353-00046-0 WasherWasher
-
00334-00131-0 Key MagnetoKey Magneto
-
003B7-00014-0 1-е поршневое кольцо
OPTIONAL1-е поршневое кольцо
OPTIONAL -
003B7-00001-0 Piston stdPiston std
-
003B7-00012-0 2-е поршневое кольцо2-е поршневое кольцо
-
003B7-00030-0 Crankshaft Ass'yCrankshaft Ass'y
-
003B7-00001-1 Piston stdPiston std
-
00353-00113-0 Needle Bearing
WITH OIL SEALNeedle Bearing
WITH OIL SEAL -
00360-00015-0 Piston ring 2nd(0.5mm o/s)
OPTIONALPiston ring 2nd(0.5mm o/s)
OPTIONAL -
003B7-00004-0 Piston (0.5 o/s)
OPTIONALPiston (0.5 o/s)
OPTIONAL -
013B7-00116-0 Spacer, 40-52-7Spacer, 40-52-7
-
01353-00121-0 Oil Seal
D36.5-D46-8MMOil Seal
D36.5-D46-8MM -
13B7-00030-0 Crankshaft Ass'yCrankshaft Ass'y
-
1353-00121-0 Oil Seal
, тИЕ 36.5 - тИЕ 46 - 8mmOil Seal
, тИЕ 36.5 - тИЕ 46 - 8mm -
1-13B7-00116-0 Spacer, 40-52-7Spacer, 40-52-7
-
1-23B7-00115-0 WasherWasher
-
1-43B7-09060-0 Drive gear, oil pumpDrive gear, oil pump
-
1-5353-64038-0 Shim,36-44-0.1Shim,36-44-0.1
-
1-5353-64036-0 Shim, 36-44-0.3Shim, 36-44-0.3
-
1-5353-00030-0 Crankshaft Ass'yCrankshaft Ass'y
-
1-5353-64037-0 Shim,36-44-0.15Shim,36-44-0.15
-
1-6945107-3500 C-RingC-Ring
-
023B7-00115-0 WasherWasher
-
2353-00113-0 Needle BearingNeedle Bearing
-
039603-0-6208 Ball BearingBall Bearing
-
3353-00108-0 O-RingO-Ring
-
043B7-09060-0 Drive gear, oil pumpDrive gear, oil pump
-
43C7-00042-0 Needle bearing, 20-25-28Needle bearing, 20-25-28
-
05353-64033-0 AR T=0.1,0.15,0.3
AR T=0.1,0.15,0.3AR T=0.1,0.15,0.3
AR T=0.1,0.15,0.3 -
5353-00046-0 WasherWasher
-
06945107-3500 C-RingC-Ring
-
63B7-00001-2 Piston (std.)Piston (std.)
-
63B7-00004-2 Поршень (o/s +0.50)
OPTПоршень (o/s +0.50)
OPT -
73B7-00011-0 1-е поршневое кольцо1-е поршневое кольцо
-
73B7-00014-0 1-е поршневое кольцо
OPT1-е поршневое кольцо
OPT -
83B7-00012-0 2-е поршневое кольцо2-е поршневое кольцо
-
83B7-00015-0 2-е поршневое кольцо
OPT2-е поршневое кольцо
OPT -
9360-00021-0 Палец поршняПалец поршня
-
10353-00024-1 ClipClip
-
12334-00131-0 Key MagnetoKey Magneto
