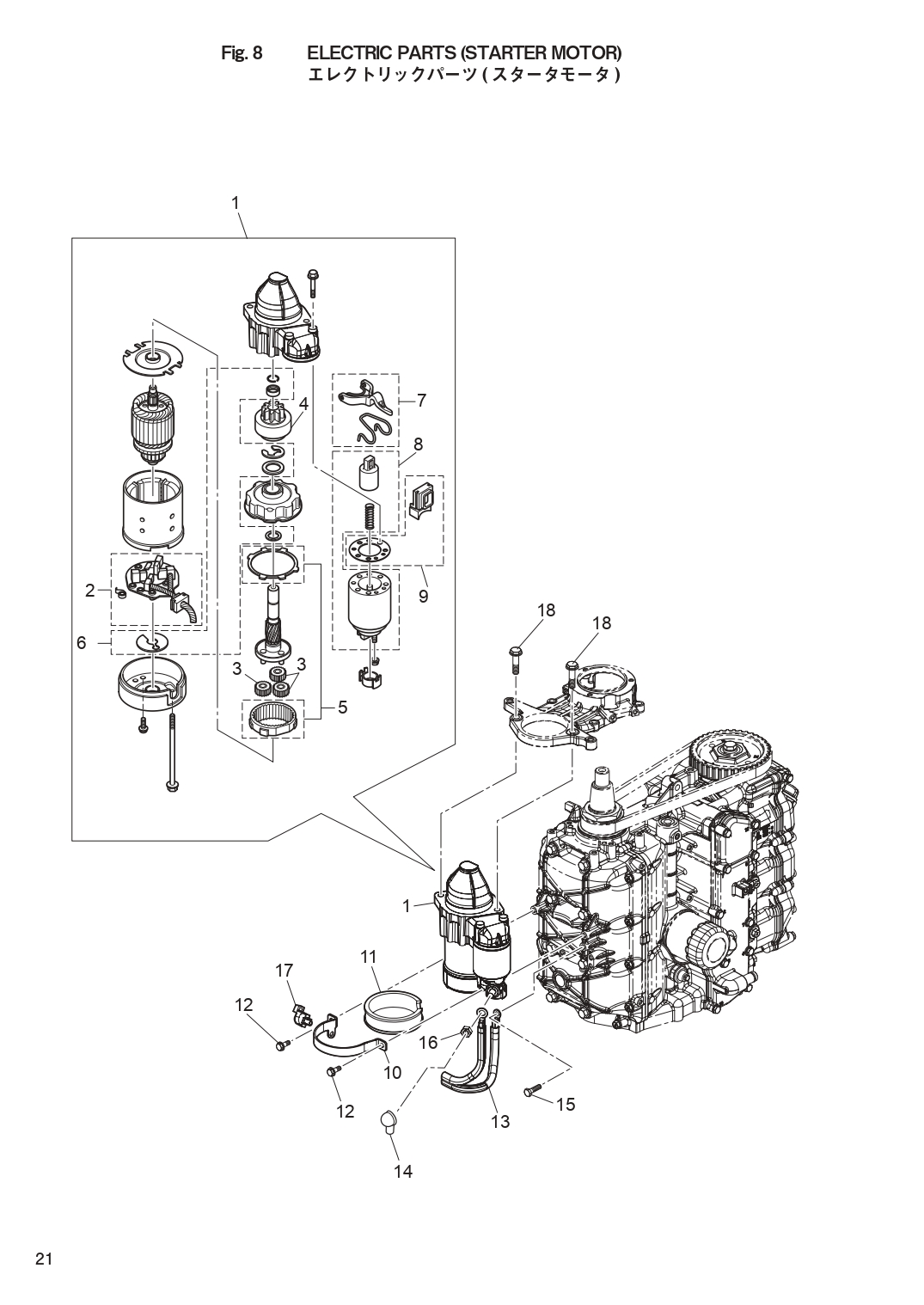

ELECTRIC PARTS (STARTER MOTOR) для Tohatsu MFS60A - 2021 года выпуска
-
№АртикулНазвание
-
13KY-76010-0 STARTER MOTOR ASSYSTARTER MOTOR ASSY
-
23FW-76014-0 * BRUSH HOLDER* BRUSH HOLDER
-
33FW-76314-0 * INTERNAL GEAR* INTERNAL GEAR
-
43FW-76015-0 * PINION ASSY* PINION ASSY
-
53FW-76317-0 * PLANET GEAR* PLANET GEAR
-
63FW-76318-0 * WASHER SET* WASHER SET
-
73FW-76320-0 * SHIFT LEVER SET* SHIFT LEVER SET
-
83FW-76321-0 * MAGNETIC SWITCH* MAGNETIC SWITCH
-
93FW-76322-0 * DUST COVER SET* DUST COVER SET
-
103KY-76009-0 STARTER MOTOR BANDSTARTER MOTOR BAND
-
113FW-76007-0 DAMPERDAMPER
-
12910103-5616 BOLTBOLT
-
133FW-76120-0 BATTERY CABLEBATTERY CABLE
-
143FW-76145-0 TERMINAL CAP 15.5-18.28
RedTERMINAL CAP 15.5-18.28
Red -
15910103-5612 BOLTBOLT
-
16930103-0800 NUT
Starter MotorNUT
Starter Motor -
173BJ-84398-0 BAND 135BAND 135
-
18910103-5830 BOLTBOLT
