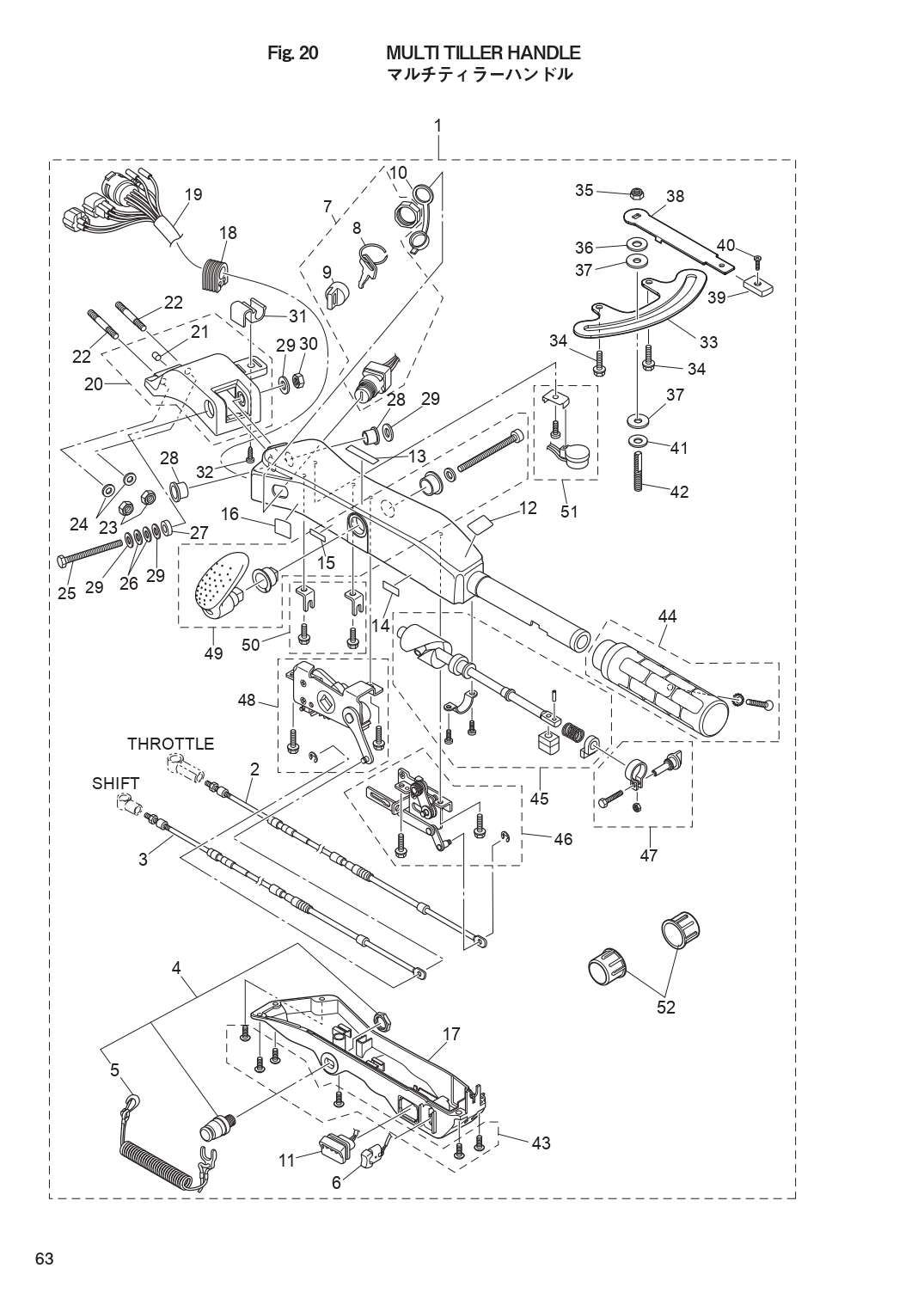

MULTI TILLER HANDLE для Tohatsu MFS60A - 2021 года выпуска
-
№АртикулНазвание
-
13KYQ63000-1 TILLER HANDLE KITTILLER HANDLE KIT
-
13KYW63000-1 TILLER HANDLE KIT
for White ModelTILLER HANDLE KIT
for White Model -
23KY-63600-0 * THROTTLE WIRE* THROTTLE WIRE
-
33KY-66196-0 * SHIFT CABLE* SHIFT CABLE
-
4398-06830-0 * STOP SWITCH ASSY* STOP SWITCH ASSY
-
5353-06821-0 ** STOP SWITCH LANYARD ASSY** STOP SWITCH LANYARD ASSY
-
63AH-72615-0 * PTT SWITCH ASSY* PTT SWITCH ASSY
-
73GF-76020-0 * MAIN SWITCH ASSY* MAIN SWITCH ASSY
-
83GF-76217-0 ** MAIN SWITCH KEY** MAIN SWITCH KEY
-
83GF-76218-0 ** MAIN SWITCH KEY** MAIN SWITCH KEY
-
83GF-76219-0 ** MAIN SWITCH KEY** MAIN SWITCH KEY
-
93GF-76205-0 ** MAIN SWITCH KEY COVERING CAP** MAIN SWITCH KEY COVERING CAP
-
103T5-76022-0 * MAIN SWITCH CAP (WATERPROOF)* MAIN SWITCH CAP (WATERPROOF)
-
113GF-71040-0 * PILOT LAMP ASSY* PILOT LAMP ASSY
-
123GF-72019-0 * THROTTLE DECAL* THROTTLE DECAL
-
133GF-67578-1 * SHIFT DECAL* SHIFT DECAL
-
143GF-72198-0 * WARNING LAMP DECAL* WARNING LAMP DECAL
-
153GF-72200-0 * STOP SWITCH DECAL* STOP SWITCH DECAL
-
163GF-84339-0 * INSTRUCTION DECAL* INSTRUCTION DECAL
-
173GF-63320-0 * TILLER HANDLE COVER* TILLER HANDLE COVER
-
183GF-63624-0 * GROMMET* GROMMET
-
193KY-76119-0 * CORD ASSY* CORD ASSY
-
203AHQ62000-0 * STEERING BRACKET ASSY* STEERING BRACKET ASSY
-
203AHW62000-0 STEERING BRACKET ASSY
for White ModelSTEERING BRACKET ASSY
for White Model -
213GF-65012-0 ** DOWEL PIN 8-16** DOWEL PIN 8-16
-
229153E3-1040 * STUD M10-40* STUD M10-40
-
23930403-1000 * NYLON NUT 10-P1.5* NYLON NUT 10-P1.5
-
249401E3-1000 * WASHER* WASHER
-
253GF-63201-0 * BOLT 10-80 P1.25* BOLT 10-80 P1.25
-
263GF-63305-0 * CONICAL SPRING WASHER 10.5-21-2.3* CONICAL SPRING WASHER 10.5-21-2.3
-
273GF-63025-0 * SPACER 10.5-23-9* SPACER 10.5-23-9
-
283GF-63102-0 * BUSHING 10.5-12.7-13.5* BUSHING 10.5-12.7-13.5
-
299401E3-1000 * WASHER* WASHER
-
303GF-63310-0 * LOCK NUT 10-P1.25* LOCK NUT 10-P1.25
-
313GF-62004-0 * CORD HOLDER* CORD HOLDER
-
323T5-06437-0 * TAPPING SCREW 6-16* TAPPING SCREW 6-16
-
333KY-62447-0 * PLATE* PLATE
-
343V1-60108-0 * PRE-COATED BOLT 6-16* PRE-COATED BOLT 6-16
-
353V5-62442-0 * NYLON NUT 8-P1.25* NYLON NUT 8-P1.25
-
363B7-63730-0 * WASHER 8.5-24-1.5* WASHER 8.5-24-1.5
-
373GF-62449-0 * DISC 8.5-25-2* DISC 8.5-25-2
-
383KY-62441-0 * FRICTION LEVER* FRICTION LEVER
-
393AC-63012-0 * GRIP* GRIP
-
40346-66334-0 * STOPPER* STOPPER
-
413R3-62443-0 * WASHER 8.1-20-0.8* WASHER 8.1-20-0.8
-
423GF-62445-0 * BOLT 8-32 P1.25* BOLT 8-32 P1.25
-
433GF-63205-0 * SCREW SET* SCREW SET
-
443GF-63193-0 * GRIP PARTS KIT* GRIP PARTS KIT
-
453GF-63062-0 * THROTTLE SHAFT KIT* THROTTLE SHAFT KIT
-
463GF-63067-0 * THROTTLE LINK ASSY
945303-0400 E-Ring x1* THROTTLE LINK ASSY
945303-0400 E-Ring x1 -
473GF-63032-0 * THROTTLE FRICTION ASSY* THROTTLE FRICTION ASSY
-
483GF-66160-0 * SHIFT UNIT ASSY* SHIFT UNIT ASSY
-
493GF-66158-0 * SHIFT LEVER KIT* SHIFT LEVER KIT
-
503GF-66198-0 * CABLE BRACKET KIT* CABLE BRACKET KIT
-
513GF-76175-0 * BUZZER KIT* BUZZER KIT
-
52346-62127-0 * CAP NUT* CAP NUT
