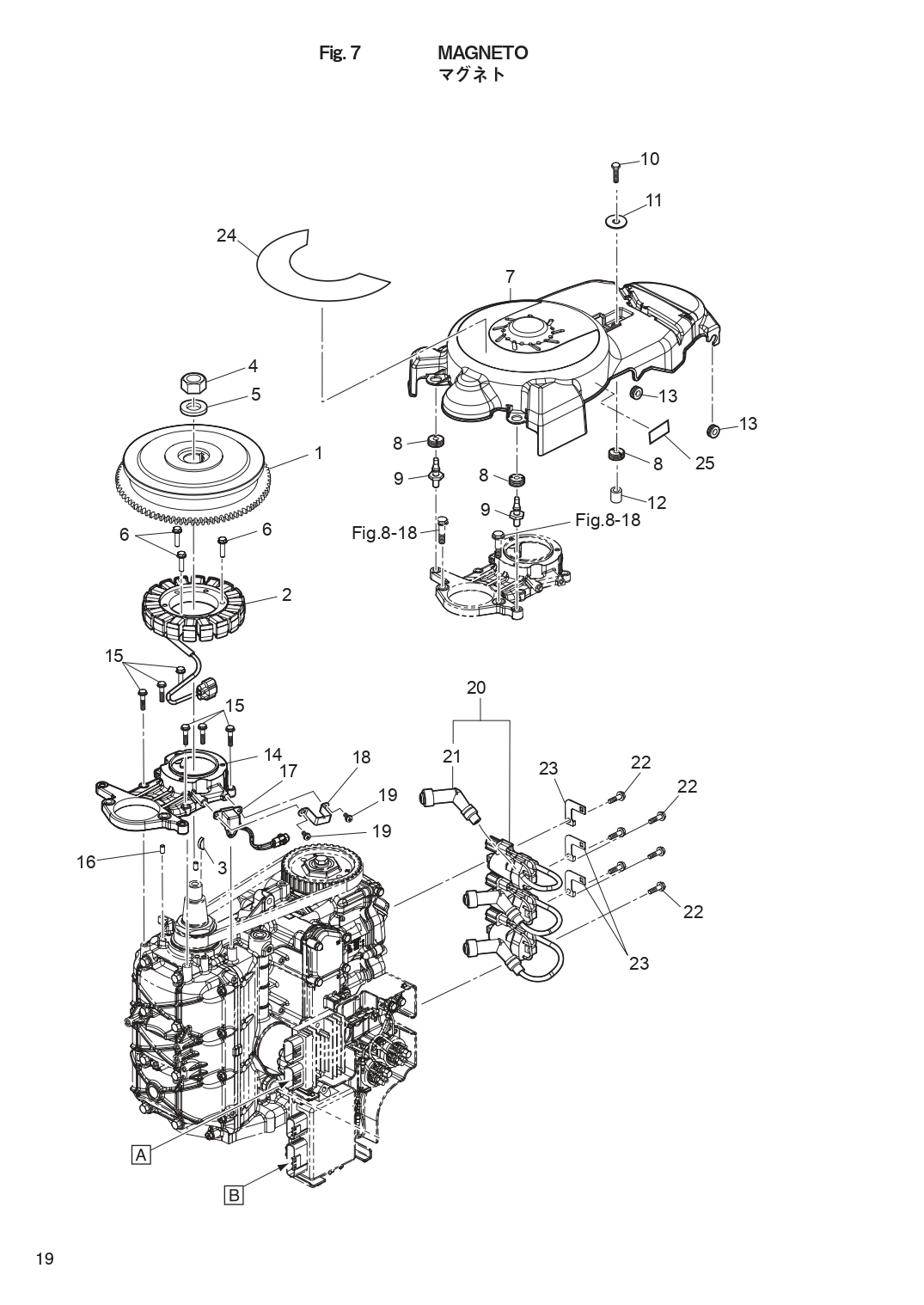

MAGNETO для Tohatsu MFS60A - 2021 года выпуска
-
№АртикулНазвание
-
13KY-06191-0 FLYWHEEL W/GEARFLYWHEEL W/GEAR
-
23KY-06123-0 ALTERNATOR ASSYALTERNATOR ASSY
-
3334-00131-0 KEY 19-7-5
MagnetoKEY 19-7-5
Magneto -
43C7-00132-0 NUT 20-P1.25 ﾅｯﾄ 20-P1.25NUT 20-P1.25 ﾅｯﾄ 20-P1.25
-
53C7-00133-0 WASHER 20.5-37-5WASHER 20.5-37-5
-
6910103-5625 BOLTBOLT
-
73KY-06301-0 RING GEAR COVERRING GEAR COVER
-
83T1-67005-0 GROMMET 16-2.5GROMMET 16-2.5
-
91E0-36056-0 HOOKHOOK
-
10910103-0620 BOLTBOLT
-
113R0-66308-0 WASHER 6-16-1.5WASHER 6-16-1.5
-
123A0-76079-0 COLLAR 6.2-9-7.4COLLAR 6.2-9-7.4
-
13172-36008-0 GROMMET 13-2GROMMET 13-2
-
143KY-06008-0 COIL BRACKETCOIL BRACKET
-
15910103-5625 BOLTBOLT
-
16345-01111-0 DOWEL PIN 6-12
Cylinder Block-Coil BracketDOWEL PIN 6-12
Cylinder Block-Coil Bracket -
173KY-06071-0 PULSAR COILPULSAR COIL
-
183KY-06070-0 PULSAR COIL GUARDPULSAR COIL GUARD
-
19921503-5512 SCREWSCREW
-
203UR-06469-0 IGNITION COIL W/R-CAPIGNITION COIL W/R-CAP
-
213AC-06999-0 * PLUG CAP W/RESISTANCE* PLUG CAP W/RESISTANCE
-
22910103-5620 BOLTBOLT
-
233KY-76174-0 STAYSTAY
-
243KZ-72181-1 CAUTION DECAL (B)
for EUCAUTION DECAL (B)
for EU -
243KY-72181-1 CAUTION DECAL (B)
for DO/US(MFS40A MFS50A) for US(MFS60A)CAUTION DECAL (B)
for DO/US(MFS40A MFS50A) for US(MFS60A) -
253KY-72194-0 FUSE DECALFUSE DECAL
