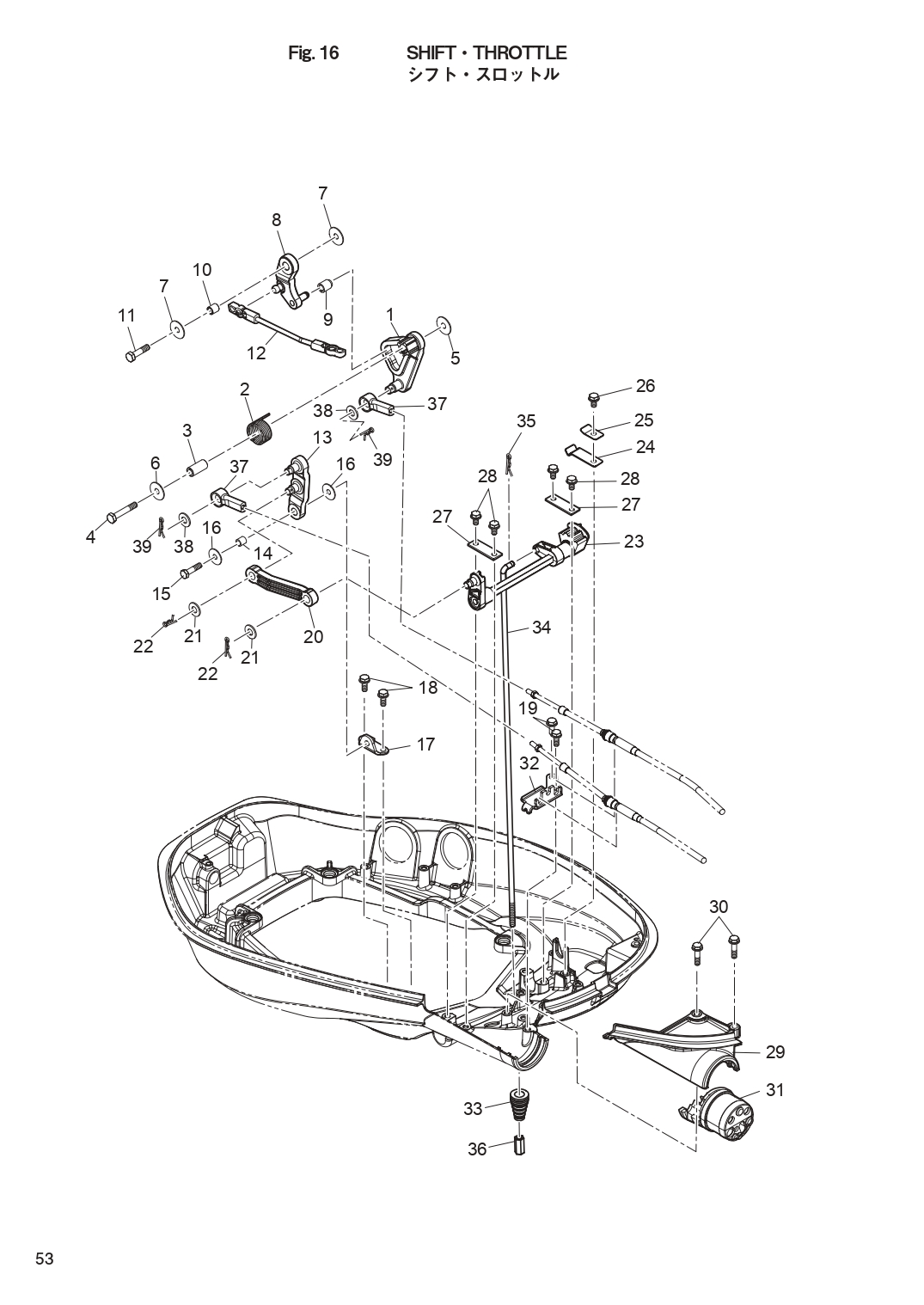

SHIFT THROTTLE для Tohatsu MFS60A - 2021 года выпуска
-
№АртикулНазвание
-
13KY-63718-0 THROTTLE CAMTHROTTLE CAM
-
23KY-63727-0 SPRINGSPRING
-
33R3-66124-0 COLLAR 6.5-10.5-22.6COLLAR 6.5-10.5-22.6
-
4910103-0635 BOLTBOLT
-
5346-67115-0 WASHER 6.5-21-1WASHER 6.5-21-1
-
6345-05122-1 WASHER 6.5-23-1.5WASHER 6.5-23-1.5
-
7346-67115-0 WASHER 6.5-21-1WASHER 6.5-21-1
-
83KY-63751-0 THROTTLE ARMTHROTTLE ARM
-
93KY-03171-0 THROTTLE ROLLERTHROTTLE ROLLER
-
103KY-76079-0 COLLAR 6.5-10.5-9.3COLLAR 6.5-10.5-9.3
-
11910103-0620 BOLTBOLT
-
123KY-63709-1 THROTTLE RODTHROTTLE ROD
-
133KY-66122-0 SHIFT ARMSHIFT ARM
-
143KY-76079-0 COLLAR 6.5-10.5-9.3COLLAR 6.5-10.5-9.3
-
15910103-0625 BOLTBOLT
-
16346-67115-0 WASHER 6.5-21-1WASHER 6.5-21-1
-
173KY-66126-0 BRACKETBRACKET
-
18910103-5616 BOLT
Shift Arm BracketBOLT
Shift Arm Bracket -
19910103-5616 BOLT
Cable ClipBOLT
Cable Clip -
203KY-66134-0 SHIFT LEVER RODSHIFT LEVER ROD
-
213AA-83719-0 WASHER 8.5-18-1.6WASHER 8.5-18-1.6
-
22951603-0800 SNAP PIN d=8SNAP PIN d=8
-
233KY-66130-0 SHIFT LEVER SHAFT ASSYSHIFT LEVER SHAFT ASSY
-
243EF-66113-0 SHIFT DETENT SPRINGSHIFT DETENT SPRING
-
253Y1-66117-0 SHIFT DETENT SUPPORTER t=0.8SHIFT DETENT SUPPORTER t=0.8
-
26910103-5612 BOLTBOLT
-
273V1-66145-0 HOLDERHOLDER
-
28910103-5612 BOLTBOLT
-
293KYQ67483-0 REMOTE CONT CABLE STAY COVERREMOTE CONT CABLE STAY COVER
-
293KYW67483-0 REMOTE CONT CABLE STAY COVER
for White ModelREMOTE CONT CABLE STAY COVER
for White Model -
30910103-5625 BOLTBOLT
-
313KY-76116-0 GROMMETGROMMET
-
323KY-83734-0 CABLE CLIPCABLE CLIP
-
333M2-66226-0 GROMMET 17-3
Shift RodGROMMET 17-3
Shift Rod -
343KY-66215-0 SHIFT ROD (L)
for Transom "L"&"UL"SHIFT ROD (L)
for Transom "L"&"UL" -
35951603-0500 SNAP PIN d=5SNAP PIN d=5
-
363KY-66241-0 SHIFT ROD JOINT M6-22SHIFT ROD JOINT M6-22
-
373B7-83715-2 CABLE JOINTCABLE JOINT
-
383AA-83719-0 WASHER 8.5-18-1.6WASHER 8.5-18-1.6
-
39951603-0800 SNAP PIN d=8SNAP PIN d=8
