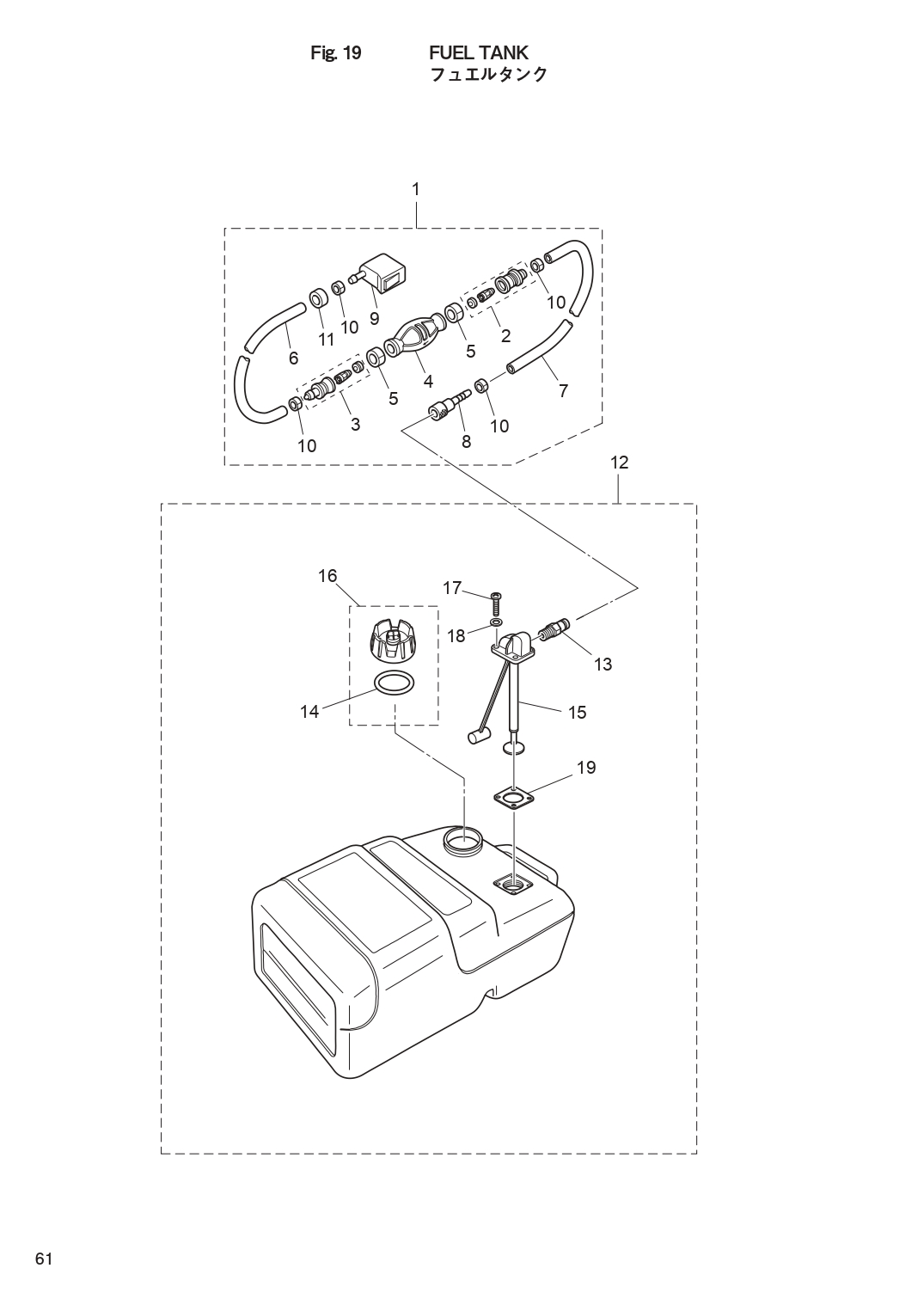

FUEL TANK для Tohatsu MFS60A - 2021 года выпуска
-
№АртикулНазвание
-
13H6-70200-2 PRIMER BULB ASSY
STDPRIMER BULB ASSY
STD -
23C7-70220-1 * JOINT ASSY (INLET)* JOINT ASSY (INLET)
-
33C7-70224-1 * JOINT ASSY (OUTLET)* JOINT ASSY (OUTLET)
-
43C7-70211-1 * PRIMER BULB
STD* PRIMER BULB
STD -
53C7-70217-0 * CLAMP* CLAMP
-
698AB-70-700 * HOSE
STD 98AB-701000* HOSE
STD 98AB-701000 -
798AB-701600 * HOSE
STD 98AB-701000 x2* HOSE
STD 98AB-701000 x2 -
83GF-70281-0 * FUEL CONNECTOR
Tank Side* FUEL CONNECTOR
Tank Side -
93GR-70250-0 * FUEL CONNECTOR
Engine Side* FUEL CONNECTOR
Engine Side -
10332-70201-0 * CLAMP* CLAMP
-
123KZ-70177-0 FUEL TANK ASSY 25LFUEL TANK ASSY 25L
-
133E0-70270-0 * QUICK-CONNECTOR (MALE)* QUICK-CONNECTOR (MALE)
-
143RS-70021-0 ** TANK FILLER CAP GASKET** TANK FILLER CAP GASKET
-
153AC-70157-0 * FUEL PICK-UP ASSY W/GAUGE* FUEL PICK-UP ASSY W/GAUGE
-
163RS-70020-0 * FUEL TANK CAP ASSY* FUEL TANK CAP ASSY
-
173AC-70140-0 * SCREW* SCREW
-
183AC-70145-0 * WASHER* WASHER
-
193AC-70150-0 * GASKET* GASKET
