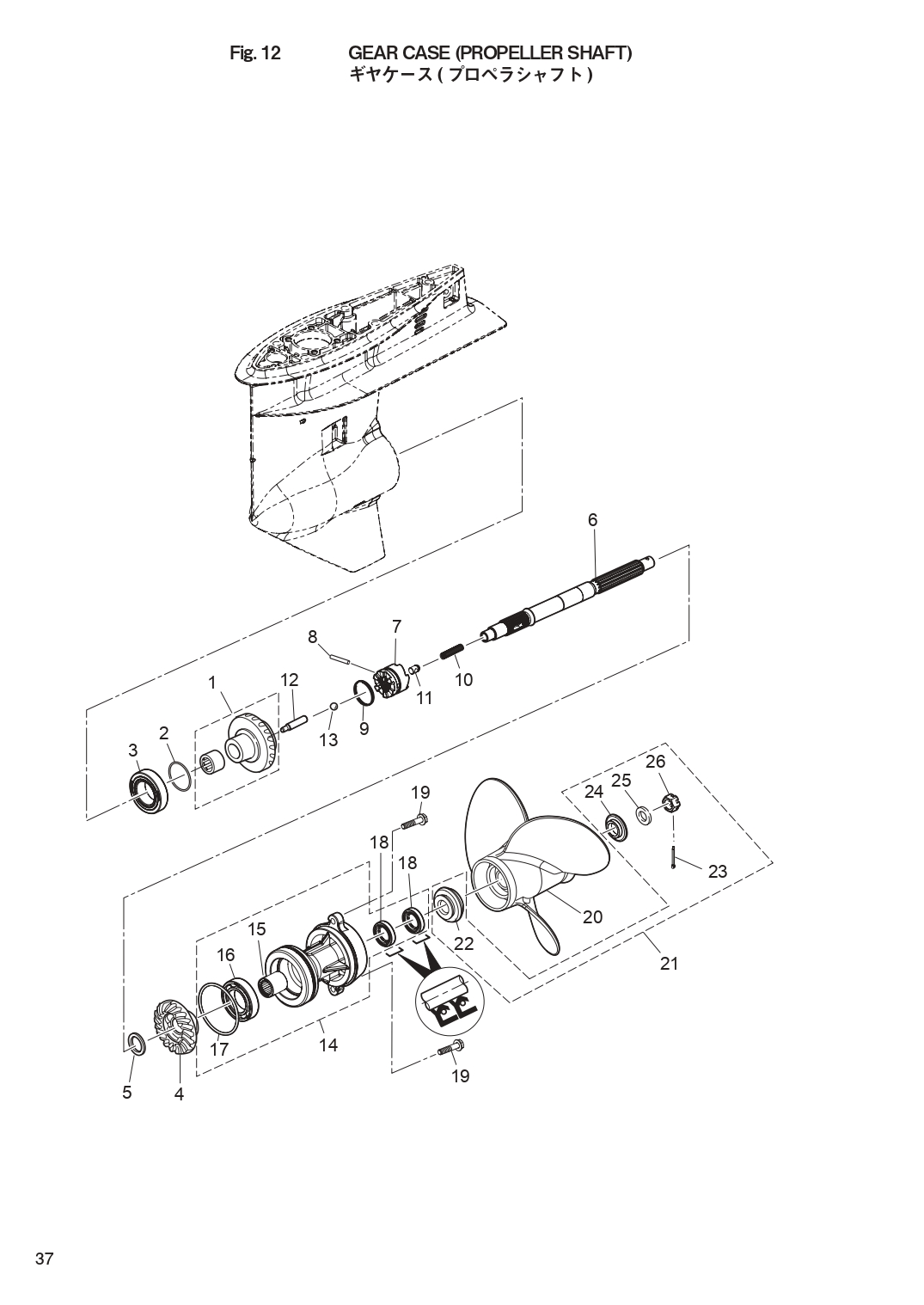

GEAR CASE (PROPELLER SHAFT) для Tohatsu MFS60A - 2021 года выпуска
-
№АртикулНазвание
-
13KY-64010-0 BEVEL GEAR ASSY (A)BEVEL GEAR ASSY (A)
-
2353-64038-0 SHIM 36-44-0.1
t=0.1SHIM 36-44-0.1
t=0.1 -
2353-64037-0 SHIM 36-44-0.15
t=0.15SHIM 36-44-0.15
t=0.15 -
2353-64036-0 SHIM 36-44-0.3
t=0.3SHIM 36-44-0.3
t=0.3 -
3345-60215-0 TAPERED ROLLER BEARING 32007TAPERED ROLLER BEARING 32007
-
43KY-64030-0 BEVEL GEAR CBEVEL GEAR C
-
53KY-64032-0 WASHER 22.1-26-3WASHER 22.1-26-3
-
63KY-64211-1 PROPELLER SHAFTPROPELLER SHAFT
-
73KY-64215-0 CLUTCHCLUTCH
-
83C8-64217-0 PINPIN
-
93C8-64219-1 SNAPSNAP
-
103C8-64221-0 SPRINGSPRING
-
113C8-64222-0 SPRING RETAINERSPRING RETAINER
-
123KY-64223-0 PUSH RODPUSH ROD
-
13965002-0803 BALL 3/8BALL 3/8
-
143KYQ87323-1 PROPELLER SHAFT HOUSING ASSYPROPELLER SHAFT HOUSING ASSY
-
143KYW87323-1 PROPELLER SHAFT HOUSING ASSY
for White ModelPROPELLER SHAFT HOUSING ASSY
for White Model -
153KY-60102-0 * ROLLER BEARING* ROLLER BEARING
-
169601-0-6007 * BALL BEARING 6007* BALL BEARING 6007
-
173KY-60103-0 * O-RING* O-RING
-
183F3-60223-0 * OIL SEAL 22-37-8* OIL SEAL 22-37-8
-
199101E3-5830 BOLTBOLT
-
20348B64108-1 PROPELLER ASSY (7")
OPT 4 x 290 x 180PROPELLER ASSY (7")
OPT 4 x 290 x 180 -
203T5B64518-1 PROPELLER ASSY (9)
OPT 3 x 311 x 229PROPELLER ASSY (9)
OPT 3 x 311 x 229 -
203T5B64523-1 PROPELLER ASSY (11)
OPT 3 x 290 x 279PROPELLER ASSY (11)
OPT 3 x 290 x 279 -
203T5B64525-1 PROPELLER ASSY (12)
OPT 3 x 283 x 305PROPELLER ASSY (12)
OPT 3 x 283 x 305 -
203T5B64527-1 PROPELLER ASSY (13)
STD 3 x 277 x 330PROPELLER ASSY (13)
STD 3 x 277 x 330 -
203T5B64529-1 PROPELLER ASSY (14")
STD 3 x 279 x 356PROPELLER ASSY (14")
STD 3 x 279 x 356 -
203T5B64532-1 PROPELLER ASSY (15)
OPT 3 x 278 x 381PROPELLER ASSY (15)
OPT 3 x 278 x 381 -
203KYB64534-1 PROPELLER ASSY (16)
OPT 3 x 406 x 279PROPELLER ASSY (16)
OPT 3 x 406 x 279 -
203KYB64536-1 PROPELLER ASSY (17)
OPT 3 x 432 x 280PROPELLER ASSY (17)
OPT 3 x 432 x 280 -
213KY-87326-0 PROPELLER HARDWARE KITPROPELLER HARDWARE KIT
-
223KY-64231-0 * THRUST HOLDER* THRUST HOLDER
-
23951503-0325 * SPLIT PIN 3-25* SPLIT PIN 3-25
-
243TW-64232-0 * STOPPER* STOPPER
-
253TW-64124-0 * WASHER 17-40-3* WASHER 17-40-3
-
26353-64121-0 * PROPELLER NUT M16P1.5* PROPELLER NUT M16P1.5
