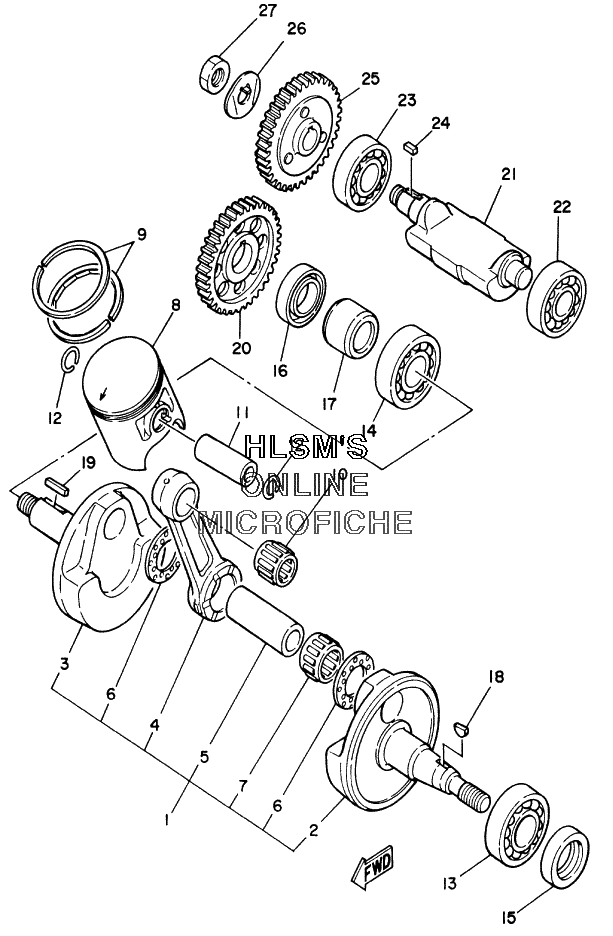

CRAKSHAFT - PISTON для Yamaha BLASTER YFS200N (5KJ4) - 2001 года выпуска
-
№АртикулНазвание
-
137F-11400-00-00 CRANKSHAFT ASSYCRANKSHAFT ASSY
-
237F-11412-00-00 ...CRANK...CRANK
-
337F-11422-00-00 ...CRANK...CRANK
-
443G-11651-00-00 ...ROD, CONNECTING...ROD, CONNECTING
-
537F-11681-00-00 ...PIN, CRANK...PIN, CRANK
-
690209-22248-00 ...WASHER...WASHER
-
793310-522L4-00 ...BEARING...BEARING
-
82XJ-11631-01-97 PISTON (STD)PISTON (STD)
-
82XJ-11635-01-00 PISTON (0.25MM O/S) (OPT)PISTON (0.25MM O/S) (OPT)
-
82XJ-11636-01-00 PISTON (0.50MM O/S) (OPT)PISTON (0.50MM O/S) (OPT)
-
93JM-11601-00-00 PISTON RING SET (STD)PISTON RING SET (STD)
-
93JM-11601-10-00 PISTON RING SET (0.25MM O/S)(OPT)PISTON RING SET (0.25MM O/S)(OPT)
-
93JM-11601-20-00 PISTON RING SET (0.50MM O/S) (OPT)PISTON RING SET (0.50MM O/S) (OPT)
-
1093310-316H6-00 BEARINGBEARING
-
114L0-11633-00-00 PIN, PISTONPIN, PISTON
-
1293450-17044-00 CIRCLIPCIRCLIP
-
1393306-20562-00 BEARINGBEARING
-
1493306-30556-00 BEARINGBEARING
-
1593102-25331-00 OIL SEALOIL SEAL
-
1693103-32099-00 OIL SEALOIL SEAL
-
1790387-206K3-00 COLLARCOLLAR
-
1890280-03017-00 KEY, WOODRUFFKEY, WOODRUFF
-
1990282-05047-00 KEY, STRAIGHTKEY, STRAIGHT
-
2010V-11536-01-00 GEAR, DRIVEGEAR, DRIVE
-
2137F-11454-00-00 WEIGHTWEIGHT
-
2293306-20211-00 BEARING (6202SH2-C3)BEARING (6202SH2-C3)
-
2393306-20335-00 BEARINGBEARING
-
2490282-05013-00 KEY, STRAIGHTKEY, STRAIGHT
-
2537F-11530-00-00 BALANCER WEIGHT GEAR COMP.BALANCER WEIGHT GEAR COMP.
-
2690215-12235-00 WASHER, LOCKWASHER, LOCK
-
2790170-12337-00 NUTNUT
