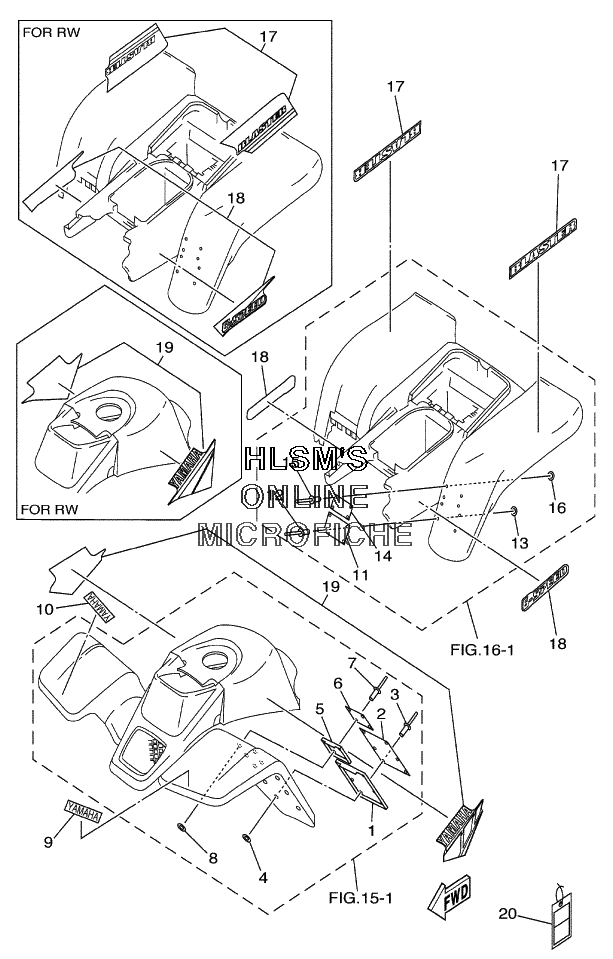

EMBLEM - LABLE для Yamaha BLASTER YFS200N (5KJ4) - 2001 года выпуска
-
№АртикулНазвание
-
14EM-21581-00-00 STAY, PLATE FITTING 1 (OUJ) (RADICAL WHITE)STAY, PLATE FITTING 1 (OUJ) (RADICAL WHITE)
-
14EM-21581-20-00 STAY, PLATE FITTING 1 (583) (DEAP PURPLISH BLUE SOLID)STAY, PLATE FITTING 1 (583) (DEAP PURPLISH BLUE SOLID)
-
25FE-21568-01-00 LABEL, WARNINGLABEL, WARNING
-
390267-32198-00 RIVET, BLINDRIVET, BLIND
-
490201-03313-00 WASHER, PLATEWASHER, PLATE
-
53JM-21591-00-00 STAY, PLATE FITTING (OUJ) (RADICAL WHITE)STAY, PLATE FITTING (OUJ) (RADICAL WHITE)
-
53JM-21591-10-00 STAY, PLATE FITTING (583) (DEEP PURPLISH BLUE SOLID)STAY, PLATE FITTING (583) (DEEP PURPLISH BLUE SOLID)
-
65FE-21697-01-00 LABEL, CAUTIONLABEL, CAUTION
-
790267-32198-00 RIVET, BLINDRIVET, BLIND
-
890201-03313-00 WASHER, PLATEWASHER, PLATE
-
93GD-2153E-00-00 EMBLEM, YAMAHA (583) (DEEP PURPLISH BLUE SOLID)EMBLEM, YAMAHA (583) (DEEP PURPLISH BLUE SOLID)
-
93GD-2153E-10-00 EMBLEM, YAMAHA (OUJ) (RADICAL WHITE)EMBLEM, YAMAHA (OUJ) (RADICAL WHITE)
-
103GD-2153E-00-00 EMBLEM, YAMAHA (583) (DEEP PURPLISH BLUE SOLID)EMBLEM, YAMAHA (583) (DEEP PURPLISH BLUE SOLID)
-
103GD-2153E-10-00 EMBLEM, YAMAHA (OUJ) (RADICAL WHITE)EMBLEM, YAMAHA (OUJ) (RADICAL WHITE)
-
113JM-21696-41-00 LABEL, CAUTIONLABEL, CAUTION
-
1290267-32018-00 RIVET, BLINDRIVET, BLIND
-
1390201-03313-00 WASHER, PLATEWASHER, PLATE
-
145FE-2151H-01-00 LABELLABEL
-
1590267-32018-00 RIVET, BLINDRIVET, BLIND
-
1690201-03313-00 WASHER, PLATEWASHER, PLATE
-
175KJ-2163G-01-00 EMBLEMEMBLEM
-
175KJ-2165A-01-00 GRAPHIC SET, REAR FENDER (OUJ) (RADICAL WHITE)GRAPHIC SET, REAR FENDER (OUJ) (RADICAL WHITE)
-
185KJ-2163H-01-00 EMBLEM (583) (DEEP PURPLISH BLUE SOLID)EMBLEM (583) (DEEP PURPLISH BLUE SOLID)
-
185KJ-2167A-01-00 GRAPHIC SET (OUJ) (RADICAL WHITE)GRAPHIC SET (OUJ) (RADICAL WHITE)
-
195KJ-2173L-10-00 GRAPHIC SET (583) (DEEP PURPLISH BLUE SOLID)GRAPHIC SET (583) (DEEP PURPLISH BLUE SOLID)
-
195KJ-2173L-20-00 GRAPHIC SET (OUJ) (RADICAL WHITE)GRAPHIC SET (OUJ) (RADICAL WHITE)
-
203JM-2819R-00-00 TAG, WARNINGTAG, WARNING
