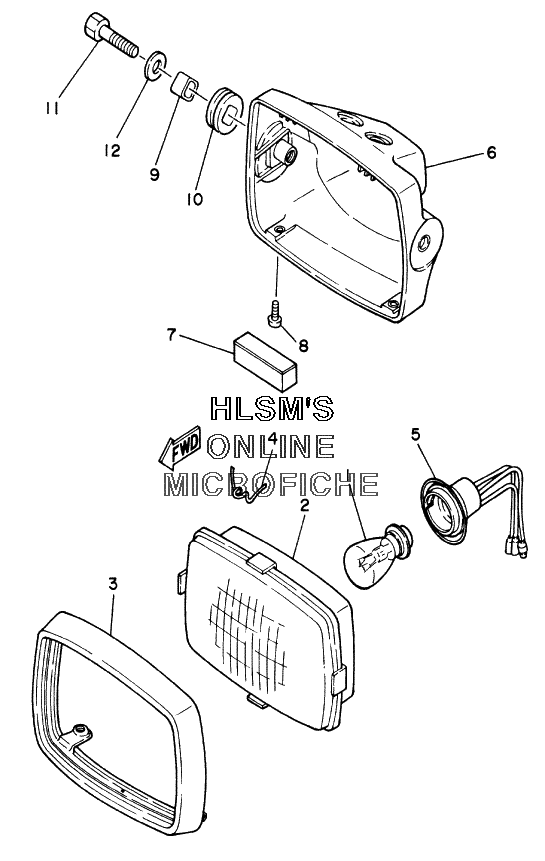

HEADLIGHT для Yamaha BLASTER YFS200N (5KJ4) - 2001 года выпуска
-
№АртикулНазвание
-
121V-84314-00-00 BULB, HEAD LIGHT (12V-45/45W)BULB, HEAD LIGHT (12V-45/45W)
-
252H-84320-00-00 LENS ASSYLENS ASSY
-
352H-84315-00-00 RIM, HEADLIGHTRIM, HEADLIGHT
-
452H-84324-00-00 SPRING, REFLECTORSPRING, REFLECTOR
-
552H-84340-00-00 SOCKET CORD ASSYSOCKET CORD ASSY
-
62XJ-84330-00-00 BODY ASSYBODY ASSY
-
72XJ-84345-00-00 DAMPER, HEADLIGHTDAMPER, HEADLIGHT
-
898507-05012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
952H-84338-00-00 COLLAR, BODY FITTINGCOLLAR, BODY FITTING
-
1052H-84345-00-00 DAMPER, HEADLIGHTDAMPER, HEADLIGHT
-
1197007-08030-00 BOLTBOLT
-
1290201-08753-00 WASHER, PLATEWASHER, PLATE
