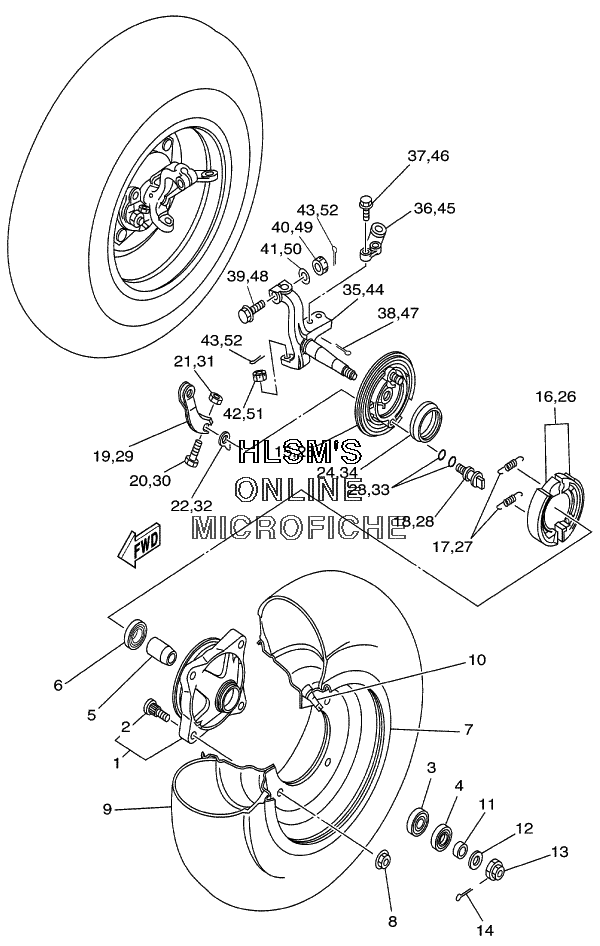

WHEEL - FRONT W/ BRAKE для Yamaha BLASTER YFS200N (5KJ4) - 2001 года выпуска
-
№АртикулНазвание
-
12XJ-25111-00-00 HUB, FRONTHUB, FRONT
-
290114-10007-00 ...BOLT, SERRATION...BOLT, SERRATION
-
393306-20205-00 BEARING (B6202)BEARING (B6202)
-
493102-22216-00 OIL SEALOIL SEAL
-
51UY-25117-00-00 SPACER, BEARINGSPACER, BEARING
-
693306-90403-00 BEARINGBEARING
-
72XJ-25180-00-35 WHEEL COMP.WHEEL COMP.
-
895707-10500-00 NUT, FLANGENUT, FLANGE
-
994107-100X3-00 TIRE (AT21X7-10KT851A T/L N)(UR) (DUNLOP)TIRE (AT21X7-10KT851A T/L N)(UR) (DUNLOP)
-
1093900-00022-00 VALVE, RIM (TAIHEIYO)VALVE, RIM (TAIHEIYO)
-
1190387-150R1-00 COLLARCOLLAR
-
1290201-14586-00 WASHER, PLATEWASHER, PLATE
-
1390171-14020-00 NUT, CASTLENUT, CASTLE
-
1491401-30025-00 PIN, COTTERPIN, COTTER
-
152XJ-25121-00-00 PLATE, BRAKE SHOEPLATE, BRAKE SHOE
-
164BE-W2536-00-00 BRAKE SHOE SETBRAKE SHOE SET
-
1790506-15260-00 SPRING, TENSIONSPRING, TENSION
-
185G3-25351-02-00 CAMSHAFTCAMSHAFT
-
1952H-25155-00-00 LEVER, CAMSHAFTLEVER, CAMSHAFT
-
2090101-06278-00 BOLTBOLT
-
2195307-06600-00 NUTNUT
-
2252H-2513A-00-00 PLATE, INDICATORPLATE, INDICATOR
-
2393210-12327-00 O-RINGO-RING
-
2493105-49023-00 OIL SEALOIL SEAL
-
252XJ-25169-00-00 PLATE, BRAKE SHOEPLATE, BRAKE SHOE
-
264BE-W2536-00-00 BRAKE SHOE SETBRAKE SHOE SET
-
2790506-15260-00 SPRING, TENSIONSPRING, TENSION
-
285G3-25351-02-00 CAMSHAFTCAMSHAFT
-
2952H-25156-00-00 LEVER, CAMSHAFTLEVER, CAMSHAFT
-
3090101-06278-00 BOLTBOLT
-
3195307-06600-00 NUTNUT
-
3252H-2513A-00-00 PLATE, INDICATORPLATE, INDICATOR
-
3393210-12327-00 O-RINGO-RING
-
3493105-49023-00 OIL SEALOIL SEAL
-
353JM-23511-01-00 KNUCKLE, STEERINGKNUCKLE, STEERING
-
362XJ-23512-01-00 ARM, KNUCKLEARM, KNUCKLE
-
3790105-10507-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
3891401-20020-00 PIN, COTTERPIN, COTTER
-
3990105-10549-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
4095337-10600-00 NUTNUT
-
4190201-10430-00 WASHER, PLATEWASHER, PLATE
-
4290171-10046-00 NUT, CASTLENUT, CASTLE
-
4391401-20020-00 PIN, COTTERPIN, COTTER
-
443JM-23521-01-00 KNUCKLE, STEERINGKNUCKLE, STEERING
-
452XJ-23522-01-00 ARM, KNUCKLEARM, KNUCKLE
-
4690105-10507-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
4791401-20020-00 PIN, COTTERPIN, COTTER
-
4890105-10549-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
4995337-10600-00 NUTNUT
-
5090201-10430-00 WASHER, PLATEWASHER, PLATE
-
5190171-10046-00 NUT, CASTLENUT, CASTLE
-
5291401-20020-00 PIN, COTTERPIN, COTTER
