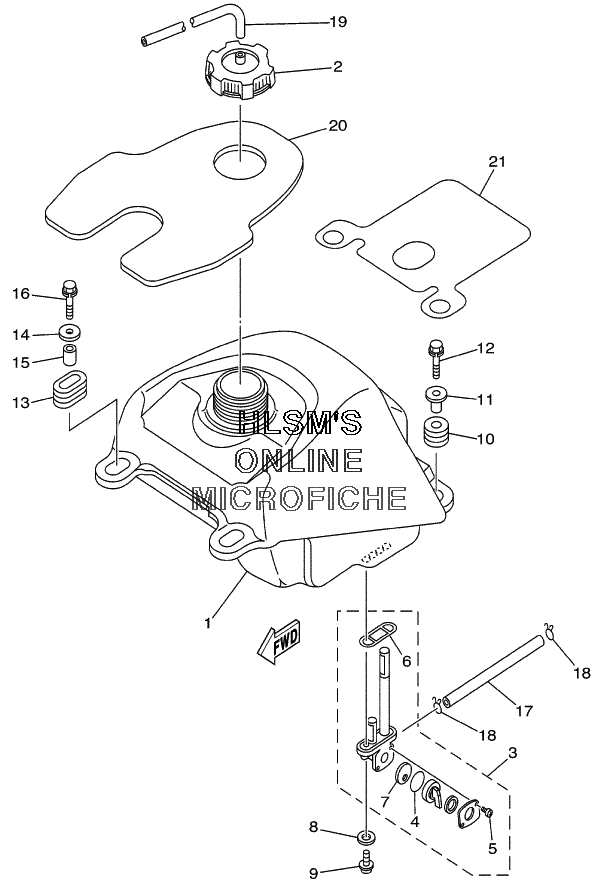

FUEL TANK для Yamaha BLASTER YFS200N (5KJ4) - 2001 года выпуска
-
№АртикулНазвание
-
12XJ-24110-00-00 FUEL TANK COMP.FUEL TANK COMP.
-
21UY-24610-00-00 CAP ASSYCAP ASSY
-
355W-24500-01-00 FUEL COCK ASSYFUEL COCK ASSY
-
43AJ-24534-00-00 ...SEAL, COCK...SEAL, COCK
-
597801-03008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
64X8-24512-00-00 ...O-RING...O-RING
-
73AJ-24523-00-00 ...VALVE PACKING...VALVE PACKING
-
890202-05193-00 WASHER, PLATEWASHER, PLATE
-
990149-06011-00 SCREWSCREW
-
1090480-18290-00 GROMMETGROMMET
-
1190387-066H4-00 COLLARCOLLAR
-
1290119-06073-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1390480-01400-00 GROMMETGROMMET
-
1490201-060L5-00 WASHER, PLATEWASHER, PLATE
-
1590387-07598-00 COLLARCOLLAR
-
1690119-06073-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1790445-100E9-00 HOSE (L155)HOSE (L155)
-
1890467-09006-00 CLIPCLIP
-
1990445-084J1-00 HOSE (L420)HOSE (L420)
-
202XJ-2414H-01-00 DAMPER, PLATEDAMPER, PLATE
-
213JM-2414J-00-00 DAMPER, PLATEDAMPER, PLATE
