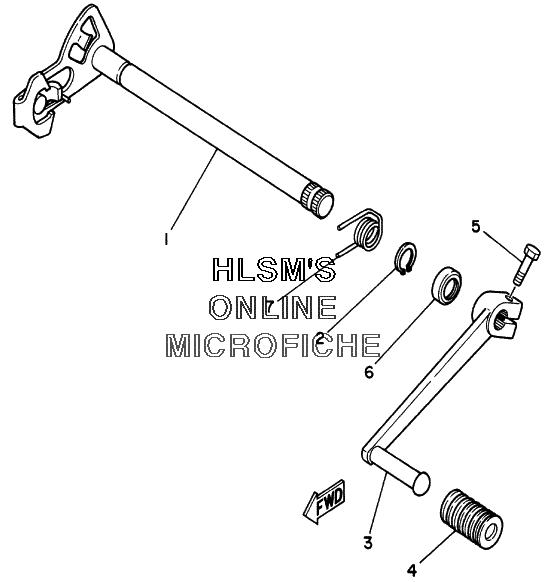

SHIFT SHAFT для Yamaha BLASTER YFS200N (5KJ4) - 2001 года выпуска
-
№АртикулНазвание
-
137F-18101-02-00 SHIFT SHAFT ASSYSHIFT SHAFT ASSY
-
299001-10600-00 CIRCLIPCIRCLIP
-
32XJ-18111-00-00 PEDAL, SHIFTPEDAL, SHIFT
-
4132-18113-01-00 COVER, SHIFT PEDALCOVER, SHIFT PEDAL
-
597017-06020-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
693101-12173-00 OIL SEALOIL SEAL
-
790508-32553-00 SPRING, TORSIONSPRING, TORSION
