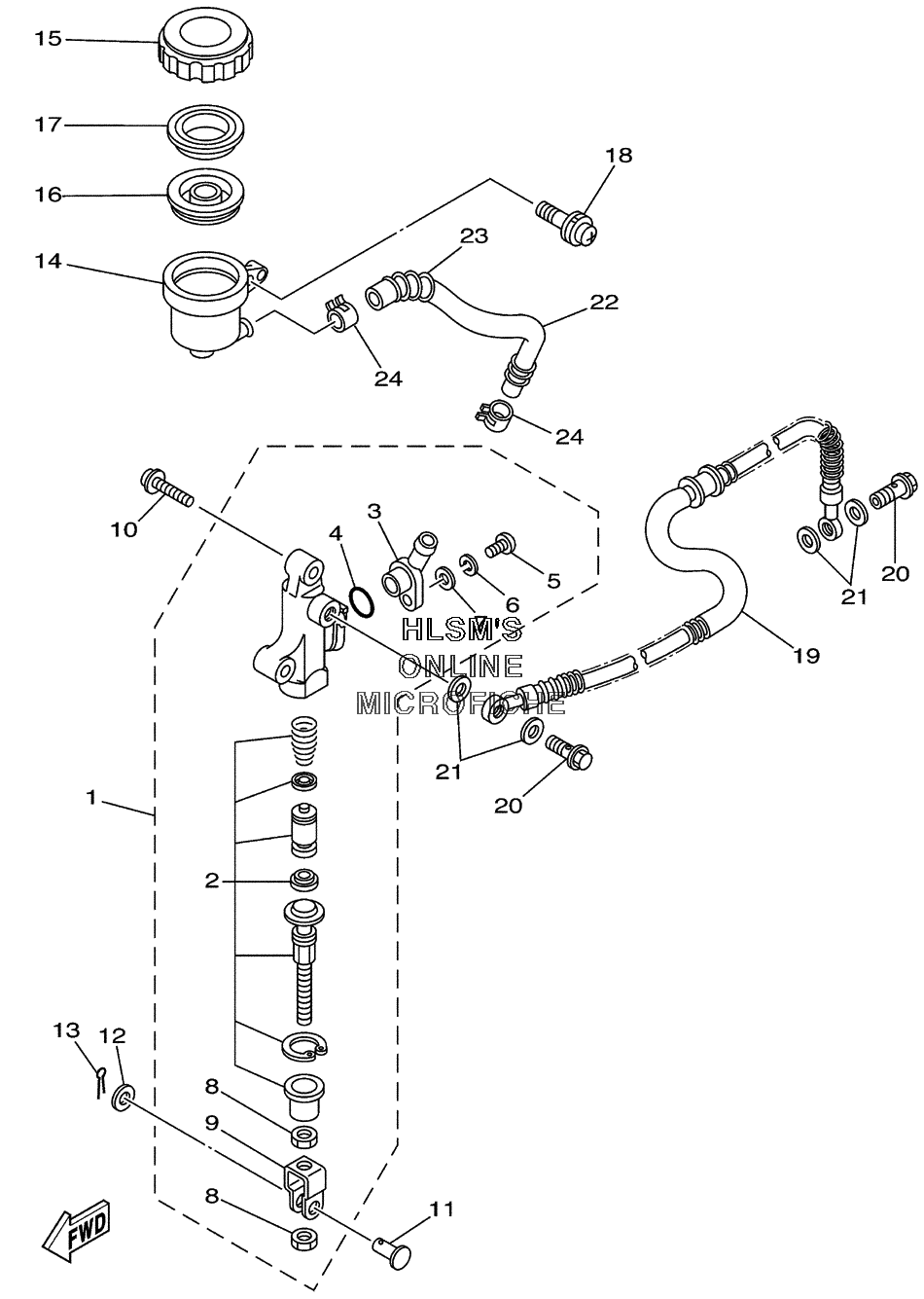

BRAKE - REAR MASTER CYLINDER для Yamaha WARRIOR YFM350XPC CALAFORNIA (5NF4) - 2002 года выпуска
-
№АртикулНазвание
-
13GD-2583V-10-00 RR. MASTER CYLINDER ASSY.RR. MASTER CYLINDER ASSY.
-
23GD-W0042-50-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
329L-2582A-50-00 ...JOINT...JOINT
-
493210-15620-00 ....O-RING....O-RING
-
598506-04012-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
692906-04100-00 ...WASHER, SPRING...WASHER, SPRING
-
792906-04600-00 ...WASHER, PLATE...WASHER, PLATE
-
84SS-27218-00-00 ....NUT....NUT
-
92YK-27222-00-00 ....JOINT....JOINT
-
1092017-08030-00 BOLT, BUTTONBOLT, BUTTON
-
1190240-08013-00 PIN, CLEVISPIN, CLEVIS
-
1290201-08083-00 WASHER, PLATEWASHER, PLATE
-
1391401-16012-00 PIN, COTTERPIN, COTTER
-
1447X-25894-00-00 TANK, RESERVOIRTANK, RESERVOIR
-
152KF-25852-50-00 CAP, RESERVOIRCAP, RESERVOIR
-
16360-25854-01-00 DIAPHRAGM, RESERVOIRDIAPHRAGM, RESERVOIR
-
172GU-25855-00-00 BUSH, DIAPHRAGMBUSH, DIAPHRAGM
-
1890159-06056-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
193GD-25874-02-00 HOSE, BRAKEHOSE, BRAKE
-
2090401-10159-00 BOLT, UNIONBOLT, UNION
-
2190201-10118-00 WASHER, PLATEWASHER, PLATE
-
221UY-25895-00-00 HOSE, RESERVOIRHOSE, RESERVOIR
-
2390501-102E8-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
2490467-14057-00 CLIPCLIP
