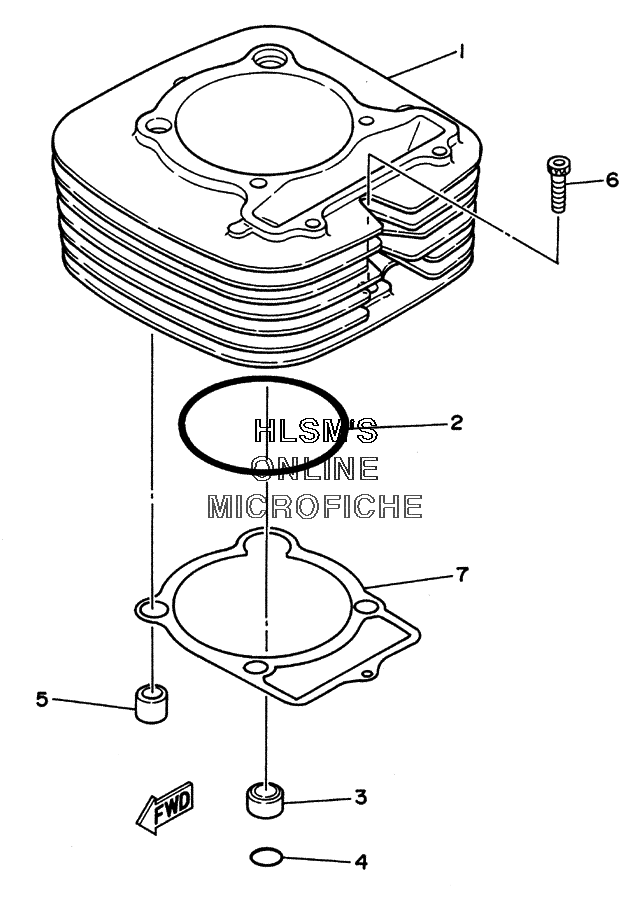

CYLINDER для Yamaha WARRIOR YFM350XPC CALAFORNIA (5NF4) - 2002 года выпуска
-
№АртикулНазвание
-
11UY-11310-03-00 CYLINDERCYLINDER
-
293210-86509-00 O-RINGO-RING
-
390387-16547-00 COLLARCOLLAR
-
493210-18322-00 O-RINGO-RING
-
599530-14016-00 PIN, DOWELPIN, DOWEL
-
691317-06030-00 BOLTBOLT
-
74KB-11351-00-00 GASKET, CYLINDERGASKET, CYLINDER
