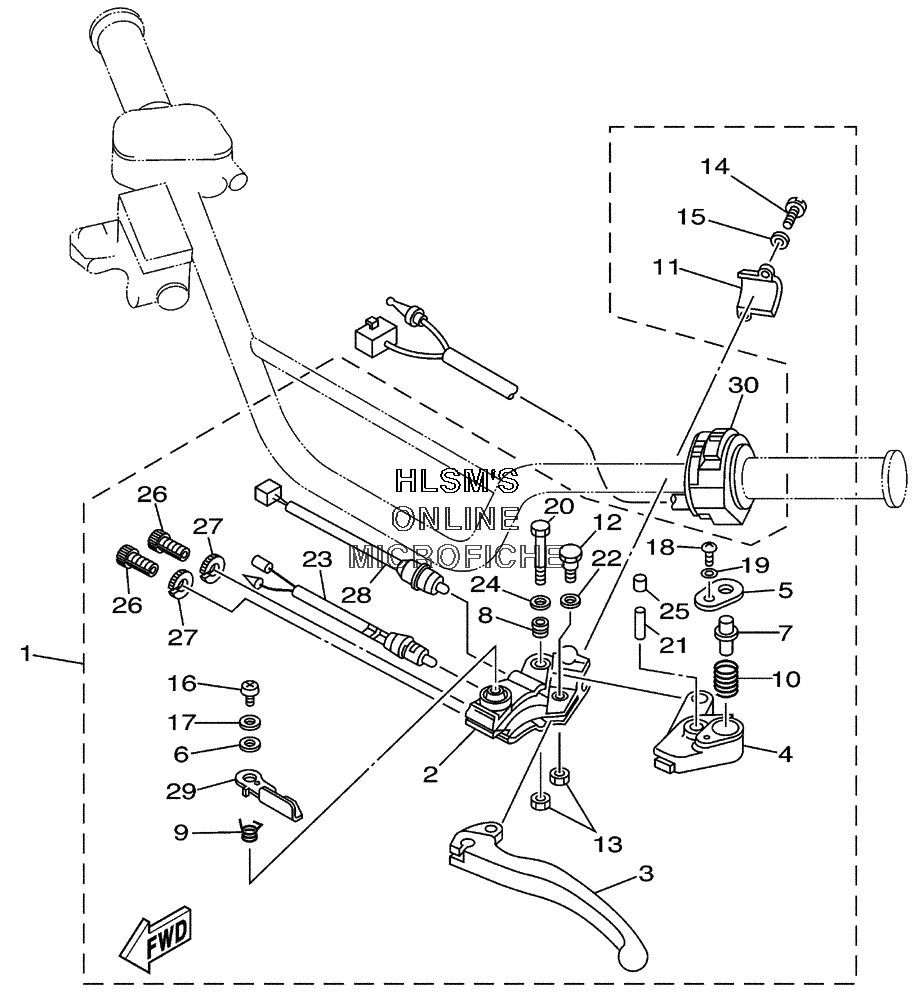

HANDLEBAR W/ SWITCHES AND LEVERS для Yamaha WARRIOR YFM350XPC CALAFORNIA (5NF4) - 2002 года выпуска
-
№АртикулНазвание
-
15LP-82910-00-00 LEVER HOLDER ASSY (LEFT)LEVER HOLDER ASSY (LEFT)
-
24KB-82911-00-00 ...HOLDER, LEVER 1...HOLDER, LEVER 1
-
35LP-83912-00-00 ....LEVER 1....LEVER 1
-
41UY-83922-01-00 ...LEVER 2...LEVER 2
-
51UY-83935-00-00 ...COVER...COVER
-
61UY-83909-00-00 ....WASHER, SPECIAL....WASHER, SPECIAL
-
71UY-83967-00-00 ...PIN, LOCK 1...PIN, LOCK 1
-
81UY-83913-00-00 ....COLLAR, LEVER 1....COLLAR, LEVER 1
-
91UY-83966-00-00 ....SPRING, RETURN....SPRING, RETURN
-
101UY-83962-00-00 ....SPRING....SPRING
-
112XJ-82913-00-00 ....HOLDER, LEVER LOWER 1....HOLDER, LEVER LOWER 1
-
1290109-06576-00 ...BOLT...BOLT
-
1395607-06100-00 ...NUT, U...NUT, U
-
1497027-06025-00 ...BOLT...BOLT
-
1592907-06600-00 ...WASHER, PLATE...WASHER, PLATE
-
1698507-05010-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1792907-05600-00 ...WASHER, PLATE...WASHER, PLATE
-
1898507-03008-00 ....SCREW....SCREW
-
1992907-03600-00 ....WASHER....WASHER
-
2097007-06040-00 ...BOLT...BOLT
-
2191690-40022-00 ....PIN, SPRING....PIN, SPRING
-
2290201-082A9-00 ...WASHER, PLATE...WASHER, PLATE
-
231UY-82917-00-00 ....SWITCH....SWITCH
-
2492907-06200-00 ...WASHER...WASHER
-
251UY-83956-00-00 ....CAP 1....CAP 1
-
2690123-08046-00 ...BOLT...BOLT
-
2790179-08148-00 ...NUT...NUT
-
284KB-82917-00-00 ....SWITCH....SWITCH
-
294KB-83965-00-00 ...LEVER, LOCK...LEVER, LOCK
-
304KB-83973-00-00 SWITCH, HANDLE 3SWITCH, HANDLE 3
