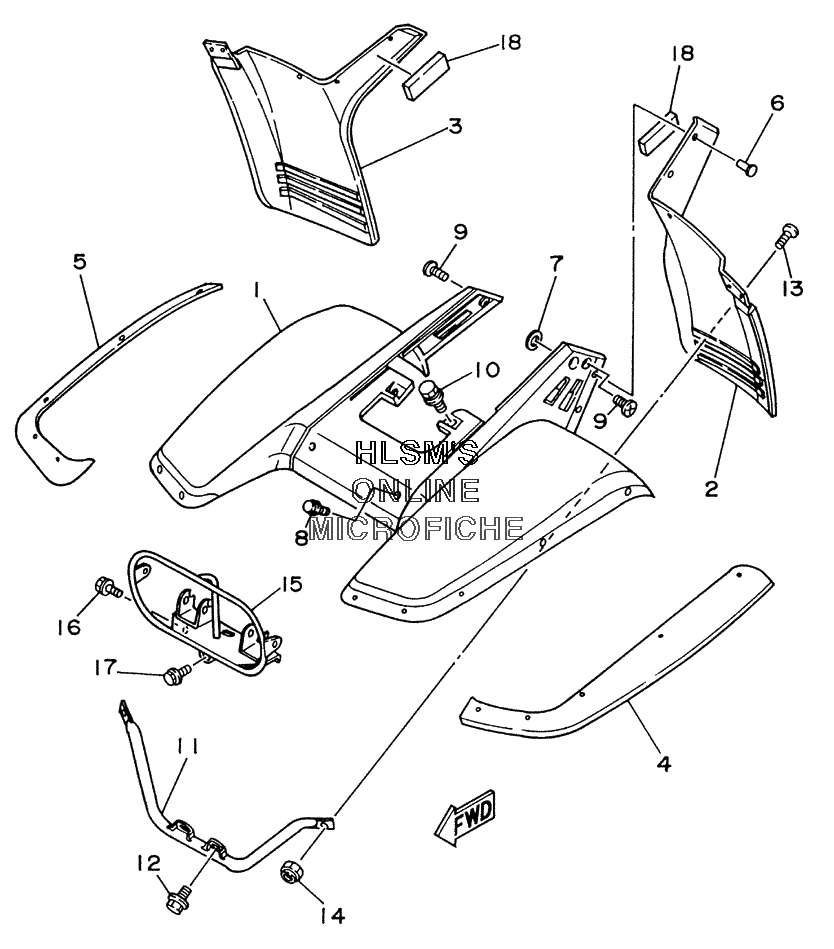

FENDER - FRONT для Yamaha WARRIOR YFM350XPC CALAFORNIA (5NF4) - 2002 года выпуска
-
№АртикулНазвание
-
13GD-W2151-F2-00 FRONT FENDER COMP. (DEEP PURPLISH BLUE SOLID E) (DPBSE)FRONT FENDER COMP. (DEEP PURPLISH BLUE SOLID E) (DPBSE)
-
13GD-W2151-G2-00 FRONT FENDER COMP. (YAMAHA BLACK) (YB)FRONT FENDER COMP. (YAMAHA BLACK) (YB)
-
23GD-W2153-11-00 FLAP ASSY 1FLAP ASSY 1
-
31UY-21561-00-00 FLAP 2FLAP 2
-
41UY-21551-00-00 FENDER, OVERFENDER, OVER
-
51UY-21555-00-00 FENDER, OVER 2FENDER, OVER 2
-
690267-48014-00 RIVET, BLINDRIVET, BLIND
-
790201-04325-00 WASHER, PLATEWASHER, PLATE
-
890119-06044-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
990110-05201-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1090119-06044-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
111UY-21513-00-00 STAY, FENDER 1STAY, FENDER 1
-
1295827-06010-00 BOLT, FLANGEBOLT, FLANGE
-
1390149-06184-00 SCREWSCREW
-
1495607-06100-00 NUT, UNUT, U
-
153GD-23174-20-00 STAY, HEADLIGHTSTAY, HEADLIGHT
-
1695827-06010-00 BOLT, FLANGEBOLT, FLANGE
-
1795827-08012-00 BOLT, FLANGEBOLT, FLANGE
-
181UY-21747-00-00 DAMPERDAMPER
