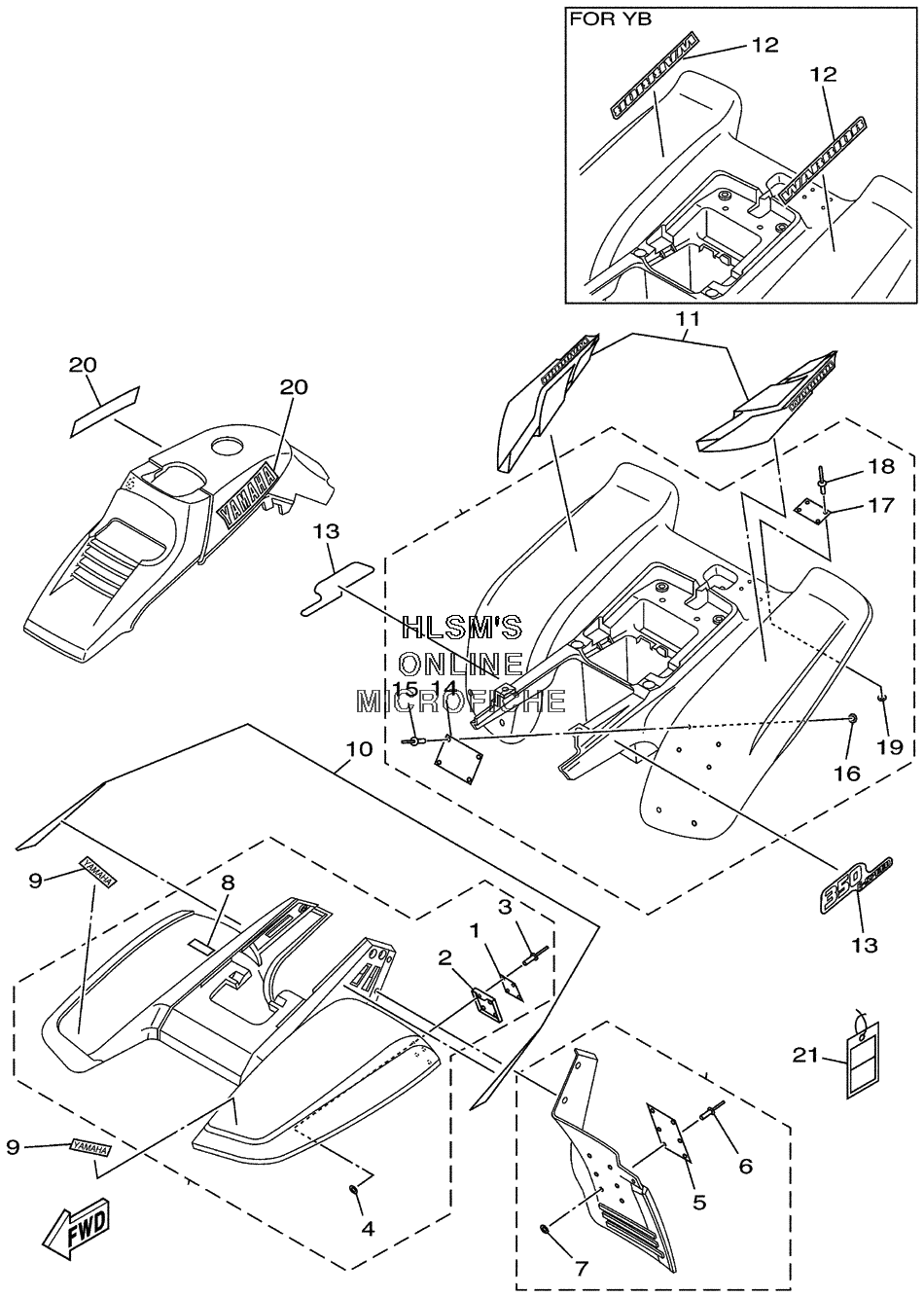

EMBLEM LABEL для Yamaha WARRIOR YFM350XPC CALAFORNIA (5NF4) - 2002 года выпуска
-
№АртикулНазвание
-
15FE-21697-01-00 LABEL, CAUTION 2LABEL, CAUTION 2
-
23JM-21591-10-00 STAY, PLATE FITTING 2 (DEEP PURPLISH BLUE SOLID E) (DPBSE)STAY, PLATE FITTING 2 (DEEP PURPLISH BLUE SOLID E) (DPBSE)
-
23JM-21591-40-00 STAY, PLATE FITTING 2STAY, PLATE FITTING 2
-
390267-32198-00 RIVET, BLINDRIVET, BLIND
-
490201-03313-00 WASHER, PLATEWASHER, PLATE
-
55FE-21568-01-00 LABEL, WARNINGLABEL, WARNING
-
690267-32004-00 RIVET, BLINDRIVET, BLIND
-
790201-03313-00 WASHER, PLATEWASHER, PLATE
-
83GD-2151E-A0-00 LABEL 2LABEL 2
-
93GD-2153E-00-00 EMBLEM, YAMAHA (DEEP PURPLISH BLUE SOLID E) (DPBSE)EMBLEM, YAMAHA (DEEP PURPLISH BLUE SOLID E) (DPBSE)
-
93GD-2153E-10-00 EMBLEM, YAMAHA (YAMAHA BLACK) (YB)EMBLEM, YAMAHA (YAMAHA BLACK) (YB)
-
103GD-2157A-20-00 GRAPHIC SET, FRONT FENDER (DEEP PURPLISH BLUE SOLID E) (DPBSE)GRAPHIC SET, FRONT FENDER (DEEP PURPLISH BLUE SOLID E) (DPBSE)
-
103GD-2157A-30-00 GRAPHIC SET, FRONT FENDER (YAMAHA BLACK) (YB)GRAPHIC SET, FRONT FENDER (YAMAHA BLACK) (YB)
-
113GD-2165B-30-00 GRAPHIC SET, REAR FENDER (DEEP PURPLISH BLUE SOLID E) (DPBSE)GRAPHIC SET, REAR FENDER (DEEP PURPLISH BLUE SOLID E) (DPBSE)
-
125NF-2163G-00-00 EMBLEM 1 (YAMAHA BLACK) (YB)EMBLEM 1 (YAMAHA BLACK) (YB)
-
133GD-21784-20-00 EMBLEM 4 (DEEP PURPLISH BLUE SOLID E) (DPBSE)EMBLEM 4 (DEEP PURPLISH BLUE SOLID E) (DPBSE)
-
133GD-21784-30-00 EMBLEM 4 (YAMAHA BLACK) (YB)EMBLEM 4 (YAMAHA BLACK) (YB)
-
143GD-21696-31-00 LABEL, CAUTIONLABEL, CAUTION
-
1590267-32004-00 RIVET, BLINDRIVET, BLIND
-
1690201-03313-00 WASHER, PLATEWASHER, PLATE
-
175FE-2151H-01-00 LABEL 5LABEL 5
-
1890267-32004-00 RIVET, BLINDRIVET, BLIND
-
1990201-03313-00 WASHER, PLATEWASHER, PLATE
-
2099241-00200-00 EMBLEM, YAMAHA (DEEP PURPLISH BLUE SOLID E) (DPBSE)EMBLEM, YAMAHA (DEEP PURPLISH BLUE SOLID E) (DPBSE)
-
2099246-00200-00 EMBLEM, YAMAHA (YAMAHA BLACK) (YB)EMBLEM, YAMAHA (YAMAHA BLACK) (YB)
-
215LP-2819R-00-00 TAG, WARNINGTAG, WARNING
