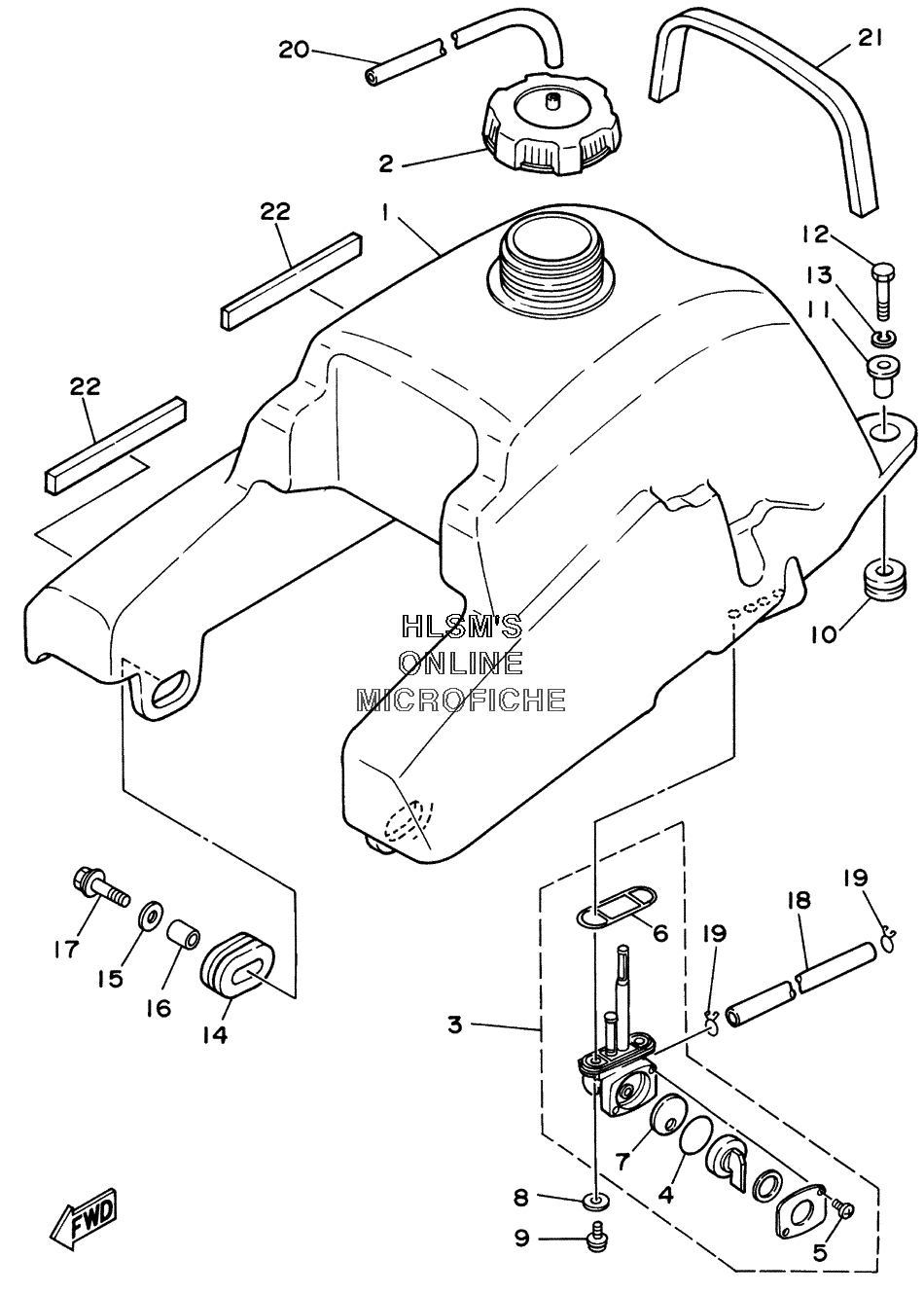

FUEL TANK для Yamaha WARRIOR YFM350XPC CALAFORNIA (5NF4) - 2002 года выпуска
-
№АртикулНазвание
-
11UY-24110-01-00 FUEL TANK COMP.FUEL TANK COMP.
-
25KM-24610-00-00 CAP ASSYCAP ASSY
-
321V-24500-10-00 FUEL COCK ASSY 1FUEL COCK ASSY 1
-
43AJ-24534-00-00 ....SEAL, COCK....SEAL, COCK
-
597801-03008-00 ....SCREW, PAN HEAD....SCREW, PAN HEAD
-
64X8-24512-00-00 ....O-RING....O-RING
-
73AJ-24523-00-00 ....VALVE PACKING....VALVE PACKING
-
890202-05193-00 WASHER, PLATEWASHER, PLATE
-
990149-06011-00 SCREWSCREW
-
1090480-18290-00 GROMMETGROMMET
-
1190387-066H4-00 COLLARCOLLAR
-
1297007-06030-00 BOLTBOLT
-
1392907-06100-00 WASHER, SPRINGWASHER, SPRING
-
1490480-01400-00 GROMMETGROMMET
-
1590201-060L5-00 WASHER, PLATEWASHER, PLATE
-
1690387-07598-00 COLLARCOLLAR
-
1790119-06073-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1890445-11663-00 HOSE (L170)HOSE (L170)
-
1990467-10008-00 CLIPCLIP
-
2090445-084J1-00 HOSE (L420)HOSE (L420)
-
211UY-2414H-00-00 DAMPER, PLATE 1DAMPER, PLATE 1
-
223GD-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
