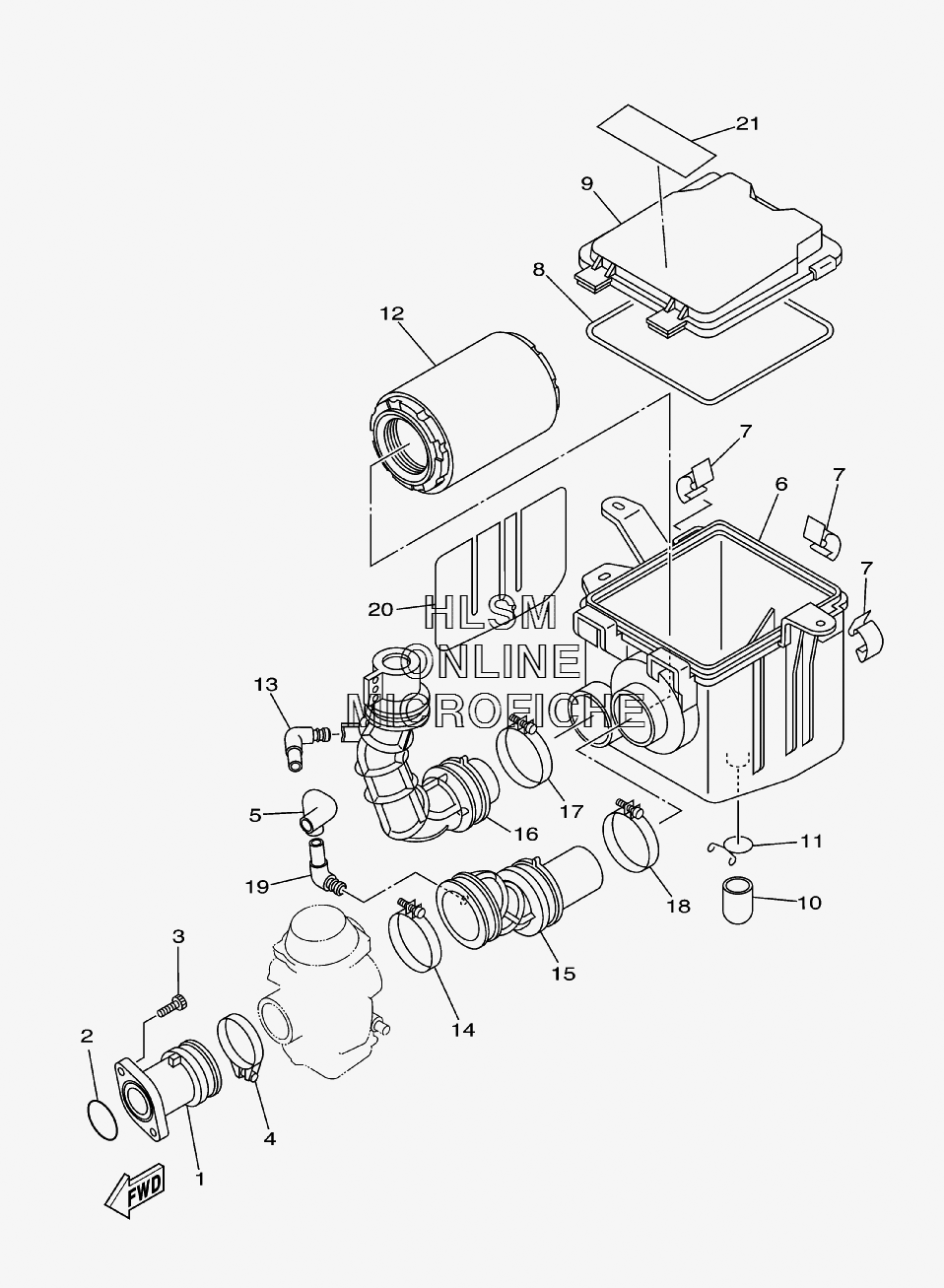

AIR CLEANER W/ INTAKE для Yamaha BIG BEAR 250 - 2007 года выпуска
-
№АртикулНазвание
-
11P0-13586-00-00 JOINT, CARBURETOR 1JOINT, CARBURETOR 1
-
293210-35895-00 O-RINGO-RING
-
391317-06020-00 BOLTBOLT
-
490450-47001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
55UH-E4349-00-00 PIPEPIPE
-
64XE-E4411-00-00 CASE, AIR CLEANER 1CASE, AIR CLEANER 1
-
7JN6-E4424-00-00 CLIP, CAP FITTINGCLIP, CAP FITTING
-
84XE-E4462-00-00 SEALSEAL
-
94XE-E4412-00-00 CAP, CLEANER CASE 1CAP, CLEANER CASE 1
-
104XE-E4457-00-00 SEALSEAL
-
114XE-E4438-00-00 CLIP, DRAIN CLEANERCLIP, DRAIN CLEANER
-
124XE-E4450-00-00 ELEMENT ASSY, AIR CLEANERELEMENT ASSY, AIR CLEANER
-
1331A-14419-00-00 PIPEPIPE
-
1490450-56006-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
151P0-E4453-00-00 JOINT, AIR CLEANER 1JOINT, AIR CLEANER 1
-
164XE-E4437-00-00 DUCTDUCT
-
1790460-58124-00 CLAMP, HOSECLAMP, HOSE
-
1890450-56006-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
1931A-14419-00-00 PIPEPIPE
-
204XE-E442F-00-00 PROTECTORPROTECTOR
-
211P0-2177C-00-00 PLATE, EPA OFFROAD ATV 1PLATE, EPA OFFROAD ATV 1
