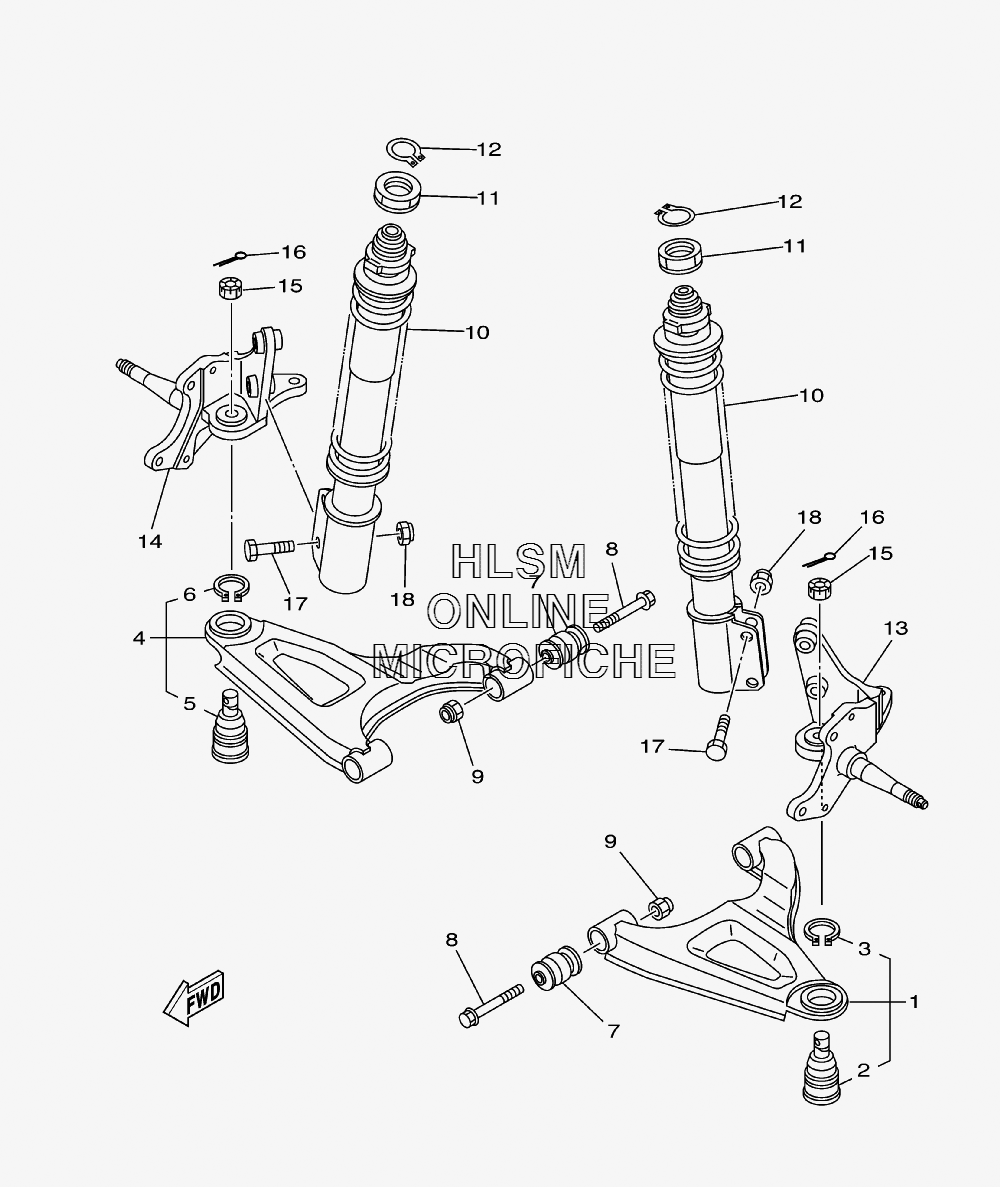

SUSPENSION - FRONT WHEEL для Yamaha BIG BEAR 250 - 2007 года выпуска
-
№АртикулНазвание
-
14XE-F3570-10-00 FRONT LOWER ARM COMP. (LEFT)FRONT LOWER ARM COMP. (LEFT)
-
24XE-F3549-00-00 ...BALL JOINT 1...BALL JOINT 1
-
393410-32826-00 ...CIRCLIP, OUTER...CIRCLIP, OUTER
-
44XE-F3580-10-00 FRONT LOWER ARM COMP. (RIGHT)FRONT LOWER ARM COMP. (RIGHT)
-
54XE-F3549-00-00 ...BALL JOINT 1...BALL JOINT 1
-
693410-32826-00 ...CIRCLIP, OUTER...CIRCLIP, OUTER
-
72HR-23526-00-00 BUSHBUSH
-
890105-10890-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
990185-10844-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
104XE-F3350-10-00 SHOCK ABSORBER ASSYSHOCK ABSORBER ASSY
-
1190179-35625-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
1293410-32826-00 CIRCLIP, OUTERCIRCLIP, OUTER
-
134XE-F3501-20-00 STEERING KNUCKLE ASSY (LEFT)STEERING KNUCKLE ASSY (LEFT)
-
144XE-F3502-20-00 STEERING KNUCKLE ASSY (RIGHT)STEERING KNUCKLE ASSY (RIGHT)
-
1590171-12816-00 NUT, CASTLENUT, CASTLE
-
1691401-25020-00 PIN, COTTERPIN, COTTER
-
1790101-12882-00 BOLTBOLT
-
189561P-12100-00 NUTNUT
