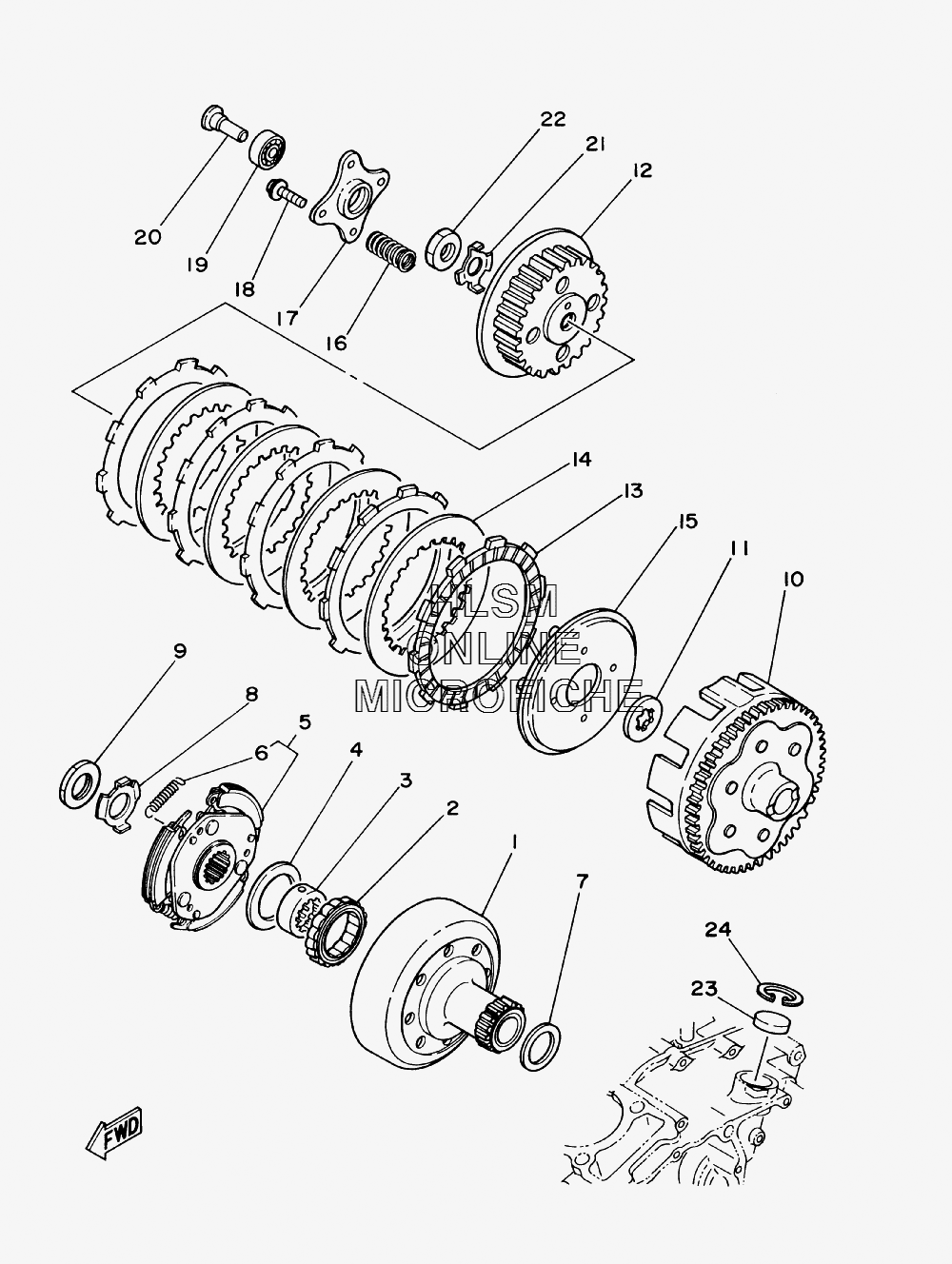

CLUTCH для Yamaha BIG BEAR 250 - 2007 года выпуска
-
№АртикулНазвание
-
15XG-E6611-00-00 CLUTCH HOUSING COMP.CLUTCH HOUSING COMP.
-
221V-16664-00-00 BEARING, ONE WAYBEARING, ONE WAY
-
35XG-E6665-00-00 RETAINER, BEARINGRETAINER, BEARING
-
490201-404M6-00 WASHER, PLATEWASHER, PLATE
-
55XG-E6620-00-00 CLUTCH CARRIER ASSYCLUTCH CARRIER ASSY
-
65XG-E6626-00-00 ...SPRING, CLUTCH WEIGHT 1...SPRING, CLUTCH WEIGHT 1
-
790201-266F6-00 WASHER, PLATEWASHER, PLATE
-
890215-22259-00 WASHER, LOCKWASHER, LOCK
-
990170-22371-00 NUTNUT
-
105XG-E6150-00-00 PRIMARY DRIVEN GEAR COMP.PRIMARY DRIVEN GEAR COMP.
-
115XG-E6154-00-00 PLATE, THRUST 1PLATE, THRUST 1
-
125XG-E6371-00-00 BOSS, CLUTCHBOSS, CLUTCH
-
135XG-E6321-00-00 PLATE, FRICTIONPLATE, FRICTION
-
145XG-E6324-00-00 PLATE, CLUTCH 1PLATE, CLUTCH 1
-
155XG-E6351-00-00 PLATE, PRESSURE 1PLATE, PRESSURE 1
-
1690501-243J7-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
175XG-E6352-00-00 PLATE, PRESSURE 2PLATE, PRESSURE 2
-
1890159-05011-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
1993306-00006-00 BEARINGBEARING
-
2021V-16358-00-00 PLATE, PUSHPLATE, PUSH
-
2190215-14186-00 WASHER, LOCKWASHER, LOCK
-
2290170-14839-00 NUTNUT
-
2390338-26136-00 PLUG, SPEC'L SHAPEPLUG, SPEC'L SHAPE
-
2493420-28055-00 CIRCLIP, R-TYPECIRCLIP, R-TYPE
