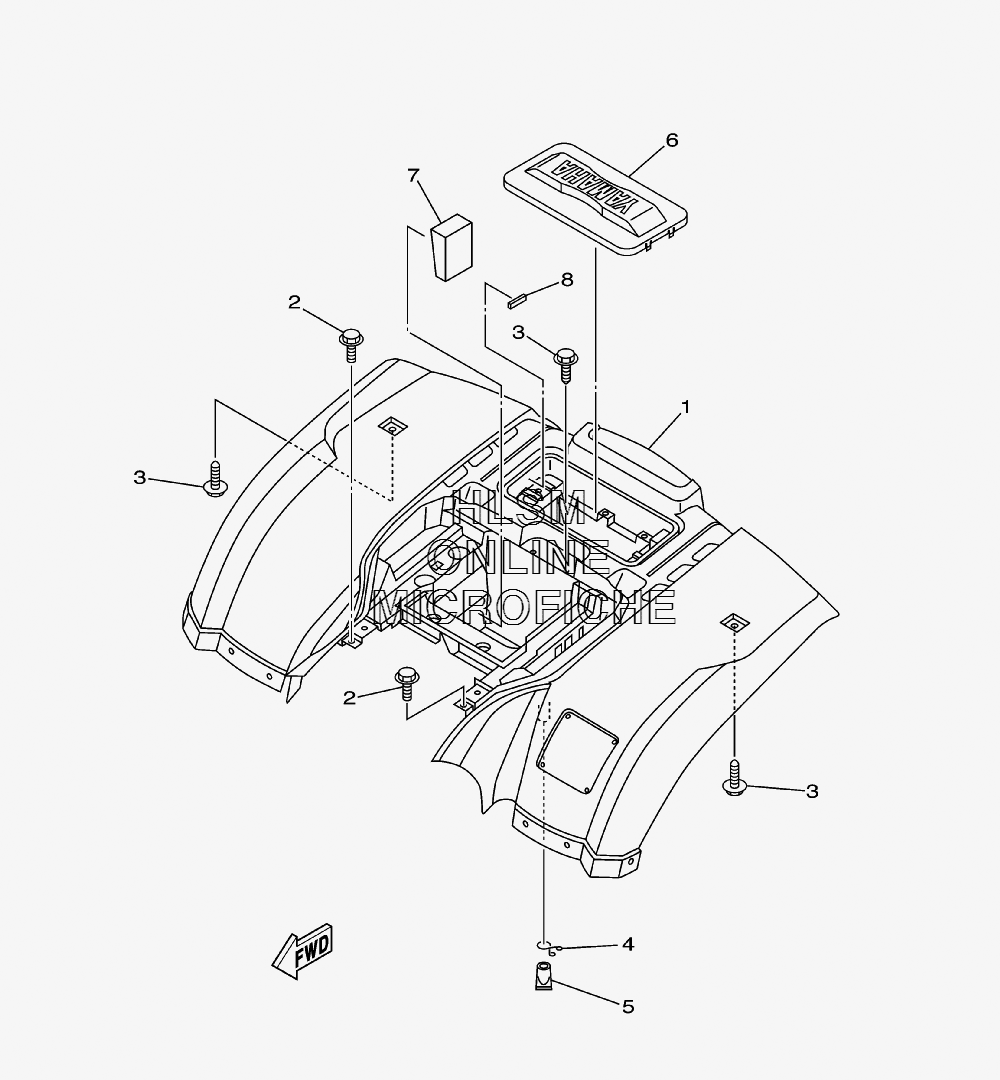

FENDER - REAR для Yamaha BIG BEAR 250 - 2007 года выпуска
-
№АртикулНазвание
-
11P0-F1600-00-00 REAR FENDER ASSY. FOR RTRREAR FENDER ASSY. FOR RTR
-
11P0-F1600-10-00 REAR FENDER ASSY. FOR PDGREAR FENDER ASSY. FOR PDG
-
11P0-F1600-20-00 REAR FENDER ASSY. FOR DPBSNREAR FENDER ASSY. FOR DPBSN
-
290119-06227-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
390119-06060-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
490467-16195-00 CLIP, SCISSORCLIP, SCISSOR
-
55BF-1443E-00-00 PIPE, DRAINPIPE, DRAIN
-
61P0-F1651-00-00 COVER, REAR FENDER FOR RTRCOVER, REAR FENDER FOR RTR
-
61P0-F1651-10-00 COVER, REAR FENDER FOR PDGCOVER, REAR FENDER FOR PDG
-
61P0-F1651-50-00 COVER, REAR FENDER FOR DPBSNCOVER, REAR FENDER FOR DPBSN
-
71P0-F1649-00-00 DAMPERDAMPER
-
81P0-F4285-00-00 CLAMP, DAMPERCLAMP, DAMPER
