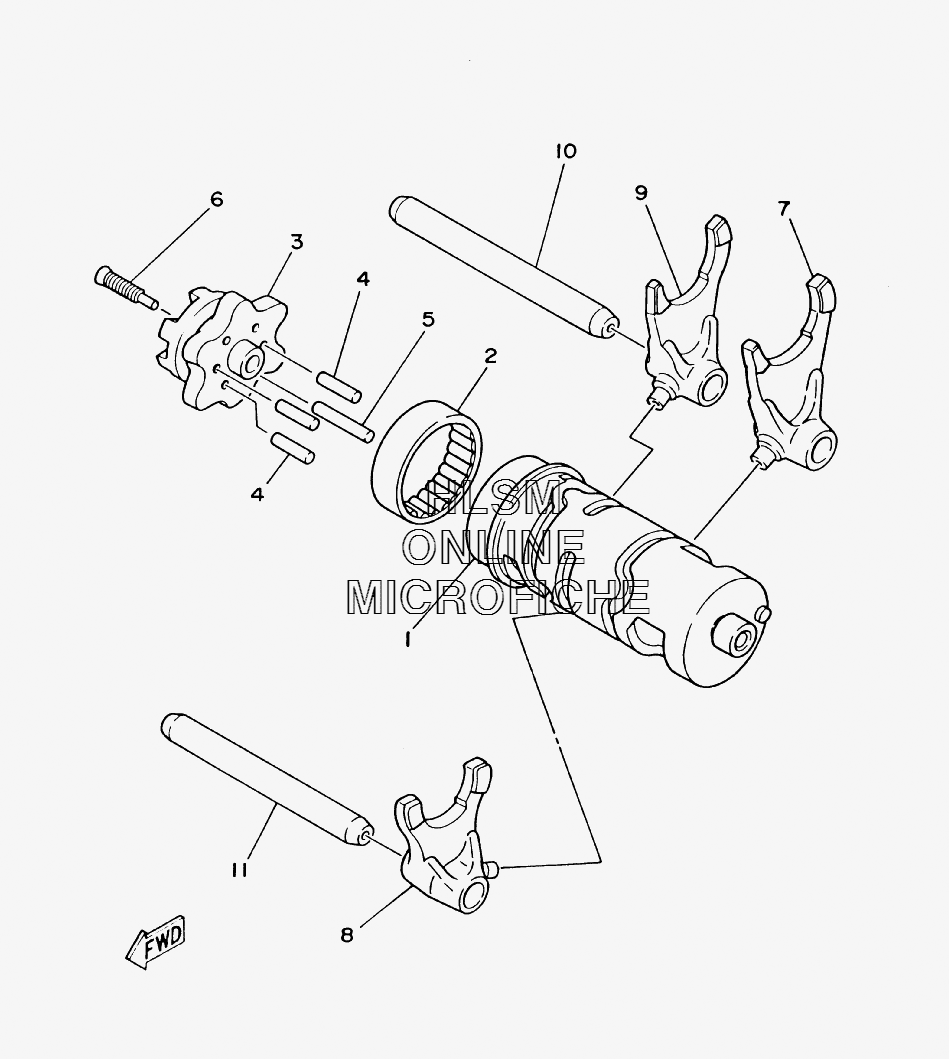

SHIFT CAM W/ FORK для Yamaha BIG BEAR 250 - 2007 года выпуска
-
№АртикулНазвание
-
152G-18540-01-00 SHIFT CAM ASSYSHIFT CAM ASSY
-
293315-23607-00 BEARING, CYL.#15BEARING, CYL.#15
-
35XG-E8185-00-00 SEGMENTSEGMENT
-
493604-16092-00 PIN, DOWELPIN, DOWEL
-
593604-20156-00 PIN, DOWELPIN, DOWEL
-
690151-06013-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
75XG-E8513-00-00 FORK, SHIFT 3FORK, SHIFT 3
-
85XG-E8511-00-00 FORK, SHIFT 1FORK, SHIFT 1
-
95XG-E8512-00-00 FORK, SHIFT 2FORK, SHIFT 2
-
105XG-E8531-00-00 BAR, SHIFT FORK GUIDE 1BAR, SHIFT FORK GUIDE 1
-
115XG-E8535-00-00 BAR, SHIFT FORK GUIDE 2BAR, SHIFT FORK GUIDE 2
