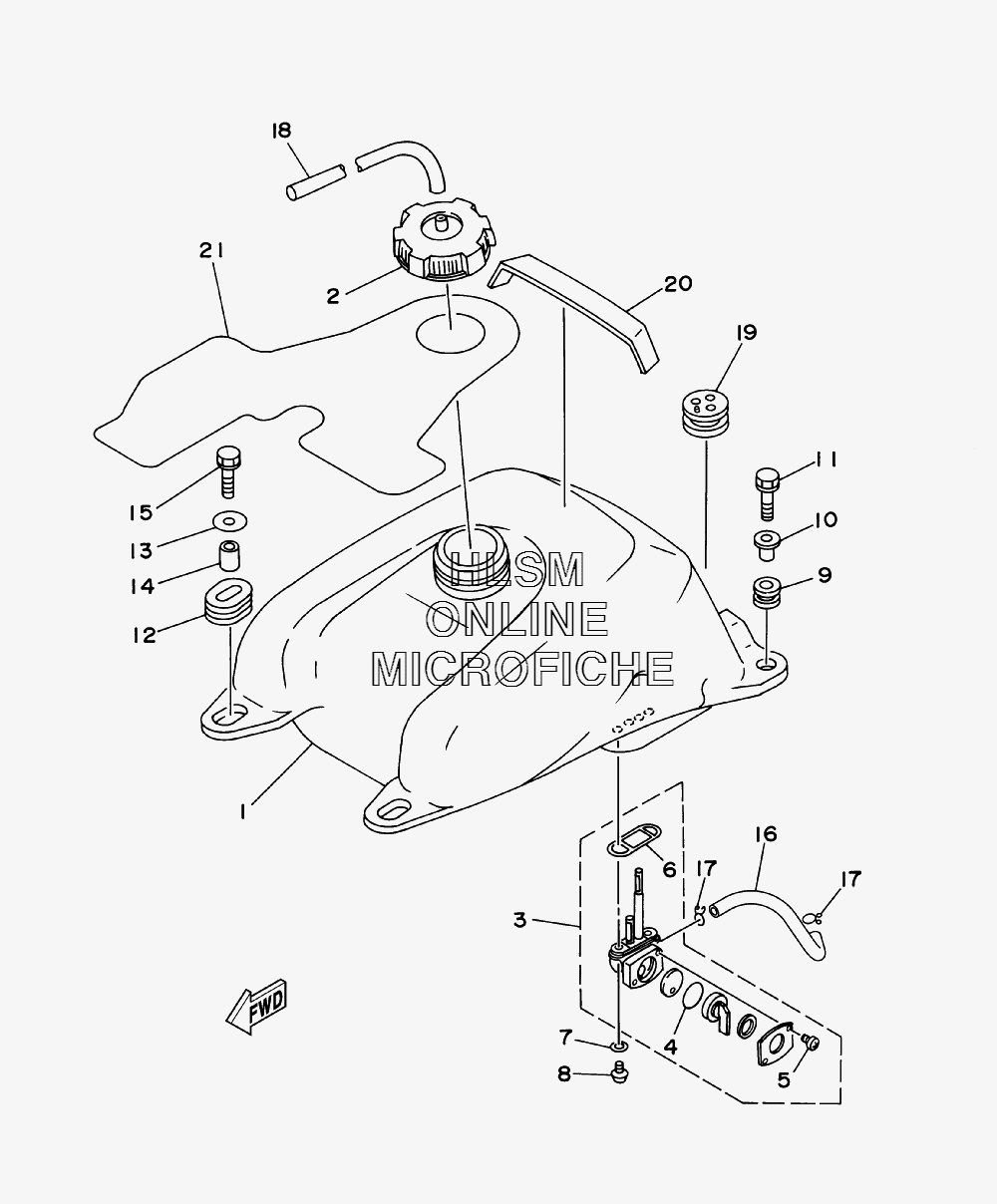

FUEL TANK для Yamaha BIG BEAR 250 - 2007 года выпуска
-
№АртикулНазвание
-
14XE-F4110-00-00 FUEL TANK COMP.FUEL TANK COMP.
-
25KM-24610-00-00 CAP ASSYCAP ASSY
-
33JN-24500-02-00 FUEL COCK ASSY 1FUEL COCK ASSY 1
-
43AJ-24534-01-00 ...SEAL, COCK...SEAL, COCK
-
598507-03008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
64X8-24512-00-00 ...O-RING...O-RING
-
790202-05193-00 WASHER, PLATEWASHER, PLATE
-
890149-06011-00 SCREW, SPEC'L SHAPESCREW, SPEC'L SHAPE
-
990480-18290-00 GROMMETGROMMET
-
1090387-066J1-00 COLLARCOLLAR
-
1190119-06831-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1290480-01400-00 GROMMETGROMMET
-
1390201-060L5-00 WASHER, PLATEWASHER, PLATE
-
1490387-07598-00 COLLARCOLLAR
-
1590119-06831-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
161P0-24311-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
1790467-10008-00 CLIP, SCISSORCLIP, SCISSOR
-
1890445-08809-00 HOSE (L500)HOSE (L500)
-
194BD-24339-00-00 GROMMETGROMMET
-
204XE-F4181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
214XE-F414H-00-00 DAMPER, PLATE 1DAMPER, PLATE 1
