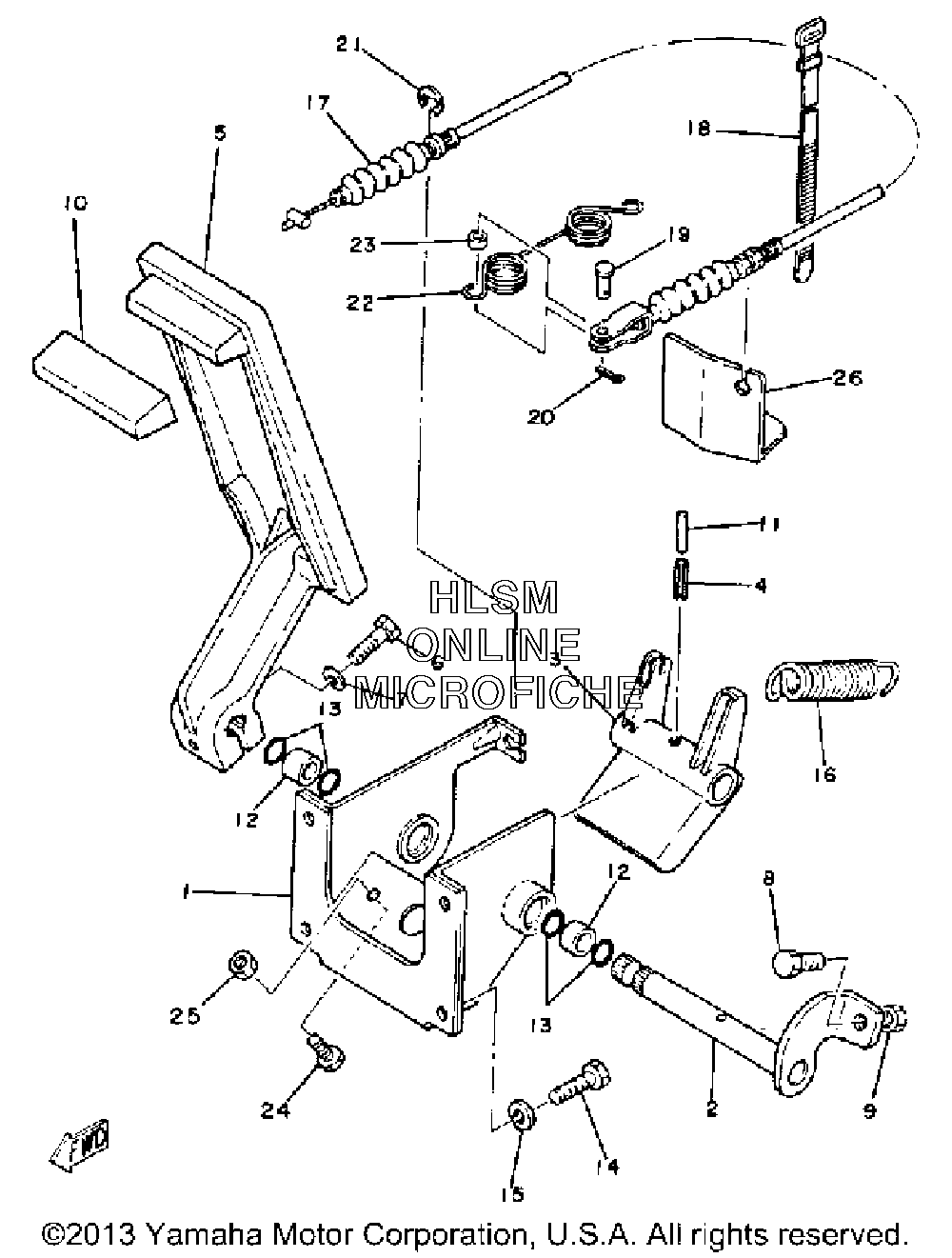

ACCELERATOR для Yamaha GOLF CAR GAS [G1A3] (J17) - 1982 года выпуска
-
№АртикулНазвание
-
1J17-27874-00-00 BRACKET, ACCELERATOR PEDALBRACKET, ACCELERATOR PEDAL
-
2J17-27853-00-00 SHAFT, PEDAL 1SHAFT, PEDAL 1
-
3J17-27872-00-00 ARM, ACCELERATOR PEDALARM, ACCELERATOR PEDAL
-
491609-60025-00 PIN, SPRINGPIN, SPRING
-
5JF3-27871-00-00 PEDAL, ACCELERATORPEDAL, ACCELERATOR
-
697011-06025-00 BOLT (97001-06025-00)BOLT (97001-06025-00)
-
792995-06100-00 WASHER, SPRINGWASHER, SPRING
-
890106-08040-00 BOLTBOLT
-
995303-08700-00 NUTNUT
-
10J10-27852-00-00 CUP 1CUP 1
-
1191609-35028-00 PIN, SPRINGPIN, SPRING
-
1290384-14080-00 BUSH, BIMETAL FORMEDBUSH, BIMETAL FORMED
-
1393210-14104-00 O-RINGO-RING
-
1497301-06014-00 BOLT, HEXAGONBOLT, HEXAGON
-
1592995-06100-00 WASHER, SPRINGWASHER, SPRING
-
1690506-26282-00 SPRING, TENSIONSPRING, TENSION
-
17J17-26311-00-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
1825G-83936-01-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
1991702-05012-00 PINPIN
-
2091490-16020-00 PIN, COTTERPIN, COTTER
-
2199080-07600-00 CIRCLIPCIRCLIP
-
2290508-16460-00 SPRING, TORSIONSPRING, TORSION
-
2390560-05001-00 SPACERSPACER
-
2497011-06025-00 BOLT (97001-06025-00)BOLT (97001-06025-00)
-
2595380-06700-00 NUTNUT
-
26J10-27981-00-00 BRACKET, THROTTLEBRACKET, THROTTLE
