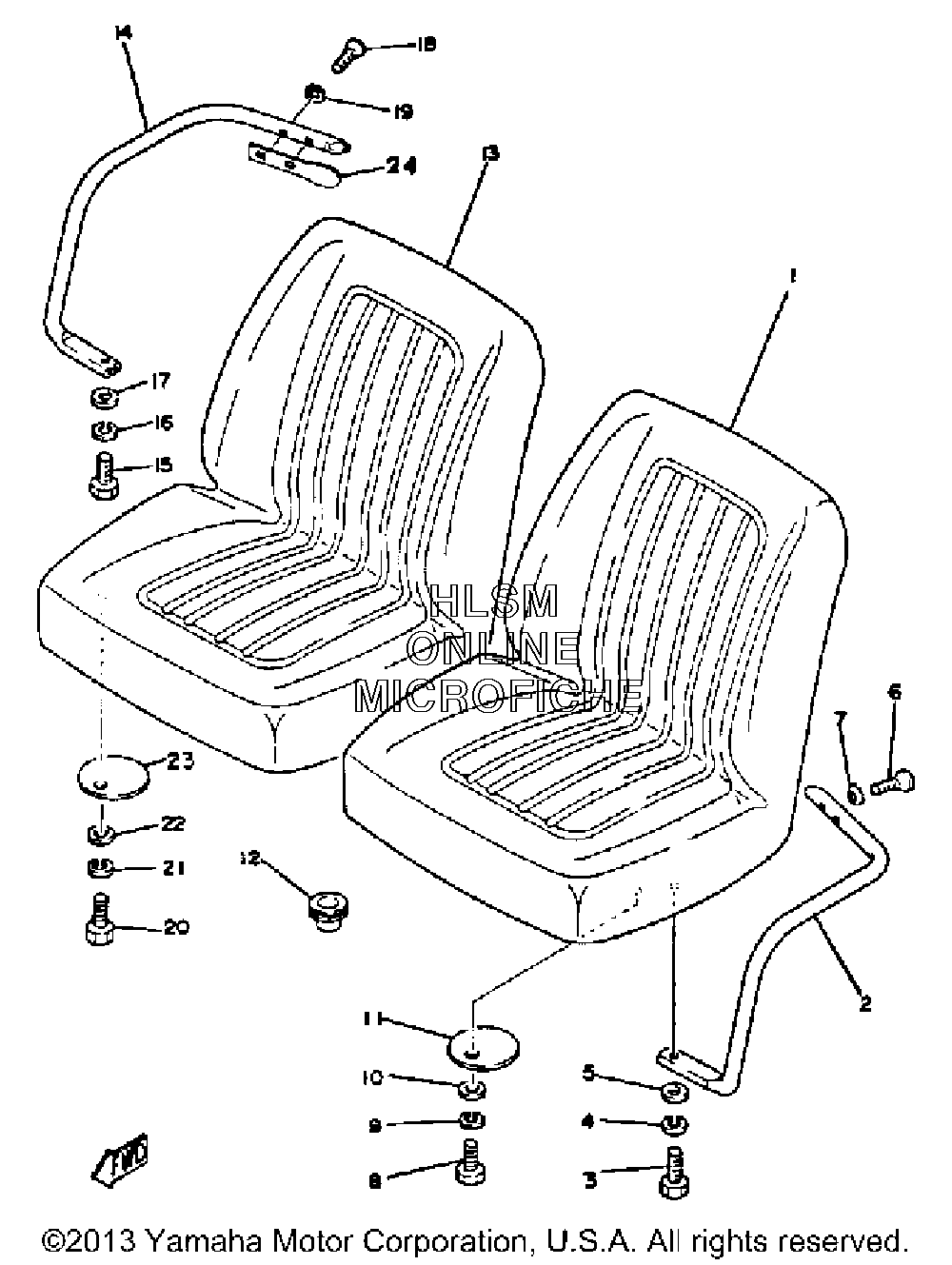

SEAT для Yamaha GOLF CAR GAS [G1A3] (J17) - 1982 года выпуска
-
№АртикулНазвание
-
1J10-78401-04-00 GOLF CAR SEAT (L) (J10-78401-02-00)GOLF CAR SEAT (L) (J10-78401-02-00)
-
2J10-78361-00-00 ARM REST 1ARM REST 1
-
397013-10030-00 BOLT (8J7) (97303-10030-00)BOLT (8J7) (97303-10030-00)
-
492990-10100-00 WASHER, SPRINGWASHER, SPRING
-
592990-10600-00 WASHER, PLATEWASHER, PLATE
-
698680-08035-00 SCREW, OVALHEADSCREW, OVALHEAD
-
792990-08500-00 WASHER, EX.TOOTH (92901-08500-00)WASHER, EX.TOOTH (92901-08500-00)
-
897001-08025-00 BOLT (1NV)BOLT (1NV)
-
992990-08100-00 WASHER, SPRINGWASHER, SPRING
-
1090201-08310-00 WASHER, PLATEWASHER, PLATE
-
11J10-78439-00-00 WASHER, SEATWASHER, SEAT
-
1290480-42282-00 GROMMETGROMMET
-
13J10-78403-04-00 SEAT SUB-ASSEMBLY, CUSHION 2 (99999-01263-00)SEAT SUB-ASSEMBLY, CUSHION 2 (99999-01263-00)
-
14J10-78362-00-93 ARM REST 2ARM REST 2
-
1597013-10030-00 BOLT (8J7) (97303-10030-00)BOLT (8J7) (97303-10030-00)
-
1692990-10100-00 WASHER, SPRINGWASHER, SPRING
-
1792990-10600-00 WASHER, PLATEWASHER, PLATE
-
1898680-08035-00 SCREW, OVALHEADSCREW, OVALHEAD
-
1992990-08500-00 WASHER, EX.TOOTH (92901-08500-00)WASHER, EX.TOOTH (92901-08500-00)
-
2097001-08025-00 BOLT (1NV)BOLT (1NV)
-
2192990-08100-00 WASHER, SPRINGWASHER, SPRING
-
2290201-08310-00 WASHER, PLATEWASHER, PLATE
-
23J10-78439-00-00 WASHER, SEATWASHER, SEAT
-
24J17-78348-00-00 SPACER, ARM RESTSPACER, ARM REST
