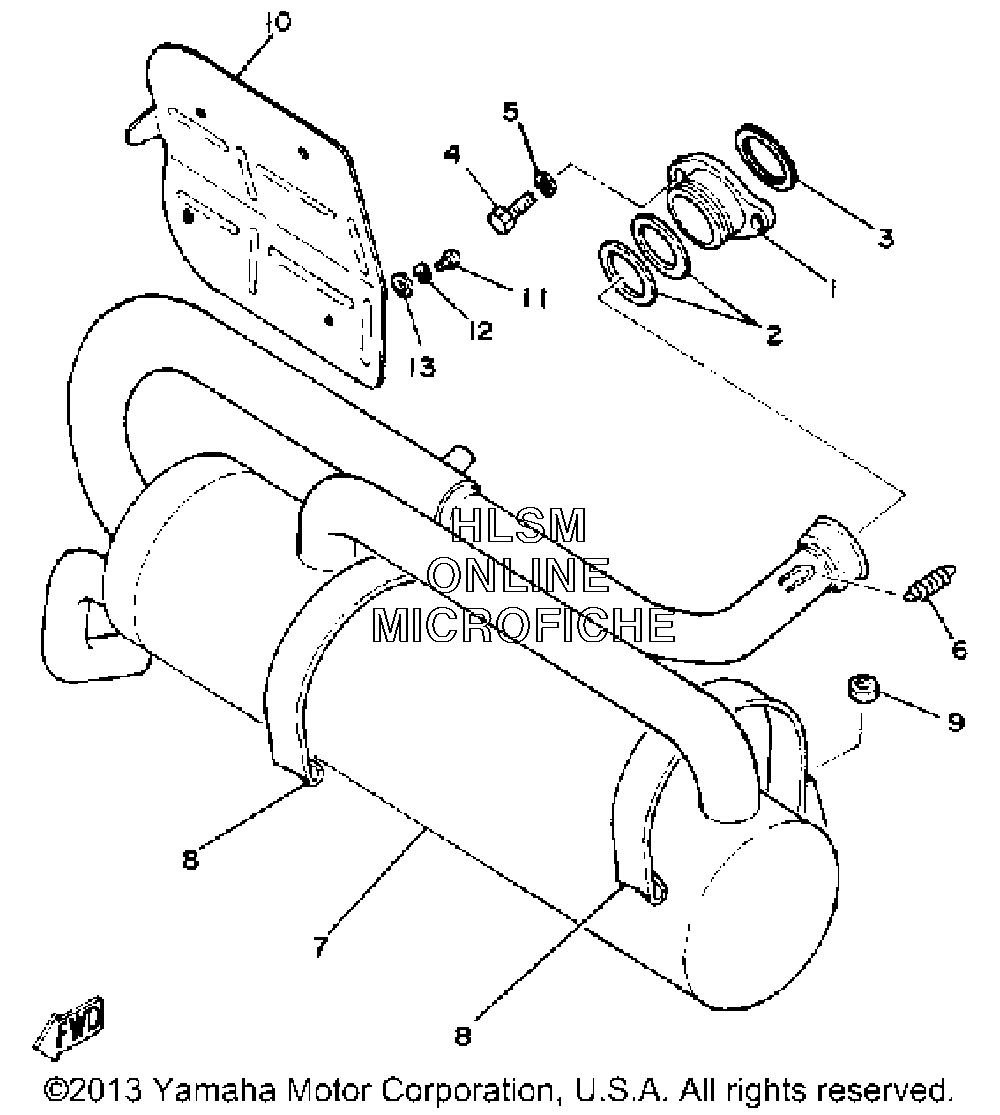

EXHAUST для Yamaha GOLF CAR GAS [G1A3] (J17) - 1982 года выпуска
-
№АртикулНазвание
-
181E-14612-00-00 NUT, RINGNUT, RING
-
2888-14633-00-00 RINGRING
-
38F3-14613-00-00 GASKET, EXAUST PIPEGASKET, EXAUST PIPE
-
497013-08025-00 BOLTBOLT
-
592990-08100-00 WASHER, SPRINGWASHER, SPRING
-
690506-20074-00 SPRING, TENSIONSPRING, TENSION
-
7J17-14610-01-00 EXHAUST PIPE ASSEMBLY L (J17-14610-00-00)EXHAUST PIPE ASSEMBLY L (J17-14610-00-00)
-
8J10-14715-01-00 BAND, MUFFLERBAND, MUFFLER
-
995611-08100-00 NUT, UNUT, U
-
10J17-1468U-00-00 PLATE, SILENCERPLATE, SILENCER
-
1198580-05012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1292990-05100-00 WASHER, SPRINGWASHER, SPRING
-
1390201-06074-00 WASHER, PLATEWASHER, PLATE
