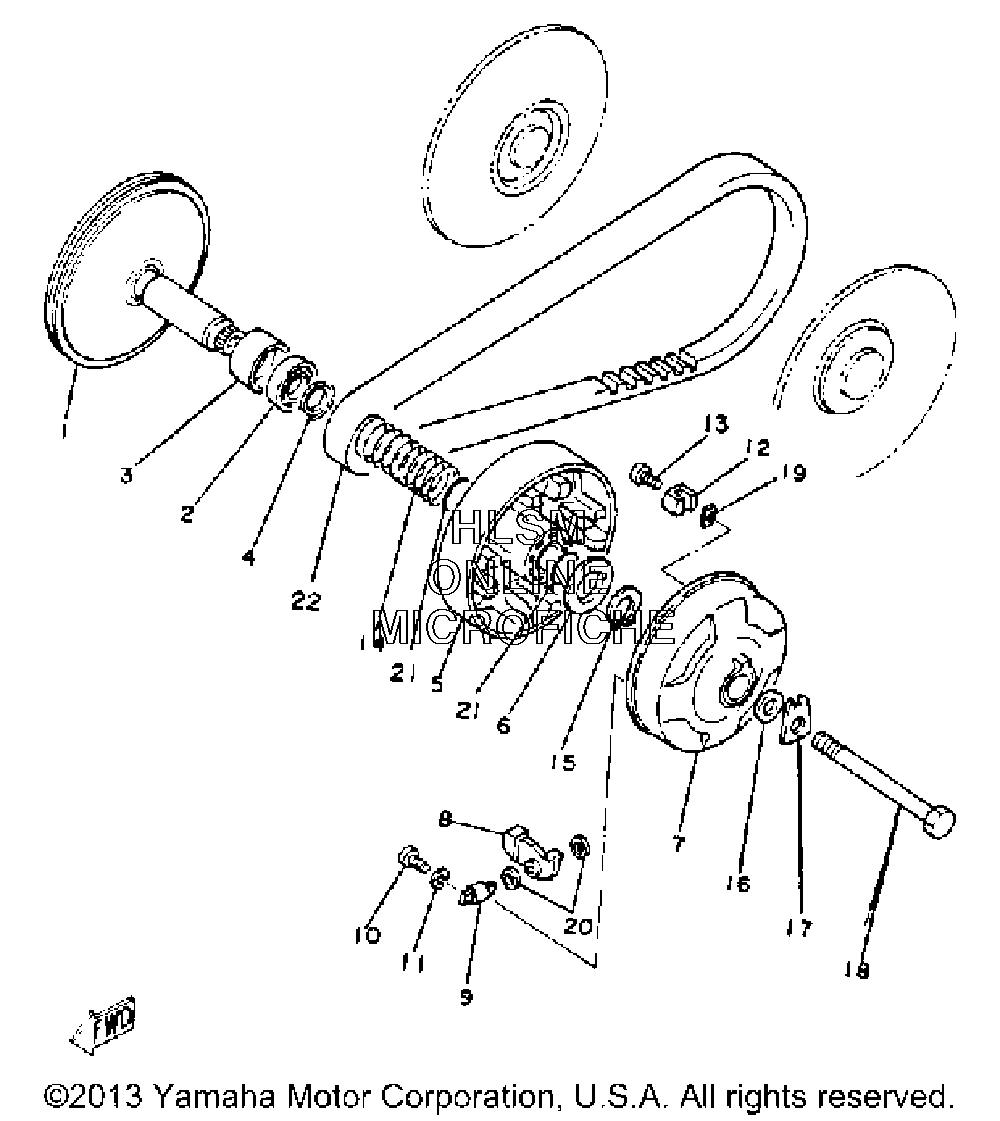

PRIMARY SHEAVE для Yamaha GOLF CAR GAS [G1A3] (J17) - 1982 года выпуска
-
№АртикулНазвание
-
1J10-46210-00-00 PRI FIXED SHEAVE COMPPRI FIXED SHEAVE COMP
-
293306-90601-00 BEARINGBEARING
-
390387-47686-00 COLLARCOLLAR
-
4J10-46244-00-00 SEAT, SPRINGSEAT, SPRING
-
5J10-46220-01-00 PRIMARY SLIDING SHEAVE COMPPRIMARY SLIDING SHEAVE COMP
-
6J10-46223-01-00 CAMCAM
-
7J17-46230-00-00 PRIMARY SHEAVE CAP COMPPRIMARY SHEAVE CAP COMP
-
8J10-46232-00-00 WEIGHT 1WEIGHT 1
-
9J10-46236-00-00 PIN, WEIGHTPIN, WEIGHT
-
1098580-05020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1192990-05100-00 WASHER, SPRINGWASHER, SPRING
-
12J10-46253-01-00 SLIDERSLIDER
-
1390149-05129-00 SCREWSCREW
-
1490501-32696-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1599009-28400-00 CIRCLIPCIRCLIP
-
1690560-12180-00 SPACERSPACER
-
1790215-13146-00 WASHER, LOCKWASHER, LOCK
-
18J10-46249-00-00 BOLTBOLT
-
19J17-46254-00-00 DAMPER SPACERDAMPER SPACER
-
2090202-10129-00 WASHER, PLATEWASHER, PLATE
-
2193210-27458-00 O-RINGO-RING
-
22J17-46241-00-00 BELTBELT
