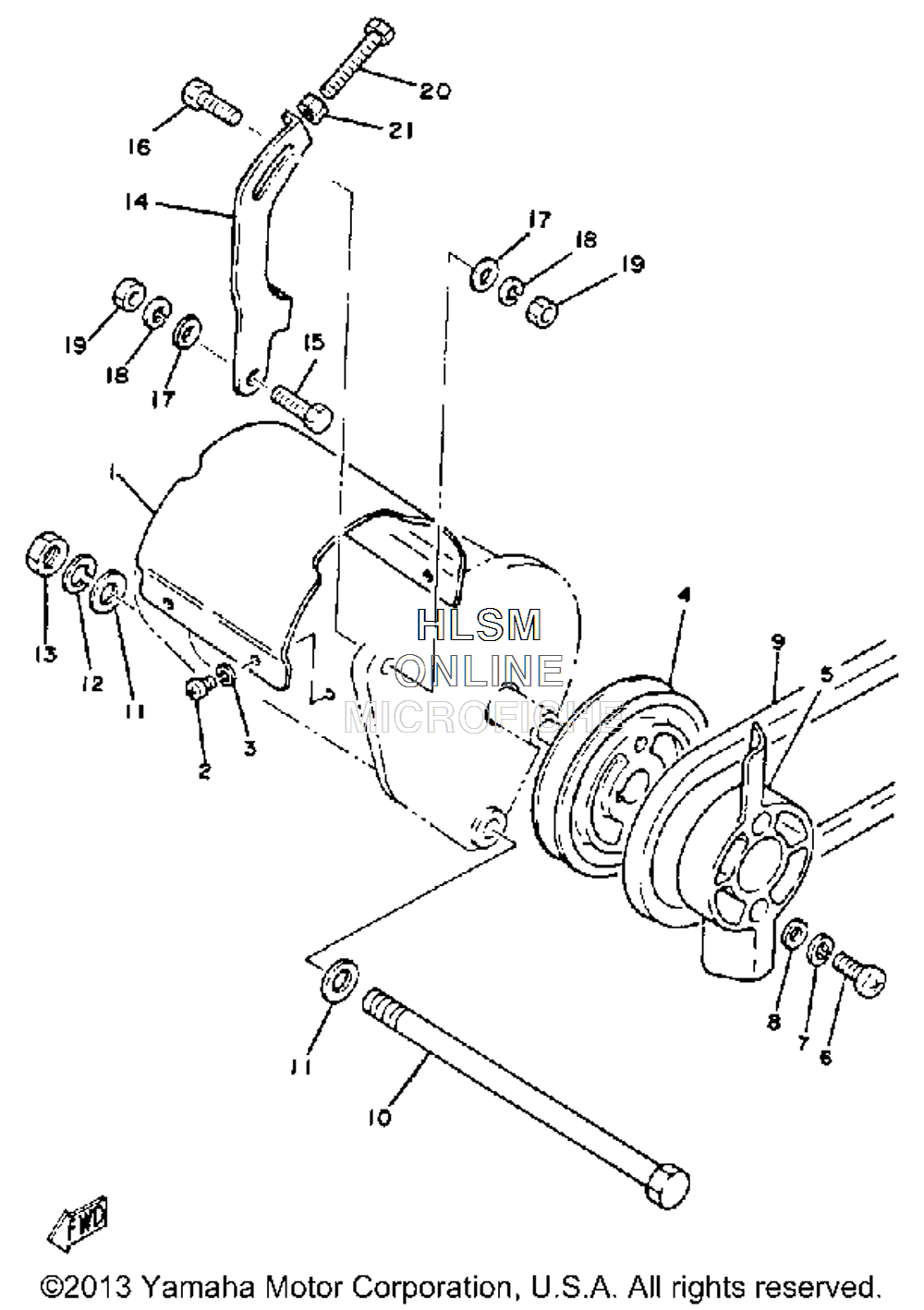

STARTER PULLEY для Yamaha GOLF CAR GAS [G1A3] (J17) - 1982 года выпуска
-
№АртикулНазвание
-
1J17-87183-00-00 INSULATOR, GENINSULATOR, GEN
-
298580-05010-00 SCREW, PAN HEADSCREW, PAN HEAD
-
392990-05100-00 WASHER, SPRINGWASHER, SPRING
-
4J10-81161-01-00 PULLEYPULLEY
-
5J10-87172-00-00 FAN, GENERATORFAN, GENERATOR
-
698511-06025-00 SCREW PAN HEAD (92501-06025-00)SCREW PAN HEAD (92501-06025-00)
-
792995-06100-00 WASHER, SPRINGWASHER, SPRING
-
892901-06600-00 WASHERWASHER
-
9J10-81173-00-XX BELTBELT
-
1090101-12545-00 BOLTBOLT
-
1192990-12600-00 WASHER, PLATEWASHER, PLATE
-
1292901-12100-00 WASHER, SPRINGWASHER, SPRING
-
1395303-12600-00 NUTNUT
-
14J17-81170-00-00 TENSIONER ASSEMBLY (92902-08100-00)TENSIONER ASSEMBLY (92902-08100-00)
-
1597001-08025-00 BOLT (1NV)BOLT (1NV)
-
1690109-08653-00 BOLT, HEXAGONBOLT, HEXAGON
-
1792901-08600-00 WASHERWASHER
-
1892990-08100-00 WASHER, SPRINGWASHER, SPRING
-
1995333-08600-00 NUTNUT
-
2090101-06410-00 BOLTBOLT
-
2195380-06700-00 NUTNUT
