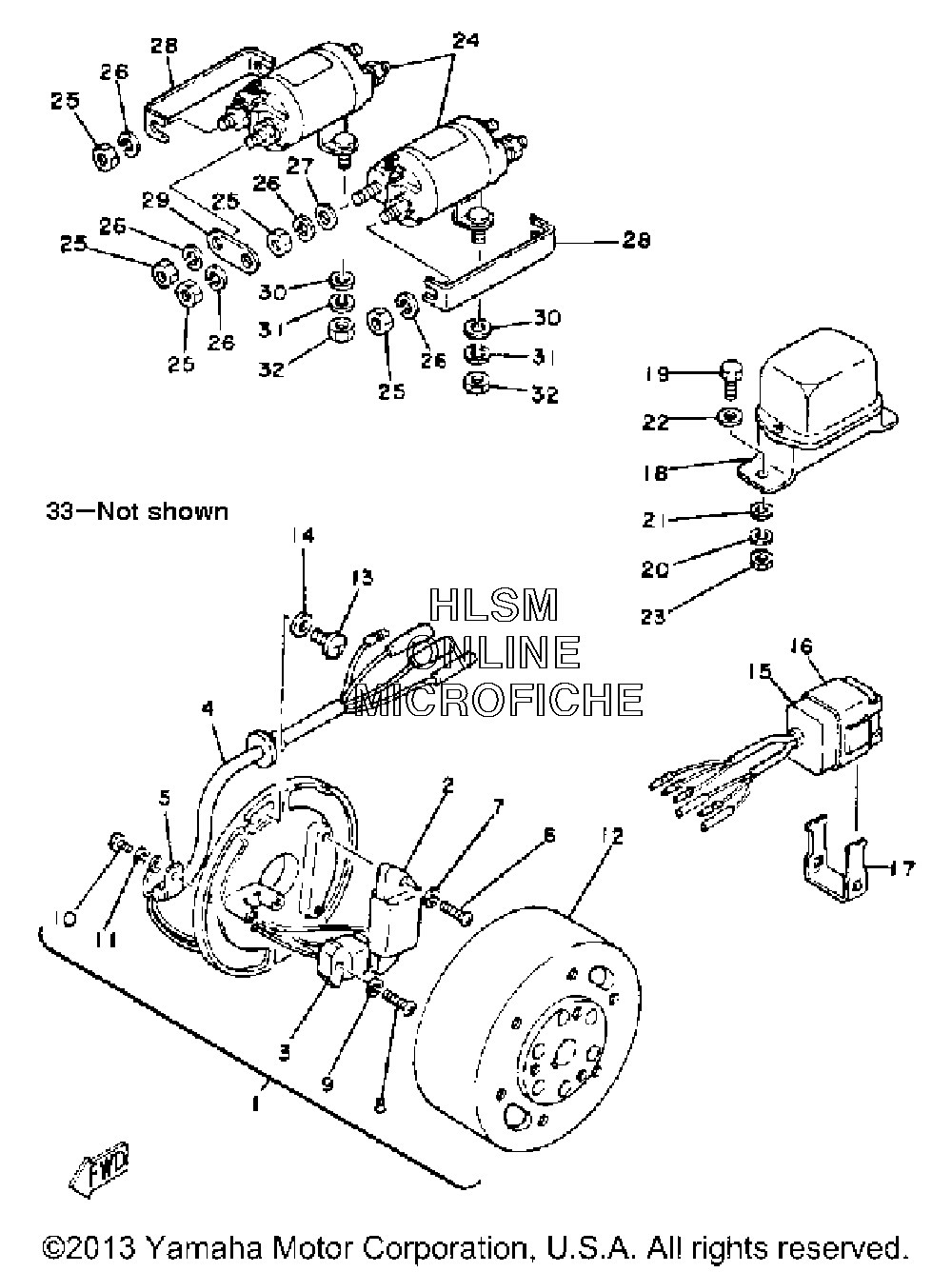

CDI MAGNETO для Yamaha GOLF CAR GAS [G1A3] (J17) - 1982 года выпуска
-
№АртикулНазвание
-
1J10-85500-20-00 CDI MAGNETO ASSEMBLYCDI MAGNETO ASSEMBLY
-
28G8-85511-20-00 ...COIL SOURCE 1...COIL SOURCE 1
-
3J10-85580-20-00 ...COIL, PULSER...COIL, PULSER
-
4J10-85515-20-00 ...LEAD WIRE ASSEMBLY...LEAD WIRE ASSEMBLY
-
5104-81328-20-00 ...CLAMP...CLAMP
-
698580-05020-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
792990-05100-00 ...WASHER, SPRING...WASHER, SPRING
-
898511-04020-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
992901-04100-00 ...WASHER, SPRING...WASHER, SPRING
-
1098580-04008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1192901-04100-00 ...WASHER, SPRING...WASHER, SPRING
-
12J10-85550-20-00 ...ROTOR ASSEMBLY...ROTOR ASSEMBLY
-
1398903-06014-00 SCREW, BINDSCREW, BIND
-
1490201-06043-00 WASHER, PLATEWASHER, PLATE
-
15J10-85540-20-00 CDI UNIT ASSEMBLYCDI UNIT ASSEMBLY
-
162A7-85546-00-00 BANDBAND
-
1782M-21245-00-00 BOXBOX
-
18J10-81910-10-00 VOLTAGE REG ASSEMBLYVOLTAGE REG ASSEMBLY
-
1997313-06016-00 BOLT, HEXAGONBOLT, HEXAGON
-
2092995-06100-00 WASHER, SPRINGWASHER, SPRING
-
2192901-06600-00 WASHERWASHER
-
2290201-06043-00 WASHER, PLATEWASHER, PLATE
-
2395380-06600-00 NUT, HEXAGONNUT, HEXAGON
-
24J17-81950-01-00 RELAY ASSEMBLYRELAY ASSEMBLY
-
2595303-08700-00 ...NUT...NUT
-
2692990-08100-00 ...WASHER, SPRING...WASHER, SPRING
-
2792901-08600-00 ...WASHER...WASHER
-
28J17-86126-00-00 PLATE, CONNECTING 1PLATE, CONNECTING 1
-
29J17-86127-00-00 PLATE, CONNECTING 2PLATE, CONNECTING 2
-
3092990-08200-00 WASHER, PLAINWASHER, PLAIN
-
3192990-08100-00 WASHER, SPRINGWASHER, SPRING
-
3295333-08600-00 NUTNUT
-
33J17-81920-19-00 SOLENOID REBUILD KIT (NOT SHOWN)SOLENOID REBUILD KIT (NOT SHOWN)
