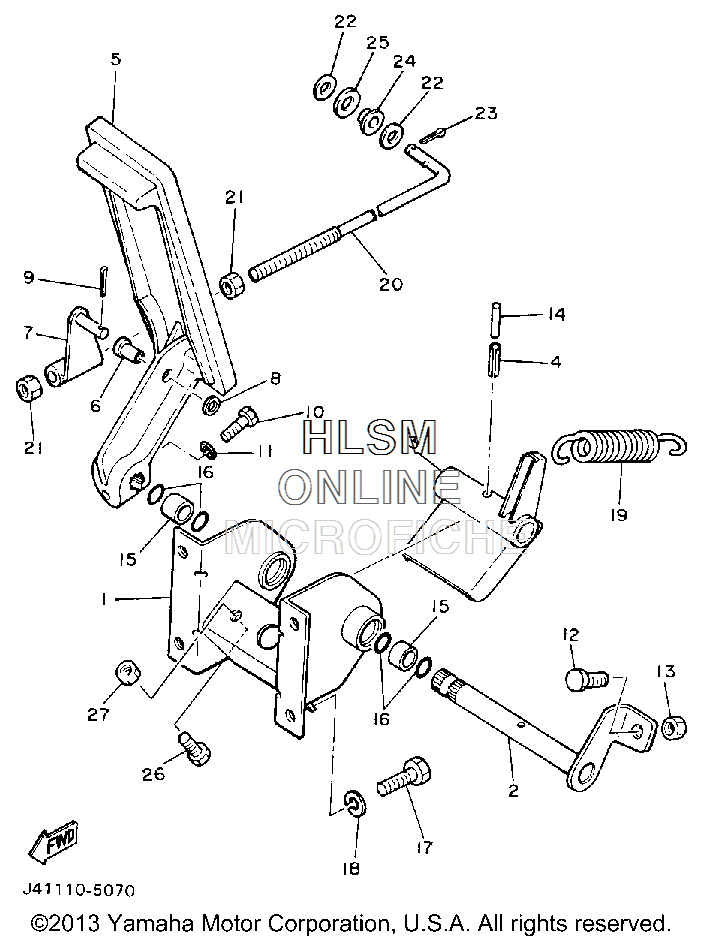

ACCELERATOR для Yamaha GOLF CAR ELECTRIC [G9EH1] (JG6) - 1992 года выпуска
-
№АртикулНазвание
-
1J41-27874-00-00 BRACKET, ACCELERATOR PEDALBRACKET, ACCELERATOR PEDAL
-
2J17-27853-00-00 SHAFT, PEDAL 1SHAFT, PEDAL 1
-
3J22-27872-00-00 ARM, ACCELERATOR PEDALARM, ACCELERATOR PEDAL
-
491609-60028-00 PIN, SPRINGPIN, SPRING
-
5JF3-27871-00-00 PEDAL, ACCELERATORPEDAL, ACCELERATOR
-
690381-06033-00 BUSH, SOLIDBUSH, SOLID
-
7J14-27815-00-00 LEVER, CRANK PEDALLEVER, CRANK PEDAL
-
892990-06600-00 WASHER, PLATEWASHER, PLATE
-
991490-20015-00 PIN. COTTERPIN. COTTER
-
1097011-06025-00 BOLTBOLT
-
1192995-06100-00 WASHER, SPRINGWASHER, SPRING
-
1290106-08040-00 BOLTBOLT
-
1395303-08700-00 NUTNUT
-
1491609-35028-00 PIN, SPRINGPIN, SPRING
-
1590384-14080-00 BUSH, BIMETAL FORMEDBUSH, BIMETAL FORMED
-
1693210-14104-00 O-RINGO-RING
-
1797011-06016-00 BOLTBOLT
-
1892995-06100-00 WASHER, SPRINGWASHER, SPRING
-
1990506-29283-00 SPRING, TENSIONSPRING, TENSION
-
20J14-27241-00-00 ROD, JOINTROD, JOINT
-
2195303-08700-00 NUTNUT
-
2290201-07077-00 WASHER, PLATEWASHER, PLATE
-
2391401-25020-00 PIN, COTTERPIN, COTTER
-
2490386-07100-00 BUSHBUSH
-
2590202-10116-00 WASHER, PLATEWASHER, PLATE
-
2697011-06025-00 BOLTBOLT
-
2795380-06700-00 NUTNUT
