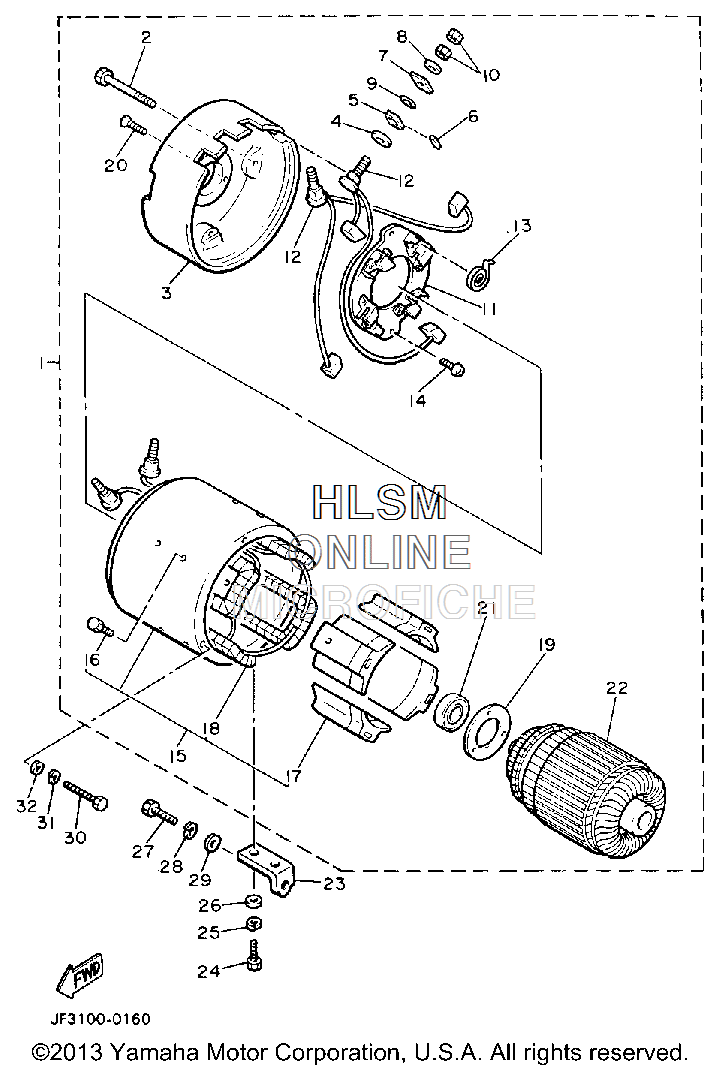

STARTING MOTOR для Yamaha GOLF CAR ELECTRIC [G9EH1] (JG6) - 1992 года выпуска
-
№АртикулНазвание
-
1JG6-H1890-01-00 MOTOR ASSEMBLY (JG6-H1890-00-00)MOTOR ASSEMBLY (JG6-H1890-00-00)
-
2J56-H1828-00-00 ...BOLT 2...BOLT 2
-
3J56-H1822-00-00 ...BRACKET, STARTING MOTOR...BRACKET, STARTING MOTOR
-
4J56-H1824-00-00 ...WASHER 2...WASHER 2
-
5J56-H182G-00-00 ...BUSH, TERMINAL...BUSH, TERMINAL
-
6J56-H1861-00-00 ...GASKET...GASKET
-
7J56-H1843-00-00 ...WASHER 1...WASHER 1
-
8J56-H1894-00-00 ...WASHER, SPECIAL...WASHER, SPECIAL
-
9J56-H1847-00-00 ...O-RING...O-RING
-
10J56-H182A-00-00 ...NUT...NUT
-
11J56-H1840-00-00 ...BRUSH HOLDER ASSEMBLY...BRUSH HOLDER ASSEMBLY
-
12J56-H1801-00-00 ...BRUSH SET...BRUSH SET
-
13J56-H1813-00-00 ...SPRING, BRUSH...SPRING, BRUSH
-
14J56-H1848-00-00 ...SCREW, BRUSH HOLDER...SCREW, BRUSH HOLDER
-
15JG6-H1810-10-00 ...STATOR ASSEMBLY...STATOR ASSEMBLY
-
16J56-H1826-00-00 ......BOLT......BOLT
-
17J56-H135G-00-00 ......POLE PIECE......POLE PIECE
-
18J56-H1160-00-00 ......FIELD COIL ASSEMBLY......FIELD COIL ASSEMBLY
-
19J56-H1856-00-00 ...RETAINER...RETAINER
-
20J56-H1846-00-00 ...SCREW...SCREW
-
21J56-H1857-00-00 ...BEARING...BEARING
-
22J56-H1850-00-00 ...ARMATURE...ARMATURE
-
23J14-81823-01-00 STAY, STARTING MOTOR (J14-81823-00-00)STAY, STARTING MOTOR (J14-81823-00-00)
-
2497011-06016-00 BOLTBOLT
-
2592990-06100-00 WASHER, SPRINGWASHER, SPRING
-
2692990-06600-00 WASHER, PLATEWASHER, PLATE
-
2797011-08016-00 BOLTBOLT
-
2892990-08100-00 WASHER, SPRINGWASHER, SPRING
-
2992990-08600-00 WASHER, PLATEWASHER, PLATE
-
3097313-06055-00 BOLT, HEXAGONBOLT, HEXAGON
-
3192995-06100-00 WASHER, SPRINGWASHER, SPRING
-
3290201-06643-00 WASHER, PLATEWASHER, PLATE
