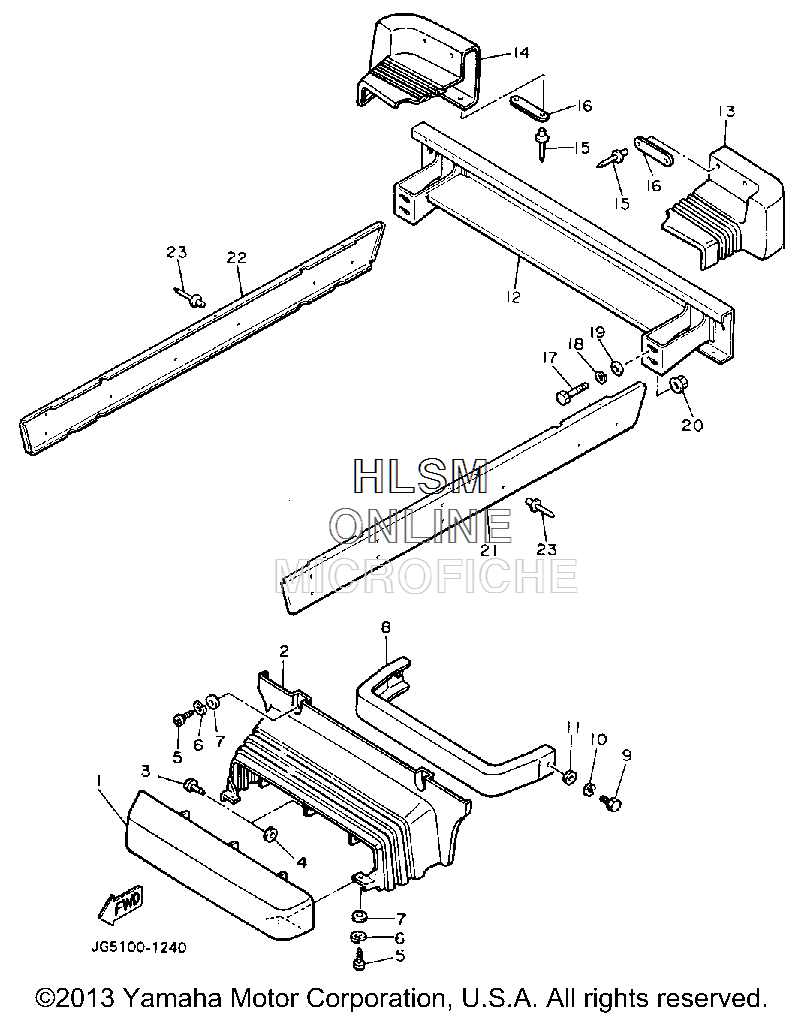

BUMPER для Yamaha GOLF CAR ELECTRIC [G9EH1] (JG6) - 1992 года выпуска
-
№АртикулНазвание
-
1J55-K8162-00-00 PAD, FRONT BUMPERPAD, FRONT BUMPER
-
2J55-K8163-00-00 COVER, BUMPERCOVER, BUMPER
-
390269-06028-00 RIVETRIVET
-
490201-076J4-00 WASHER, PLATEWASHER, PLATE
-
598506-05020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
692906-05100-00 WASHER, SPRINGWASHER, SPRING
-
790201-05033-00 WASHER, PLATEWASHER, PLATE
-
8J55-K7511-00-00 BUMPER, FRONT 1BUMPER, FRONT 1
-
997011-08016-00 BOLTBOLT
-
1092990-08100-00 WASHER, SPRINGWASHER, SPRING
-
1192990-08600-00 WASHER, PLATEWASHER, PLATE
-
12JG5-K8107-00-00 BUMPER SUB-ASSEMBLY, REARBUMPER SUB-ASSEMBLY, REAR
-
13J55-K8167-00-00 BUMPER, RUBBER 1BUMPER, RUBBER 1
-
14J55-K8168-00-00 BUMPER, RUBBER 2BUMPER, RUBBER 2
-
1590267-40077-00 RIVET, BLINDRIVET, BLIND
-
16J17-77525-00-00 WASHER 1WASHER 1
-
1797026-08050-00 BOLTBOLT
-
1892906-08100-00 WASHER, SPRINGWASHER, SPRING
-
1992906-08600-00 WASHERWASHER
-
2095706-08500-00 NUT, FLANGENUT, FLANGE
-
21JG5-K8183-00-00 PLATE, SIDE SILL (L.H)PLATE, SIDE SILL (L.H)
-
22JG5-K8184-00-00 PLATE, SIDE SILL (R.H)PLATE, SIDE SILL (R.H)
-
2390267-48828-00 RIVET, BLINDRIVET, BLIND
