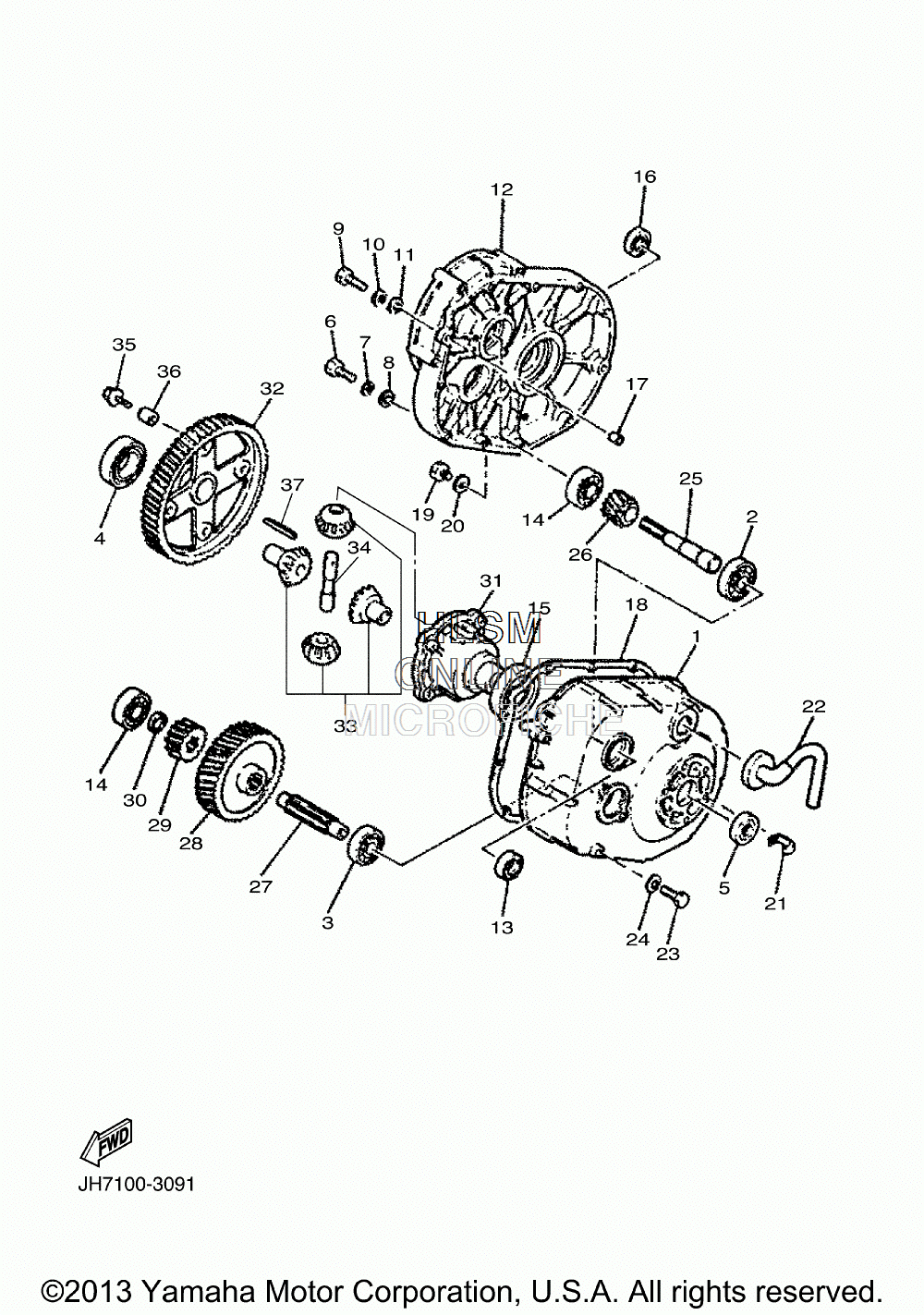

TRANSMISSION 1 для Yamaha GOLF CAR ELECTRIC [G9EH1] (JG6) - 1992 года выпуска
-
№АртикулНазвание
-
1J14-46311-00-00 CASE, TRANSMISSION 1CASE, TRANSMISSION 1
-
293306-20541-00 BEARING (B6205)BEARING (B6205)
-
393306-20421-00 BEARINGBEARING
-
493306-00803-00 BEARINGBEARING
-
593102-22189-00 OIL SEALOIL SEAL
-
697021-08035-00 BOLTBOLT
-
792990-08100-00 WASHER, SPRINGWASHER, SPRING
-
892901-08600-00 WASHERWASHER
-
997021-08045-00 BOLTBOLT
-
1092990-08100-00 WASHER, SPRINGWASHER, SPRING
-
1192901-08600-00 WASHERWASHER
-
12J14-46312-02-00 CASE, TRANSMISSION 2CASE, TRANSMISSION 2
-
1393102-20143-00 OIL SEALOIL SEAL
-
1493306-20421-00 BEARINGBEARING
-
1593306-00803-00 BEARINGBEARING
-
1693102-22189-00 OIL SEALOIL SEAL
-
1799510-12016-00 PIN, DOWELPIN, DOWEL
-
18J10-46319-01-00 GASKETGASKET
-
1990340-14036-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
2090430-14043-00 GASKETGASKET
-
2190465-06100-00 CLAMPCLAMP
-
22835-47559-00-00 CAP 2CAP 2
-
2397011-10020-00 BOLTBOLT
-
2492901-10100-00 WASHER, SPRINGWASHER, SPRING
-
25J14-46321-01-00 SHAFT, INPUTSHAFT, INPUT
-
26J56-46331-00-00 GEAR, INPUT 1GEAR, INPUT 1
-
27J10-46351-00-00 SHAFT, COUNTERSHAFT, COUNTER
-
28J56-46361-00-00 GEAR, COUNTER 1GEAR, COUNTER 1
-
29J17-46362-00-00 GEAR, COUNTER 2GEAR, COUNTER 2
-
3090201-20272-00 WASHER, PLATEWASHER, PLATE
-
31J38-46411-01-00 CASE, DIFFERENTIALCASE, DIFFERENTIAL
-
32J41-46421-00-00 GEAR, RINGGEAR, RING
-
33J38-W4640-10-00 DIFFERENTIAL GEAR & PINION SETDIFFERENTIAL GEAR & PINION SET
-
34J38-46417-02-00 PIN, DIFFERENTIALPIN, DIFFERENTIAL
-
3590105-08390-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
3691812-16001-00 PIN, DOWELPIN, DOWEL
-
3791609-40040-00 PIN, SPRINGPIN, SPRING
